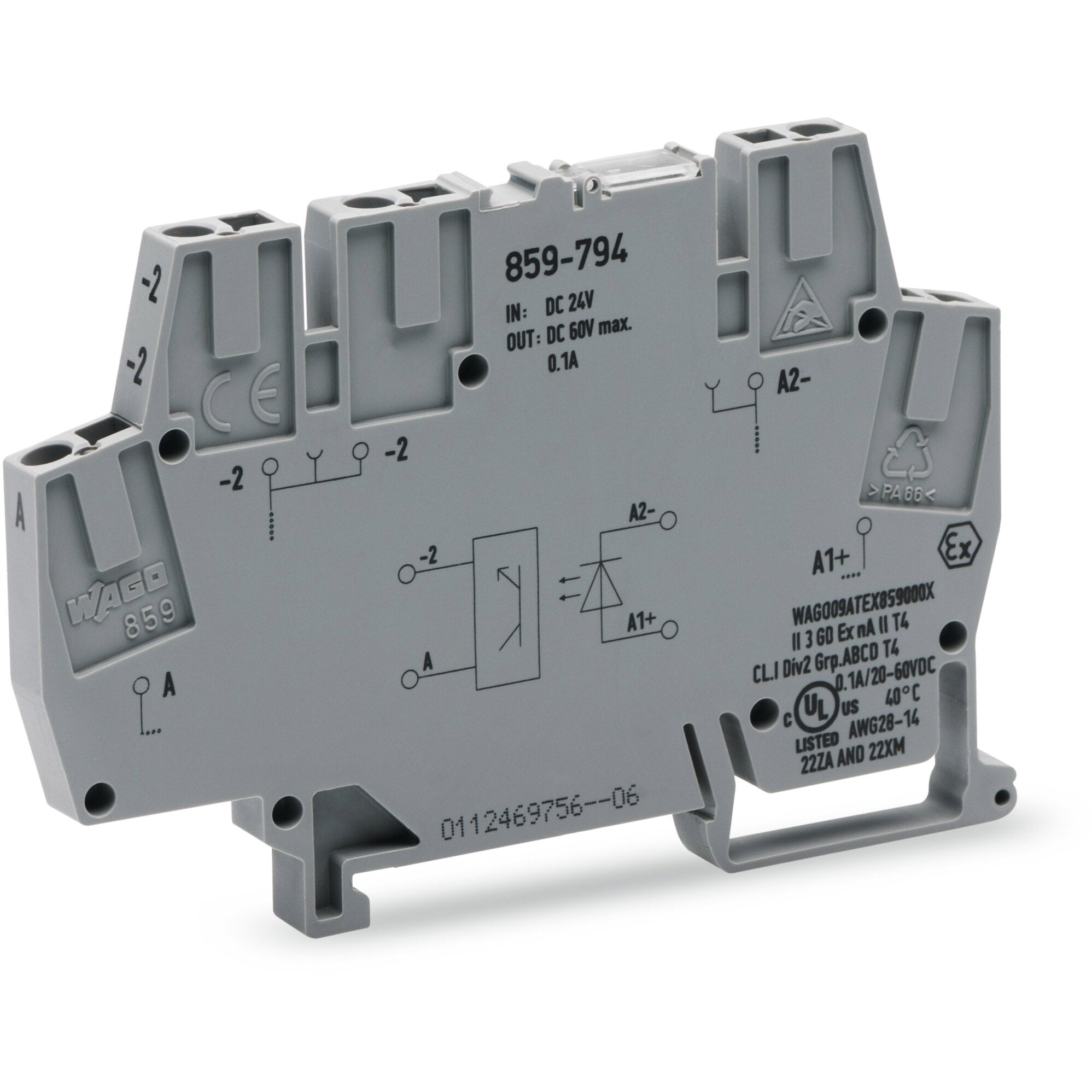

Wago - 859-794

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - for railways applications - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 16-30Vdc (24Vdc nom.) - Rated voltage 9Vdc-60Vdc output - Rated current 0.1A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859794

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|2-wire connection|for railways applications
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 1.5kHz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 0.1A (continuous)
• Rated Voltage (DC): 9Vdc-60Vdc output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 16-30Vdc (24Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 20μs / 0.00002s|(switching OFF) 120μs / 0.00012s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• ETIM code: EC001504
• Customs Tariff Number: 85365005000
• GTIN code: 4066966278989
• eClass code: 27-26-15-03
• Order code / Manufacturer SKU: 859-794
• Manufacturer product status: Commercialized
• Equivalent to: 859794
• EAN code: 4055143606325
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 50121-3-2|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|material group I|V-0 flammability rating
• Location of origin: China
• Degree of pollution: 2
• Application type: Railways applications
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4066966278989
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 97e20fec-7ef8-4308-9df4-b9beadf1ef91
• SCIP notification number (Belgium): afaadc22-038e-4c5d-ac39-69df25e85c26
• SCIP notification number (Bulgaria): 93632ac1-b492-4946-9ed7-377e0daaed60
• SCIP notification number (Czech Republic): b9cd1975-f211-470e-b780-095c63e5f498
• SCIP notification number (Denmark): dee75a1a-c78d-4336-b2de-81d6bff7d37a
• SCIP notification number (Finland): f2bcdbd1-947a-4580-b997-80bd91b96611
• SCIP notification number (France): efa2c40b-aac0-4647-8b02-79ce02e41cee
• SCIP notification number (Germany): cc674ec4-4da2-402f-872f-414caffff011
• SCIP notification number (Hungary): ba812f41-53db-45a6-b453-93d6ef534a9b
• SCIP notification number (Italy): e7f6eb14-bc4e-46df-b8d3-7fbebba411b7
• SCIP notification number (Netherlands): 81e30e1d-6dcd-47c8-a3c3-d049af7b1761
• SCIP notification number (Poland): 02b6ce32-a5c5-4957-be86-6b44c3b6f522
• SCIP notification number (Romania): 15bbf093-9f9b-4fb4-be0c-e91eb4f3f17f
• SCIP notification number (Sweden): 9a68c8aa-c768-4c87-a1ea-e685293e288d

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 17.7g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (to adjacent devices of different types): Basic insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|EN 50121-3-2|EN 61373|UL 508

Technical data

• Control circuit - Input voltage range (high level): 16 … 30 VDC
• Control circuit - Input voltage range (low level): 0 … 5 VDC
• Control circuit - Nominal input current at U_N: 5 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: 2-wire connection
• Load circuit - Leakage current at rated voltage: ≤ 25 µA
• Load circuit - Limiting continuous current: 0.1 A
• Load circuit - Output voltage range: 9 … 60 VDC
• Load circuit - Switching frequency: ≤ 1.5 kHz
• Load circuit - Turn-off time: ≤ 120 µs
• Load circuit - Turn-on time: ≤ 20 µs
• Load circuit - Voltage drop: ≤ 2 VDC
• Signaling - Status indicator: Red LED
