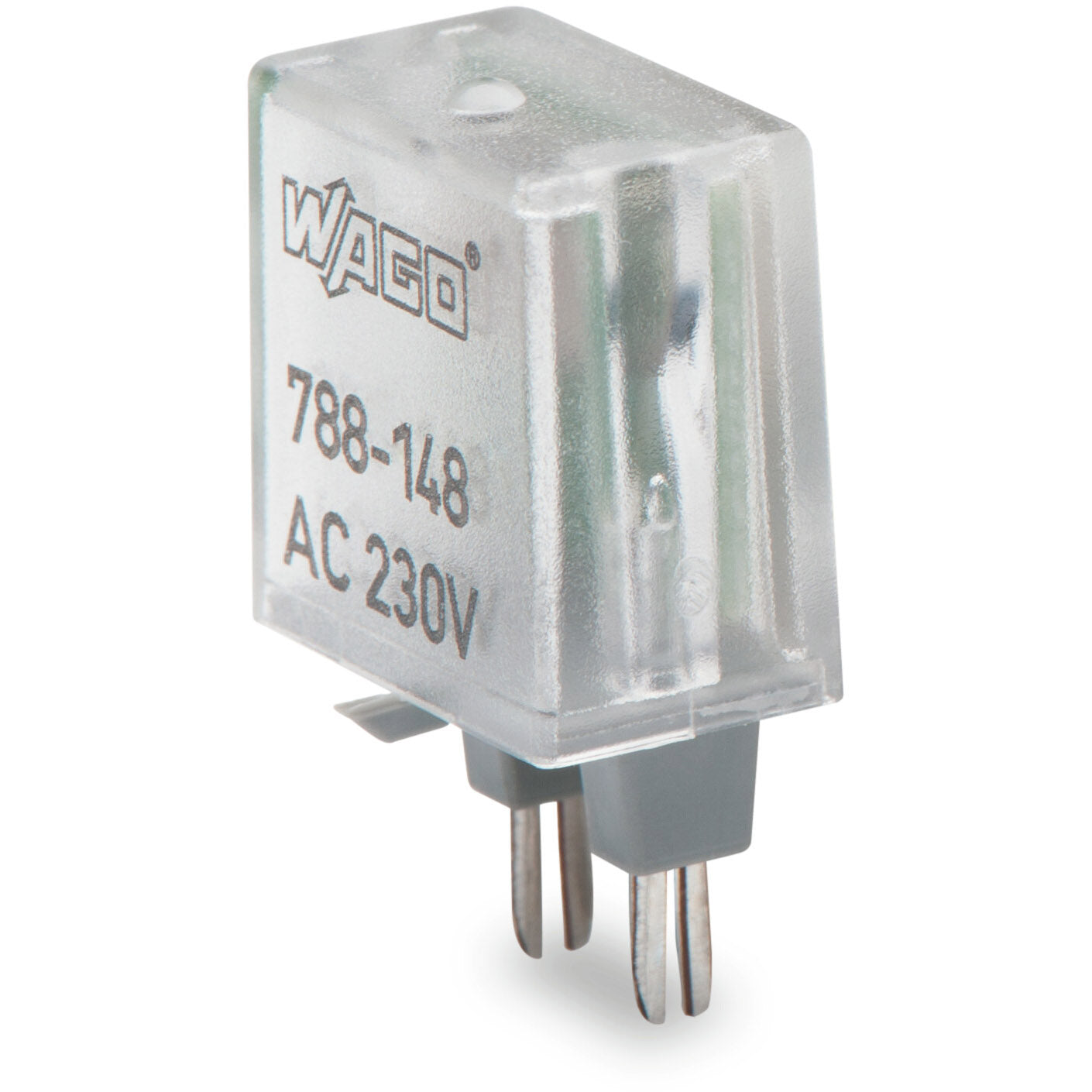

Plug-in suppressor module - WAGO (788 series) - supply voltage 110-230Vac - Plug-in mounting - IP20 - equivalent to 788148

Specifications

• Primary brand: WAGO
• Functions: Plug-in suppressor module
• Supply voltage (AC): 110-230Vac
• Mounting mode: Plug-in
• Dimensions: H15.7mm x W15mm x D10mm
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Customs Tariff Number: 85369010000
• eClass code: 27-37-16-01
• ETIM code: EC002586
• GTIN code: 4050821583547
• Order code / Manufacturer SKU: 788-148
• Manufacturer product status: Commercialized
• Equivalent to: 788148
• EAN code: 4050821583547
• Compliant with standard(s): EN 60664-1|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|RoHS compliant
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Electrical circuits protection
• Level 3 category: Surge Protection Devices (SPD)
• Product title: Plug-in suppressor module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-92
• ETIM 8.0: EC002586
• ETIM 9.0: EC002586
• GTIN: 4050821583547
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 50 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -40 … +70 °C

Material data

• Fire load: 0.027MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.5g

Mechanical data

• Mounting type: Pluggable module

Notes

• Note: To guarantee safe operation, residual voltages (due to the cable capacitance of long connection lines or leakage currents of semi-conductor switches and their protective circuits) must be lower than the release voltage of the relays.
  For DC relays, the release voltage is specified with ≤ 5% of the nominal voltage; for AC relays, it is 15% of the nominal voltage (per VDE 0435).
  The relay may not reset if a high residual voltage exists. Depending on the reason for the residual voltage, changing the cable routing or a parallel connection of an RC element could remedy this situation.

Physical data

• Depth: 10 mm / 0.394 inches
• Height from the surface: 15.7 mm / 0.618 inches
• Width: 15 mm / 0.591 inches

Safety and protection

• Protection type: IP20

Standards and specifications

• Standards/specifications: EN 60664-1

Technical data

• Control circuit - Nominal input current at U_N: 0
• Module characteristics - Capacitance: 100 nF
• Module characteristics - Resistor: 470Ω
• Operating data - Current consumption at U_N: 7.2 mA (230 VAC; 50 Hz); 3.6 mA (115 VAC; 50 Hz)
• Operating data - Nominal mains frequency range: 50 … 60 Hz
• Operating data - Nominal operating voltage: 230 VAC
• Operating data - Operating voltage: 0 … 230 VAC
