Wago - 770-401
$0.14
Sale price
$0.14
Regular price
WAGO component - equivalent to 770401
Specifications
- Primary brand: WAGO
- GTIN code: 4017332801935
- Order code / Manufacturer SKU: 770-401
- Manufacturer product status: Commercialized
- Equivalent to: 770401
- EAN code: 4017332801935

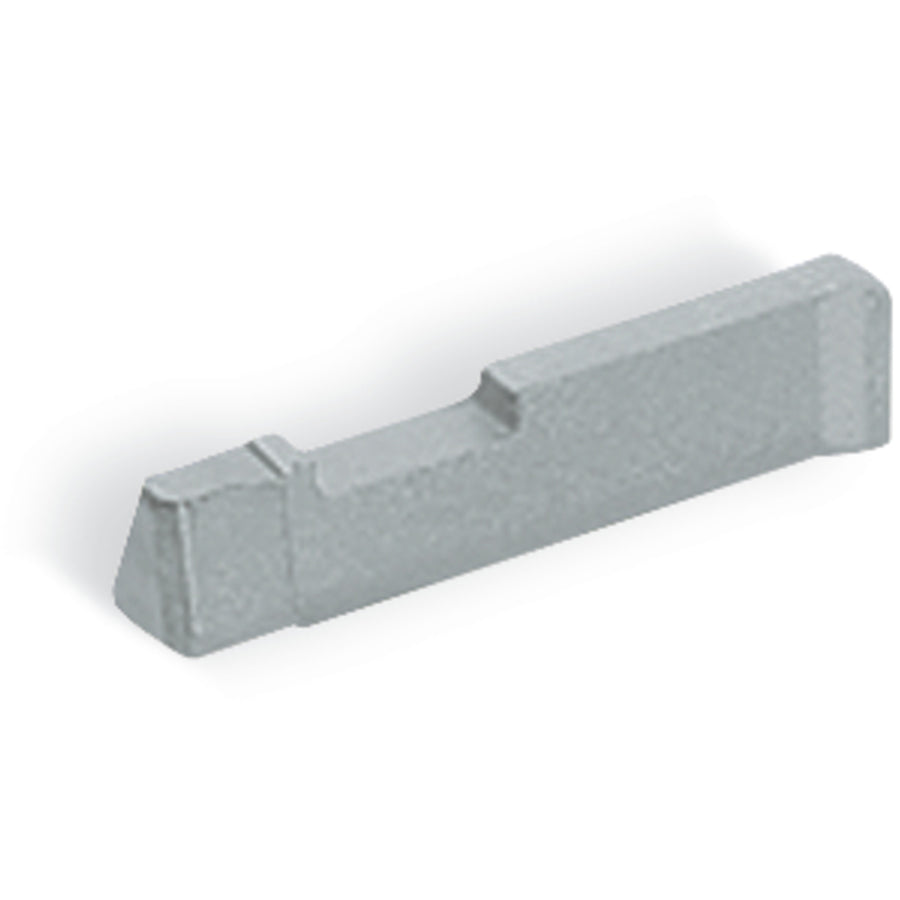

- Manufacturer description: Coding pin; for plugs; Plastic; gray
- Manufacturer product specifications: Mechanical data - Suitable -- for plug; A- and B-coding|Material data - Color -- gray|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 0.002MJ|Material data - Weight -- 0.1g|Environmental requirements - Processing temperature -- -5...+40°C|Environmental requirements - Continuous operating temperature -- -35...+85°C|Environmental requirements - Note on continuous operating temperature -- Insulating parts for temperatures ≤ 105°C|Commercial data - Product Group -- 20 (Winsta)|Commercial data - eClass 10.0 -- 27-44-06-92|Commercial data - eClass 9.0 -- 27-44-06-92|Commercial data - ETIM 9.0 -- EC002863|Commercial data - ETIM 8.0 -- EC002863|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 100 (25) pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4017332801935|Commercial data - Customs tariff number -- 39269097900|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
- Location of origin: Germany
- Level 1 category: Electrical components
Commercial data
- Country of origin: DE
- Customs tariff number: 39269097900
- ECCN: NO US CLASSIFICATION
- eCl@ss 10.0: 27-44-06-92
- eCl@ss 9.0: 27-44-06-92
- ETIM 8.0: EC002863
- ETIM 9.0: EC002863
- GTIN: 4017332801935
- Packaging type: box
- Product Group: 20 (Winsta)
- PU (SPU): 100 (25) pcs
Environmental Product Compliance
- RoHS Compliance Status: Compliant,No Exemption
Environmental requirements
- Continuous operating temperature: -35 … +85 °C
- Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
- Processing temperature: -5 … +40 °C
Material data
- Color: gray
- Fire load: 0.002MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polyamide (PA66)
-
Note (material data):
Information on material specifications can be found here
- Weight: 0.1g
Mechanical data
- Suitable: for plug; A- and B-coding
