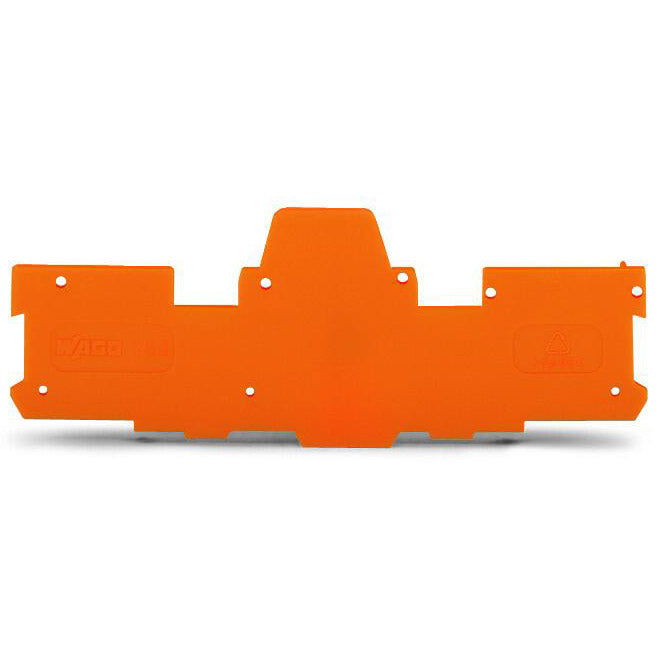

Wago - 769-319

Oversized separator / partition / barrier plate - WAGO (769 X-COM series) - Orange color (1.1mm width) - equivalent to 769319

Specifications

• Primary brand: WAGO
• Functions: Oversized separator / partition / barrier plate
• Color: Orange
• Dimensions: H87.2mm x W1.1mm x D32.3mm
• Net Width (mm): 1.1mm
• Material: Polyamide (PA) 66
• ETIM code: EC000886
• eClass code: 27-14-11-33
• Customs Tariff Number: 85389099990
• GTIN code: 4017332968904
• Order code / Manufacturer SKU: 769-319
• Manufacturer product status: Commercialized
• Equivalent to: 769319
• EAN code: 4017332968904
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Oversized separator / partition / barrier plate - WAGO (X-COM series)

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332968904
• Packaging type: box
• Product Group: 18 (X-COM-System)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: orange
• Fire load: 0.068MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.3g

Physical data

• Depth: 32.3 mm / 1.272 inches
• Height: 87.2 mm / 3.433 inches
• Width: 1.1 mm / 0.043 inches
