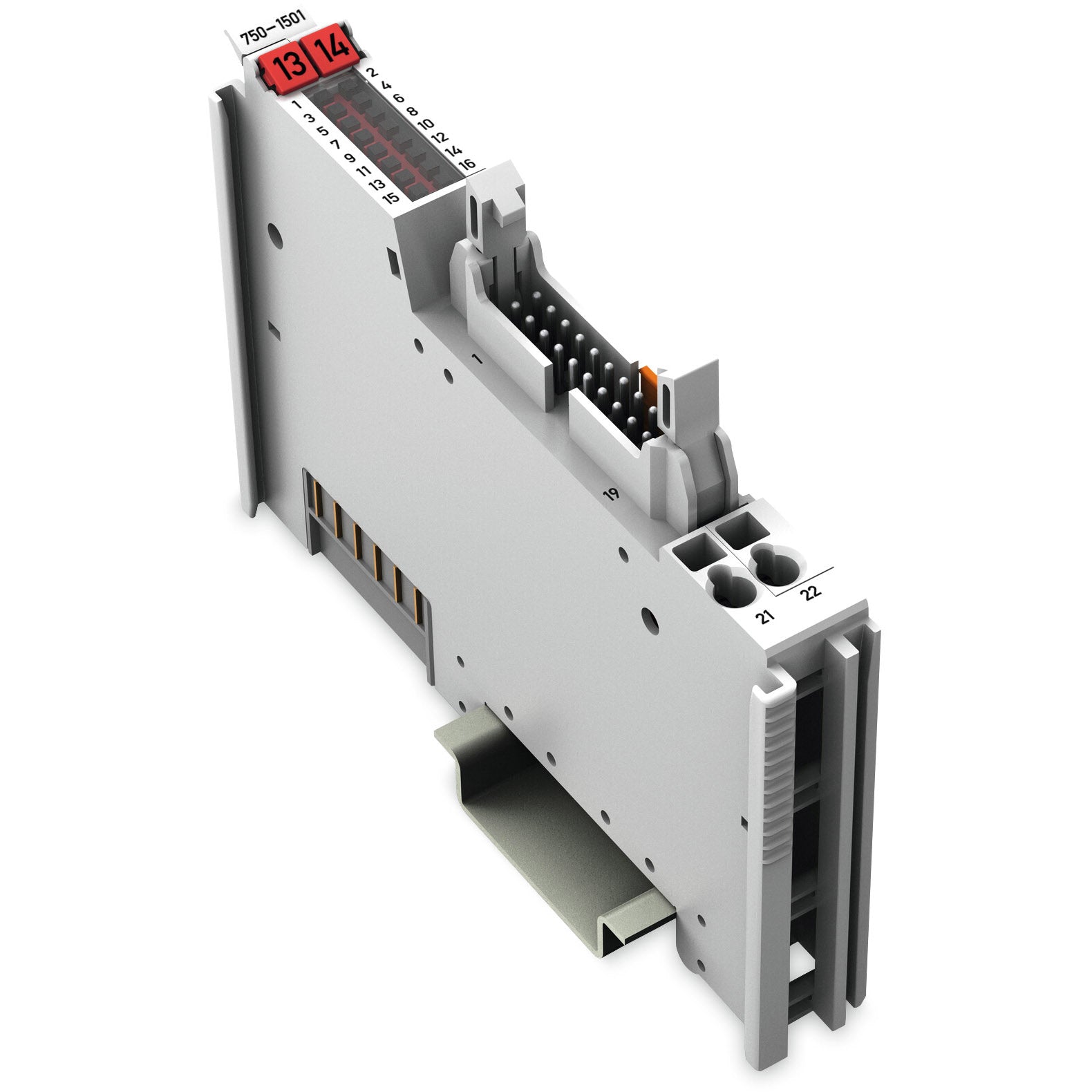

Wago - 750-1501

Standard DC digital output slice unit module - WAGO (750 series) - 16DO; 24Vdc; 0.5A; LSS; Ribbon Cable - 16I/O [16DO (16 x digital outputs (24Vdc / 500mA; low-side switching; 1-wire; ribbon cable connection))] - supply voltage 5Vdc (supplied by system) - with 20-pin male ribbon connector - DIN-35 rail mounting (12mm width) - IP20 - rated for 0°C...+55°C ambient - equivalent to 7501501

Specifications

• Primary brand: WAGO
• Functions: Standard DC digital output slice unit module
• Supply voltage (DC): 5Vdc (supplied by system)|18-31.2Vdc adjustable suppl. to field sensing devices
• Frequency: 1kHz switching frequency
• Display: LED (1-16) green -- Status DO 1...DO 16
• Connection type: 20-pin male ribbon connector|spring CAGE CLAMP connections (field suppl.)
• Protection functions: short-circuit protection
• Mounting mode: DIN-35 rail
• Digital outputs: 16 x digital outputs (24Vdc / 500mA; low-side switching; 1-wire; ribbon cable connection)
• Dimensions: H100mm x W12mm x D74.1mm
• Net Width (mm): 12mm
• Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
• Ambient air temperature for operation: 0°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Mechanical resistance: Vibration resistance according to EN 60068-2-6 -- 4g|Shock resistance according to EN 60068-2-27 --15g
• Current consumption: 40mA (5Vdc; system supply)|11mA (field supply; no external load)
• Customs Tariff Number: 85371098990
• ETIM code: EC001599
• eClass code: 27-24-26-04
• Order code / Manufacturer SKU: 750-1501
• Manufacturer product status: Commercialized
• Equivalent to: 7501501
• EAN code: 4045454898274
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|- marine applications|EMC emission of interference|- EN 61000-6-3|- marine applications|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-DOM750|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - certificate 22-2219060|- BSH - Bundesamt fuer Seeschifffahrt und Hydrographie - certificate 1104|- BV - Bureau Veritas S.A. - certificate 30389/C0 BV|- DNV - DNV GL SE - DNV-CG-0339 / Aug.2021 - certificate TAA0000194|- KR - Korean Register of Shipping - certificate KR HMB05880-AC001|- LR - Lloyds Register EMEA - certificate LR22180952TA|- PRS - Polski Rejestr Statkow - certificate TE/1101/880590/23|- RINA - RINA Germany GmbH - certificate ELE343521XG001|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX148929X (II 3 G Ex ec IIC T4 Gc)|- CCCEx - CQST/CNEx - CNCA-C23-01 - certificate 2020312310000213 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - IEC 60079-0 - certificate IECEx TUN 14.0035 X (Ex ec IIC T4 Gc)|- INMETRO - TUV Rheinland do Brasil Ltda. - IEC 60079-0 - certificate TUV 12.1297 X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX003X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - UL 121201 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Programmable Logic Controllers & components
• Level 3 category: I-O Units
• Product title: Standard DC digital output slice unit module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85371098990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-24-26-04
• eCl@ss 9.0: 27-24-26-04
• ETIM 8.0: EC001599
• ETIM 9.0: EC001599
• Packaging type: Box
• Product Group: 15 (I/O System)
• PU (SPU): 1 pcs

Connection data

• Connectable conductor materials: Copper
• Connection technology: field supply: 2 x CAGE CLAMP^®
• Connection technology: inputs/outputs: 1 x Connector per DIN 41651; Male connector (20-pole) (outputs)
• Connection type: Field supply
• Connection type 1: Output
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 8 … 9 mm / 0.31 … 0.35 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): e8170084-28a6-48be-9af3-162eefa4e51e
• SCIP notification number (Belgium): 0e92c412-da6e-48bc-ab8d-b712b64db290
• SCIP notification number (Bulgaria): 92c62662-cec8-4747-a949-d70e1ed18402
• SCIP notification number (Czech Republic): 0f7a6bce-3bed-453c-9507-bfd620c43b1d
• SCIP notification number (Denmark): 2275f8e7-8263-42a8-a8d8-c99456351821
• SCIP notification number (Finland): 4c6dbb34-0b66-4718-b960-652a3b65fb47
• SCIP notification number (France): c0c7bb75-b813-44ff-b951-87c13b78e4aa
• SCIP notification number (Germany): 73df3943-be90-4333-af39-f3e06c9160c1
• SCIP notification number (Hungary): f2e3d7c8-5197-43df-b7a7-8d5d4721da28
• SCIP notification number (Italy): f815728b-88bb-4a3b-b460-9959a37394a6
• SCIP notification number (Netherlands): 59b05afa-4ca3-42e0-8edd-a92713661d27
• SCIP notification number (Poland): c0cbae92-13cc-492b-9988-de82bf50249e
• SCIP notification number (Romania): 659faa82-60ae-4b2e-bf1f-22ada4a73e57
• SCIP notification number (Sweden): 519c1a7f-90c4-4ed3-bb12-70656d7bbc5e

Environmental requirements

• Ambient temperature (operation): 0 … +55 °C
• Ambient temperature (storage): -40 … +85 °C
• EMC emission of interference: per EN 61000-6-3, marine applications
• EMC immunity to interference: per EN 61000-6-2, marine applications
• Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
• Mounting position: Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom
• Operating altitude: 0 … 2000 m / 0 … 6562 ft
• Permissible H₂S contaminant concentration at a relative humidity 75 %: 10ppm
• Permissible SO₂ contaminant concentration at a relative humidity 75 %: 25ppm
• Pollution degree: 2 per IEC 61131-2
• Protection type: IP20
• Relative humidity (without condensation): 95%
• Shock resistance: 15g per IEC 60068-2-27
• Vibration resistance: 4g per IEC 60068-2-6

Material data

• Color: light gray
• Conformity marking: CE
• Fire load: 0.765MJ
• Housing material: Polycarbonate; polyamide 6.6
• Weight: 42.5g

Mechanical data

• Mounting type: DIN-35 rail
• Pluggable connector: fixed

Physical data

• Depth: 74.1 mm / 2.917 inches
• Depth from upper-edge of DIN-rail: 66.9 mm / 2.634 inches
• Height: 100 mm / 3.937 inches
• Width: 12 mm / 0.472 inches

Technical data

• Actuator connection: 16 x (1-wire)
• Current consumption (5 V system supply): 40mA
• Current consumption, field supply (module with no external load): 11mA
• Indicators: LED (1-16) green: Status DO 1 … DO 16
• Isolation: 500 V system/field
• Load type: Resistive, inductive, lamp load
• Number of digital outputs: 16
• Output characteristic: low-side switching
• Output current: short-circuit-protected
• Output current per channel: 0.5A
• Output data width (internal) max.: 16bits
• Signal type: Digital
• Signal type (voltage): 24 VDC
• Supply voltage (field): 24 VDC (-25 … +30 %); via pluggable connector (CAGE CLAMP^® connection)
• Supply voltage (system): 5 VDC; via data contacts
• Switching frequency (max.): 1 kHz
• Total number of channels (module): 16
