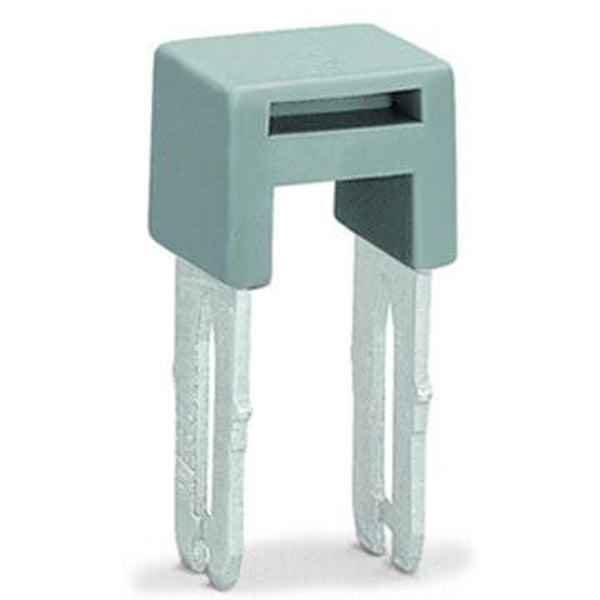

Wago - 281-409

Insulated alternate jumper - WAGO (281 series) - 2-poles (2P) - Rated current 32A - Gray color - equivalent to 281409

Specifications

• Primary brand: WAGO
• Functions: Insulated alternate jumper
• Poles: 2-poles (2P)
• Rated current: 32A
• Color: Gray
• Dimensions: H8mm x W12mm x D23.7mm
• Material: Polyamide (PA) 66
• ETIM code: EC000489
• eClass code: 27-14-11-40
• Customs Tariff Number: 85366990990
• GTIN code: 4044918255325
• Order code / Manufacturer SKU: 281-409
• Manufacturer product status: Commercialized
• Equivalent to: 281409
• EAN code: 4044918255325
• Compliant with standard(s): RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated alternate jumper - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC000489
• ETIM 9.0: EC000489
• GTIN: 4044918255325
• Packaging type: box
• Product Group: 1 (Rail Mounted Terminal Blocks)
• PU (SPU): 100 (25) pcs

Electrical data

• Ex information - Rated current (Ex e II): 26A
• Ratings per IEC/EN - Rated current: 32A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.016MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.2g

Physical data

• Depth: 23.7 mm / 0.933 inches
• Height: 8 mm / 0.315 inches
• Width: 12 mm / 0.472 inches
