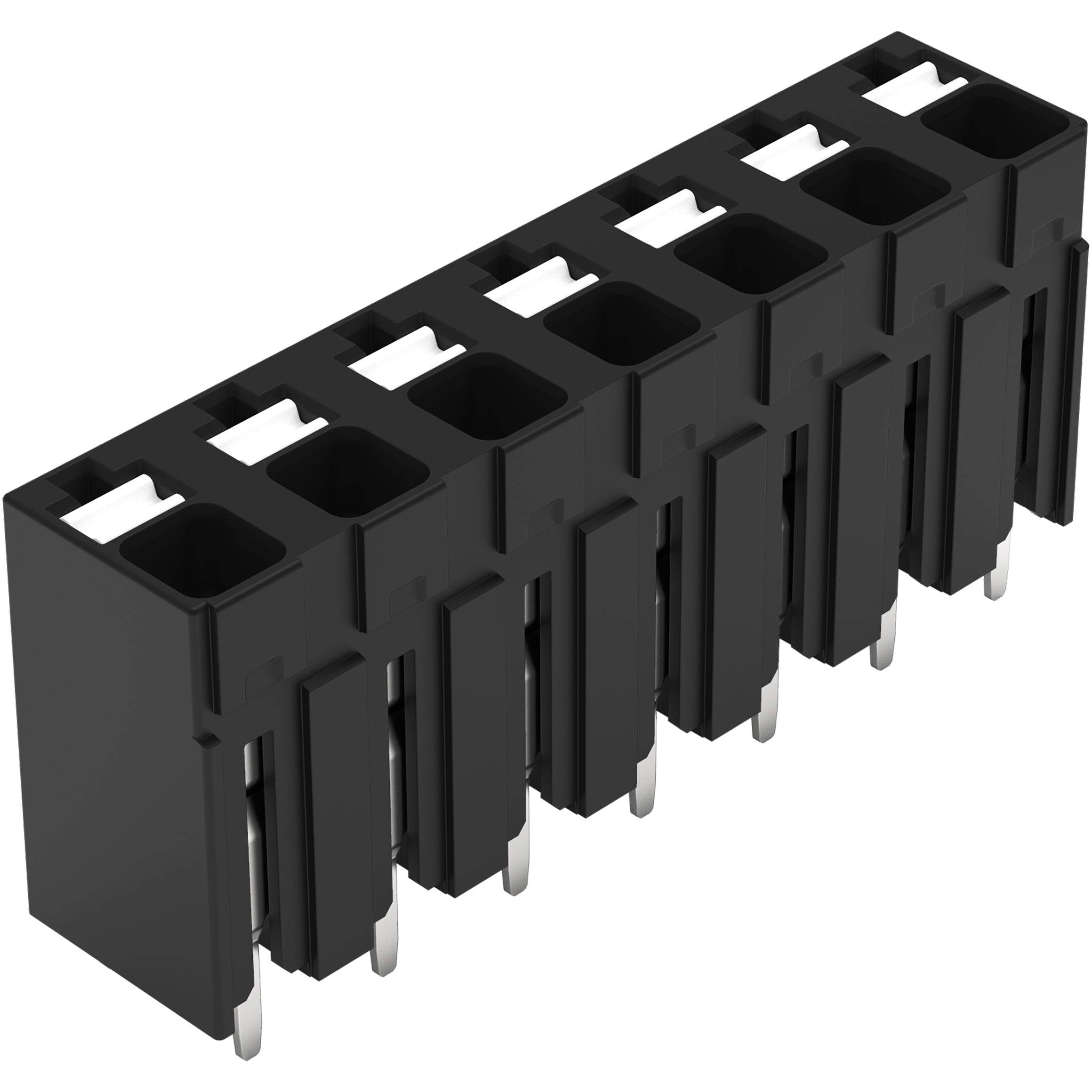

Wago - 2086-3107

WAGO component - equivalent to 20863107

Specifications

• Primary brand: WAGO
• GTIN code: 4066966142457
• Order code / Manufacturer SKU: 2086-3107
• Manufacturer product status: Commercialized
• Equivalent to: 20863107
• EAN code: 4066966142457
• Manufacturer description: THR PCB terminal block; push-button; 1.5mm2; Pin spacing 5mm; 7-pole; Push-in CAGE CLAMP; 1.5mm2; black
• Location of origin: Switzerland
• Manufacturer product specifications: Notes - Note -- Application notes Suitable for Lead-free; reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation; type of soldering machine; solder paste); trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 320V|Electrical data - Ratings per IEC/EN - Rated impulse voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 320V|Electrical data - Ratings per IEC/EN - Rated surge voltage (III/2) -- 4kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated surge voltage (II/2) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 17.5A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 14A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 10A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 14A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 14A|Connection data - Clamping units -- 7|Connection data - Total number of potentials -- 7|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Push-button|Connection data - Connection 1 - Solid conductor -- 0.14...1.5mm2 / 28...16 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.14...1.5mm2 / 26...14 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...0.75mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...1.5mm2|Connection data - Connection 1 - Strip length -- 8...9mm / 0.31...0.35"|Connection data - Connection 1 - Conductor connection direction to PCB -- 90°|Connection data - Connection 1 - Pole number -- 7|Physical data - Pin spacing -- 5mm / 0.197"|Physical data - Width -- 34.2mm / 1.346"|Physical data - Height -- 16mm / 0.63"|Physical data - Height from the surface -- 13.6mm / 0.535"|Physical data - Depth -- 7.8mm / 0.307"|Physical data - Solder pin length -- 2.4mm|Physical data - Solder pin dimensions -- 0.3 x 0.8mm|Physical data - Plated through-hole diameter (THR) -- 1 ^{(+0.1)mm|PCB contact - PCB contact -- THR|PCB contact - Solder pin arrangement -- over the entire terminal strip (in-line)|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- black|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyphthalamide (PPA GF)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (ECu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.103MJ|Material data - Weight -- 4.3g|Material data - MSL per J-STD 020D -- 1|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Continuous operating temperature -- -60...+105°C|Commercial data - ETIM 9.0 -- EC002643|Commercial data - ETIM 8.0 -- EC002643|Commercial data - ECCN -- NO DATA|Commercial data - PU (SPU) -- 96 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- CH|Commercial data - GTIN -- 4066966142457|Commercial data - Customs tariff number -- 85369010000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption}
• Level 1 category: Electrical components

Commercial data

• Country of origin: CH
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002643
• ETIM 9.0: EC002643
• GTIN: 4066966142457
• Packaging type: Box
• PU (SPU): 96 pcs

Connection data

• Clamping units: 7
• Connection 1 - Actuation type: Push-button
• Connection 1 - Conductor connection direction to PCB: 90°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.14 … 1.5 mm² / 26 … 14 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 1.5 mm²
• Connection 1 - Pole number: 7
• Connection 1 - Solid conductor: 0.14 … 1.5 mm² / 28 … 16 AWG
• Connection 1 - Strip length: 8 … 9 mm / 0.31 … 0.35 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 7

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 14A
• Ratings per CSA - Rated current CSA (Use Group D): 14A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 630V
• Ratings per IEC/EN - Nominal voltage (III/3): 320V
• Ratings per IEC/EN - Rated current: 17.5A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 320V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 14A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -60 … +105 °C
• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: black
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.103MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyphthalamide (PPA GF)
• Material group: I
• MSL per J-STD 020D: 1
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.3g

Notes

• Note:

  Application notes:

  Suitable for lead-free, reflow-soldering profiles per DIN EN 61760-1 and IEC 60068-2-58 up to max. 260°C peak temperature. Due to application-specific variables (component configuration and orientation, type of soldering machine, solder paste), trial runs are recommended to ensure product and process compatibility under actual manufacturing conditions.

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THR
• Solder pin arrangement: over the entire terminal strip (in-line)

Physical data

• Depth: 7.8 mm / 0.307 inches
• Height: 16 mm / 0.63 inches
• Height from the surface: 13.6 mm / 0.535 inches
• Pin spacing: 5 mm / 0.197 inches
• Plated through-hole diameter (THR): 1 ^(+0.1) mm
• Solder pin dimensions: 0.3 x 0.8 mm
• Solder pin length: 2.4mm
• Width: 34.2 mm / 1.346 inches
