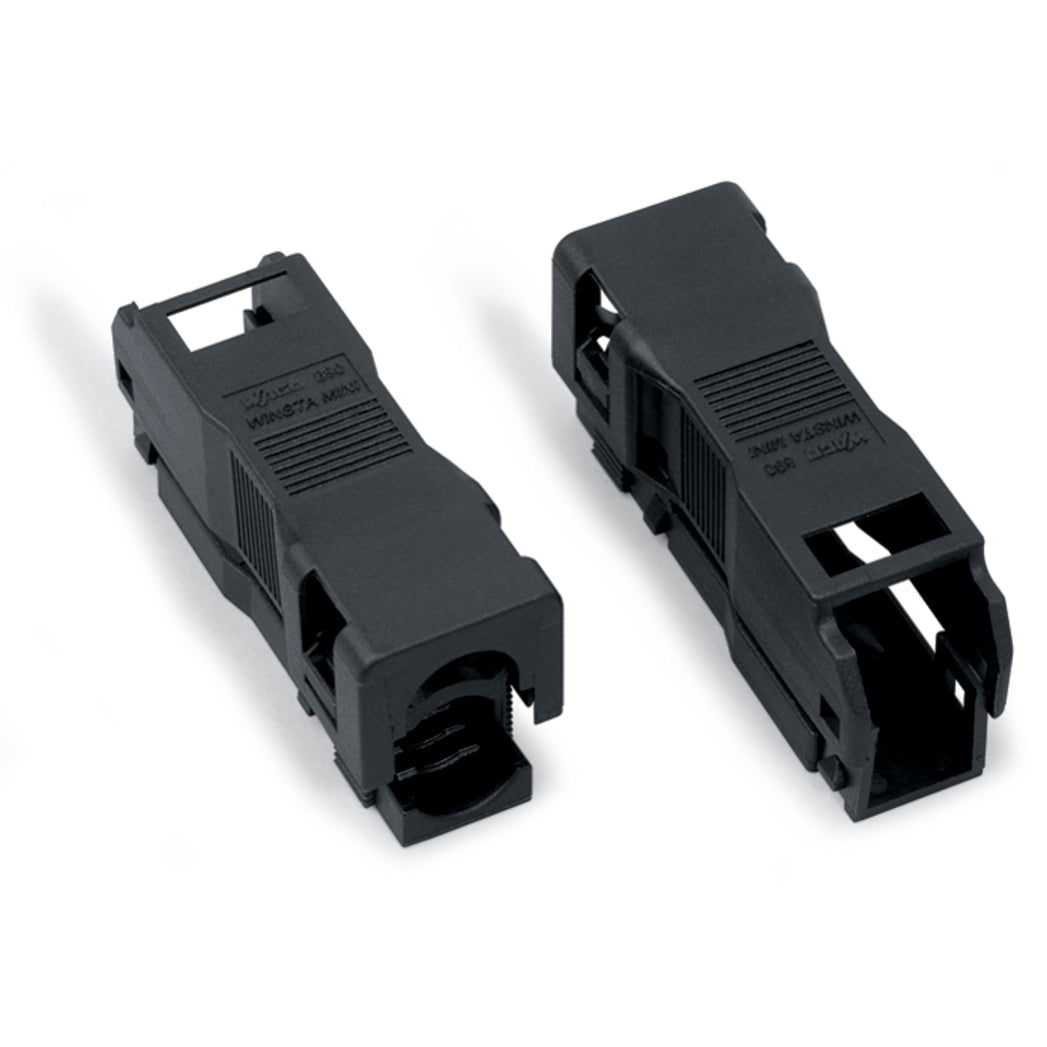

Wago - 890-502

WAGO component - equivalent to 890502

Specifications

• Primary brand: WAGO
• GTIN code: 4045454233310
• Order code / Manufacturer SKU: 890-502
• Manufacturer product status: Commercialized
• Equivalent to: 890502
• EAN code: 4045454233310
• Manufacturer description: Strain relief housing; 2-pole; with locking clip; for 1 cable; 3.8...8.2mm; 30mm; black
• Location of origin: Germany
• Manufacturer product specifications: Connection data - Connection 1 - Pole number -- 2|Connection data - Connection 1 - Connectable sheathed cable diameter -- 3.8...8.2mm|Connection data - Connection 1 - Strip length (outer insulation) -- 32mm|Physical data - Pin spacing -- 4.4mm / 0.173"|Physical data - Width -- 15.6mm / 0.614"|Physical data - Height -- 13.2mm / 0.52"|Physical data - Depth -- 44.8mm / 1.764"|Material data - Color -- black|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 0.114MJ|Material data - Weight -- 2.9g|Environmental requirements - Processing temperature -- -5...+40°C|Environmental requirements - Continuous operating temperature -- -35...+85°C|Environmental requirements - Note on continuous operating temperature -- Insulating parts for temperatures ≤ 105°C|Commercial data - Product Group -- 20 (Winsta)|Commercial data - eClass 10.0 -- 27-44-06-92|Commercial data - eClass 9.0 -- 27-44-06-92|Commercial data - ETIM 9.0 -- EC002863|Commercial data - ETIM 8.0 -- EC002863|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 50 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4045454233310|Commercial data - Customs tariff number -- 39269097900|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-06-92
• eCl@ss 9.0: 27-44-06-92
• ETIM 8.0: EC002863
• ETIM 9.0: EC002863
• GTIN: 4045454233310
• Packaging type: box
• Product Group: 20 (Winsta)
• PU (SPU): 50 pcs

Connection data

• Connection 1 - Connectable sheathed cable diameter: 3.8 … 8.2 mm
• Connection 1 - Pole number: 2
• Connection 1 - Strip length (outer insulation): 32mm

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
• Processing temperature: -5 … +40 °C

Material data

• Color: black
• Fire load: 0.114MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.9g

Physical data

• Depth: 44.8 mm / 1.764 inches
• Height: 13.2 mm / 0.52 inches
• Pin spacing: 4.4 mm / 0.173 inches
• Width: 15.6 mm / 0.614 inches
