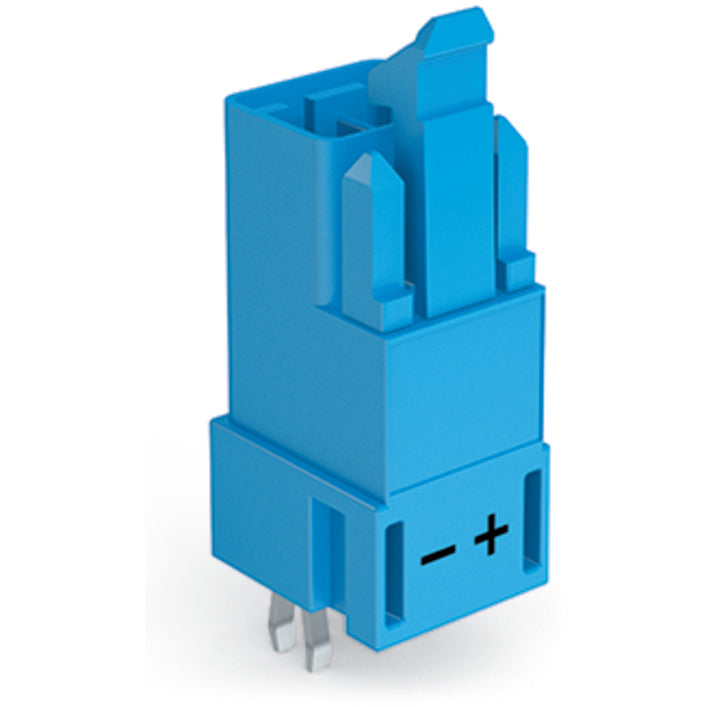

Wago - 890-3112

WAGO component - equivalent to 8903112

Specifications

• Primary brand: WAGO
• GTIN code: 4050821695936
• Order code / Manufacturer SKU: 890-3112
• Manufacturer product status: Commercialized
• Equivalent to: 8903112
• EAN code: 4050821695936
• Manufacturer description: Plug for PCBs; straight; 2-pole; Cod. I; blue
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 250V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 16A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 3) Overvoltage category III / Pollution degree 3|Electrical data - Ratings per UL 1977 - Note for the US market -- Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5A and voltages up to 600 V. For further information; please contact your local sales office.|Electrical data - Ratings per UL 1977 - Rated voltage (UL 1977) -- 600V|Electrical data - Ratings per UL 1977 - Rated current UL 1977 -- 14A|Electrical data - General information - Note on contact resistance -- approx. 1mΩ of contact resistance / approx. 0.25mΩ contact transition plug/socket|Connection data - Total number of potentials -- 2|Connection data - Number of levels -- 1|Connection data - Connection 1 - Pole number -- 2|Physical data - Pin spacing -- 4.4mm / 0.173"|Physical data - Width -- 10.4mm / 0.41"|Physical data - Height -- 31.9mm / 1.256"|Physical data - Height from the surface -- 28.4mm / 1.118"|Physical data - Depth -- 12.2mm / 0.48"|Physical data - Solder pin length -- 3.5mm|Physical data - Solder pin dimensions -- 1 x 0.8mm|Physical data - Drilled hole diameter with tolerance -- 1.3 ^(+0.1)mm|Mechanical data - Use -- DALI; Lighting Management|Mechanical data - Coding -- I|Mechanical data - Variable coding -- No|Mechanical data - Marking -- - +|Mechanical data - Potential marking -- - +|Mechanical data - Mating force of a plug-in connection -- approx. 20...70N (depending on pole number)|Mechanical data - Retention force of a plug-in connection -- Locked > 80N|Mechanical data - Unmating force of a plug-in connection -- Unlocked approx. 20...70N (depending on pole number)|Mechanical data - Number of mating cycles -- 200; without resistive load|Mechanical data - Design -- straight|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for PCB|Plug-in connection - Mismating protection -- Yes|Plug-in connection - Note on mismating protection -- All WINSTA components are 100% protected against mismating when / a.) plugging different numbers of poles / b.) plugging while rotated 180 / c.) plugging while laterally staggered / d.) plugging one pole|Plug-in connection - Mating direction to the PCB -- 90°|Plug-in connection - Locking lever -- yes|Plug-in connection - Locking of plug-in connection -- locking lever|Plug-in connection - Note on locking system -- All connectors for mounted installations (snap-in versions for lighting fixtures or devices; all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- 2 in-line solder pins/pole|PCB contact - Number of solder pins per potential -- 2|Material data - Color -- blue|Material data - Cover color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Copper or Copper alloy; surface-treated|Material data - Contact plating -- Tin|Material data - Fire load -- 0.057MJ|Material data - Weight -- 2.4g|Environmental requirements - Processing temperature -- -5...+40°C|Environmental requirements - Continuous operating temperature -- -35...+85°C|Environmental requirements - Note on continuous operating temperature -- Insulating parts for temperatures ≤ 105°C|Commercial data - eClass 10.0 -- 27-44-06-05|Commercial data - eClass 9.0 -- 27-44-06-05|Commercial data - ETIM 9.0 -- EC002637|Commercial data - ETIM 8.0 -- EC002637|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 100 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4050821695936|Commercial data - Customs tariff number -- 85366990990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Location of origin: Poland
• Level 1 category: Electrical components

Commercial data

• Country of origin: PL
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-06-05
• eCl@ss 9.0: 27-44-06-05
• ETIM 8.0: EC002637
• ETIM 9.0: EC002637
• GTIN: 4050821695936
• Packaging type: box
• PU (SPU): 100 pcs

Connection data

• Connection 1 - Pole number: 2
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• General information - Note on contact resistance: approx. 1 mΩ of contact resistance
  approx. 0.25 mΩ contact transition plug/socket
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 16A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL 1977 - Note for the US market: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Ratings per UL 1977 - Rated current UL 1977: 14A
• Ratings per UL 1977 - Rated voltage (UL 1977): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
• Processing temperature: -5 … +40 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: blue
• Contact material: Copper or copper alloy; surface-treated
• Contact plating: Tin
• Cover color: gray
• Fire load: 0.057MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 2.4g

Mechanical data

• Coding: I
• Design: straight
• Marking: - +
• Mating force of a plug-in connection: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load
• Potential marking: - +
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
• Use: DALI, Lighting Management
• Variable coding: No

PCB contact

• Number of solder pins per potential: 2
• PCB contact: THT
• Solder pin arrangement: 2 in-line solder pins/pole

Physical data

• Depth: 12.2 mm / 0.48 inches
• Drilled hole diameter with tolerance: 1.3 ^(+0.1) mm
• Height: 31.9 mm / 1.256 inches
• Height from the surface: 28.4 mm / 1.118 inches
• Pin spacing: 4.4 mm / 0.173 inches
• Solder pin dimensions: 1 x 0.8 mm
• Solder pin length: 3.5mm
• Width: 10.4 mm / 0.41 inches

Plug-in connection

• Connector (connection type): for PCB
• Contact type (pluggable connector): Male connector/plug
• Locking lever: yes
• Locking of plug-in connection: locking lever
• Mating direction to the PCB: 90°
• Mismating protection: Yes
• Note on locking system: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Note on mismating protection: All WINSTA^® components are 100% protected against mismating when:
  a.) plugging different numbers of poles
  b.) plugging while rotated 180
  c.) plugging while laterally staggered
  d.) plugging one pole
