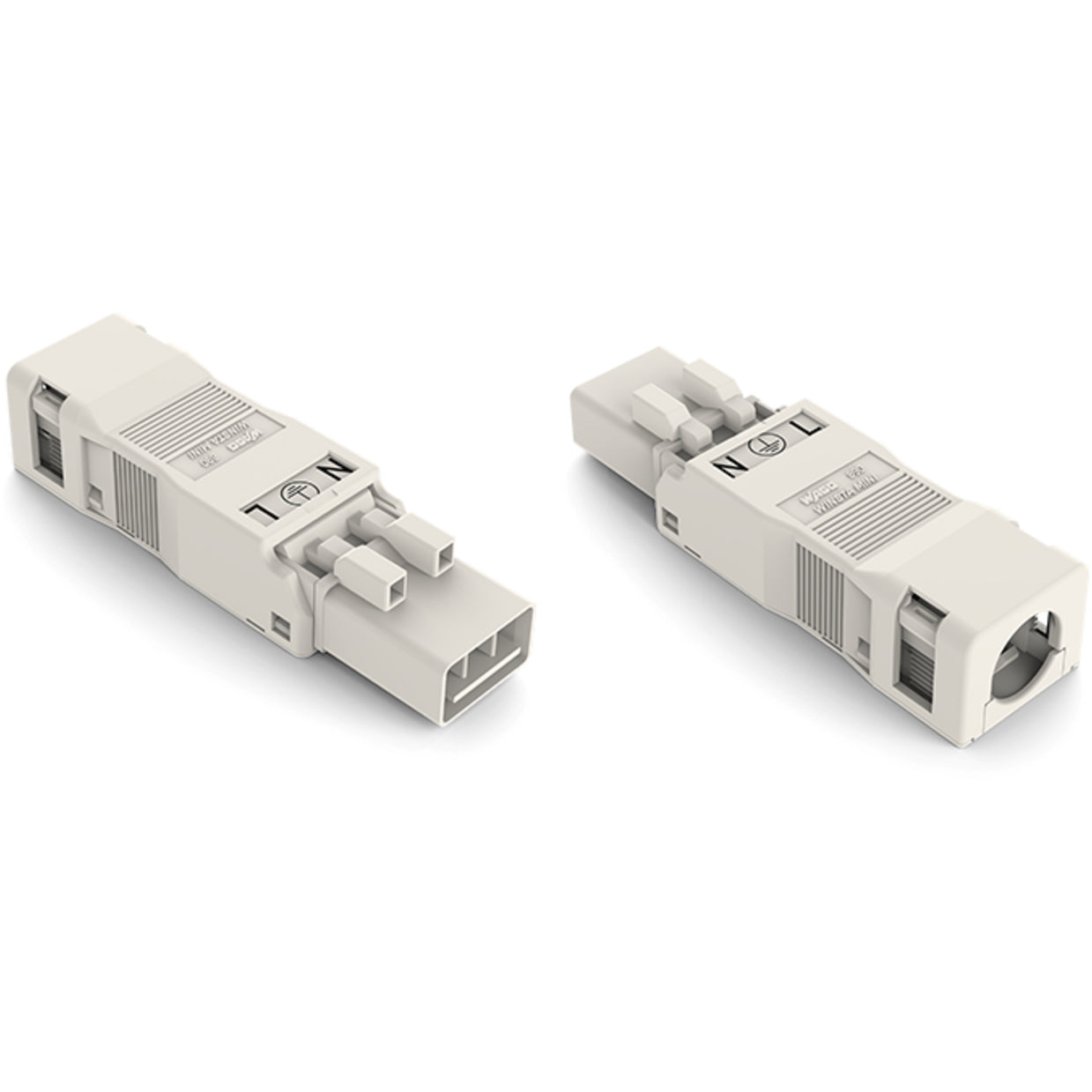

Wago - 890-133

WAGO component - equivalent to 890133

Specifications

• Primary brand: WAGO
• GTIN code: 4045454233013
• Order code / Manufacturer SKU: 890-133
• Manufacturer product status: Commercialized
• Equivalent to: 890133
• EAN code: 4045454233013
• Manufacturer description: Plug; with strain relief housing; 3-pole; 1.5mm2; white
• Location of origin: Germany
• Manufacturer product specifications: Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 250V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 4kV|Electrical data - Ratings per IEC/EN - Rated current -- 16A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 3) Overvoltage category III / Pollution degree 3|Electrical data - Ratings per UL 1977 - Note for the US market -- Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5A and voltages up to 600 V. For further information; please contact your local sales office.|Electrical data - Ratings per UL 1977 - Rated voltage (UL 1977) -- 600V|Electrical data - Ratings per UL 1977 - Rated current UL 1977 -- 14A|Electrical data - General information - Note on contact resistance -- approx. 1mΩ of contact resistance / approx. 0.25mΩ contact transition plug/socket|Connection data - Clamping units -- 3|Connection data - Total number of potentials -- 3|Connection data - PE function -- Preceding PE contact|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Operating tool / Push-in|Connection data - Connection 1 - Nominal cross-section -- 1.5mm2 / 16 AWG|Connection data - Connection 1 - Solid conductor -- 0.25...1.5mm2 / 22...16 AWG|Connection data - Connection 1 - Solid conductor; push-in termination -- 0.75...1.5mm2 / 20...16 AWG|Connection data - Connection 1 - Stranded conductor -- 0.25...1mm2 / 22...18 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.25...1.5mm2 / 22...16 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.25...0.75mm2 / 22...20 AWG|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.25...0.75mm2 / 22...20 AWG|Connection data - Connection 1 - Fine-stranded conductor; with ferrule; push-in termination -- 0.75mm2 / 20 AWG|Connection data - Connection 1 - Strip length -- 9mm / 0.35"|Connection data - Connection 1 - Pole number -- 3|Connection data - Connection 1 - Conductor entry direction to mating direction -- 0°|Connection data - Connection 1 - Strip length (outer insulation) -- 40mm|Physical data - Pin spacing -- 4.4mm / 0.173"|Physical data - Width -- 17.9mm / 0.705"|Physical data - Height -- 14mm / 0.551"|Physical data - Depth -- 63.6mm / 2.504"|Mechanical data - Use -- General mains applications|Mechanical data - Coding --A|Mechanical data - Variable coding -- No|Mechanical data - Marking --N PE L|Mechanical data - Potential marking --N PE L|Mechanical data - Mating force of a plug-in connection -- approx. 20...70N (depending on pole number)|Mechanical data - Retention force of a plug-in connection -- Locked > 80N|Mechanical data - Unmating force of a plug-in connection -- Unlocked approx. 20...70N (depending on pole number)|Mechanical data - Number of mating cycles -- 200; without resistive load|Mechanical data - Protection type -- IP40|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for conductor|Plug-in connection - Mismating protection -- Yes|Plug-in connection - Note on mismating protection -- All WINSTA components are 100% protected against mismating when / a.) plugging different numbers of poles / b.) plugging while rotated 180 / c.) plugging while laterally staggered / d.) plugging one pole|Plug-in connection - Locking lever -- Can be retrofitted|Plug-in connection - Locking of plug-in connection -- locking lever|Plug-in connection - Note on locking system -- All connectors for mounted installations (snap-in versions for lighting fixtures or devices; all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).|Plug-in connection - Strain relief -- strain relief housing|Material data - Color -- white|Material data - Cover color -- gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Copper or Copper alloy; surface-treated|Material data - Contact plating -- Tin|Material data - Fire load -- 0.284MJ|Material data - Connector color -- white|Material data - Strain relief color -- white|Material data - Weight -- 6.6g|Environmental requirements - Processing temperature -- -5...+40°C|Environmental requirements - Continuous operating temperature -- -35...+85°C|Environmental requirements - Note on continuous operating temperature -- Insulating parts for temperatures ≤ 105°C|Commercial data - Product Group -- 20 (Winsta)|Commercial data - eClass 10.0 -- 27-44-06-05|Commercial data - eClass 9.0 -- 27-44-06-05|Commercial data - ETIM 9.0 -- EC002560|Commercial data - ETIM 8.0 -- EC002560|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 50 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4045454233013|Commercial data - Customs tariff number -- 85366990990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-44-06-05
• eCl@ss 9.0: 27-44-06-05
• ETIM 8.0: EC002560
• ETIM 9.0: EC002560
• GTIN: 4045454233013
• Packaging type: box
• Product Group: 20 (Winsta)
• PU (SPU): 50 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Operating tool|Push-in
• Connection 1 - Conductor entry direction to mating direction: 0°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Connection 1 - Fine-stranded conductor; with ferrule; push-in termination: 0.75 mm² / 20 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 0.75 mm² / 22 … 20 AWG
• Connection 1 - Nominal cross-section: 1.5 mm² / 16 AWG
• Connection 1 - Pole number: 3
• Connection 1 - Solid conductor: 0.25 … 1.5 mm² / 22 … 16 AWG
• Connection 1 - Solid conductor; push-in termination: 0.75 … 1.5 mm² / 20 … 16 AWG
• Connection 1 - Stranded conductor: 0.25 … 1 mm² / 22 … 18 AWG
• Connection 1 - Strip length: 9 mm / 0.35 inches
• Connection 1 - Strip length (outer insulation): 40mm
• PE function: Preceding PE contact
• Total number of potentials: 3

Electrical data

• General information - Note on contact resistance: approx. 1 mΩ of contact resistance

  approx. 0.25 mΩ contact transition plug/socket
• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 250V
• Ratings per IEC/EN - Rated current: 16A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL 1977 - Note for the US market: Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 5 A and voltages up to 600 V. For further information, please contact your local sales office.
• Ratings per UL 1977 - Rated current UL 1977: 14A
• Ratings per UL 1977 - Rated voltage (UL 1977): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C
• Note on continuous operating temperature: Insulating parts for temperatures ≤ 105 °C
• Processing temperature: -5 … +40 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: white
• Connector color: white
• Contact material: Copper or copper alloy; surface-treated
• Contact plating: Tin
• Cover color: gray
• Fire load: 0.284MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Strain relief color: white
• Weight: 6.6g

Mechanical data

• Coding: A
• Marking: N ⏚ L
• Mating force of a plug-in connection: approx. 20 … 70 N (depending on pole number)
• Number of mating cycles: 200, without resistive load
• Potential marking: N ⏚ L
• Protection type: IP40
• Retention force of a plug-in connection: Locked: > 80 N
• Unmating force of a plug-in connection: Unlocked: approx. 20 … 70 N (depending on pole number)
• Use: General mains applications
• Variable coding: No

Physical data

• Depth: 63.6 mm / 2.504 inches
• Height: 14 mm / 0.551 inches
• Pin spacing: 4.4 mm / 0.173 inches
• Width: 17.9 mm / 0.705 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Male connector/plug
• Locking lever: Can be retrofitted
• Locking of plug-in connection: locking lever
• Mismating protection: Yes
• Note on locking system: All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket).
• Note on mismating protection: All WINSTA^® components are 100% protected against mismating when:
  a.) plugging different numbers of poles
  b.) plugging while rotated 180

  c.) plugging while laterally staggered
  d.) plugging one pole
• Strain relief: strain relief housing
