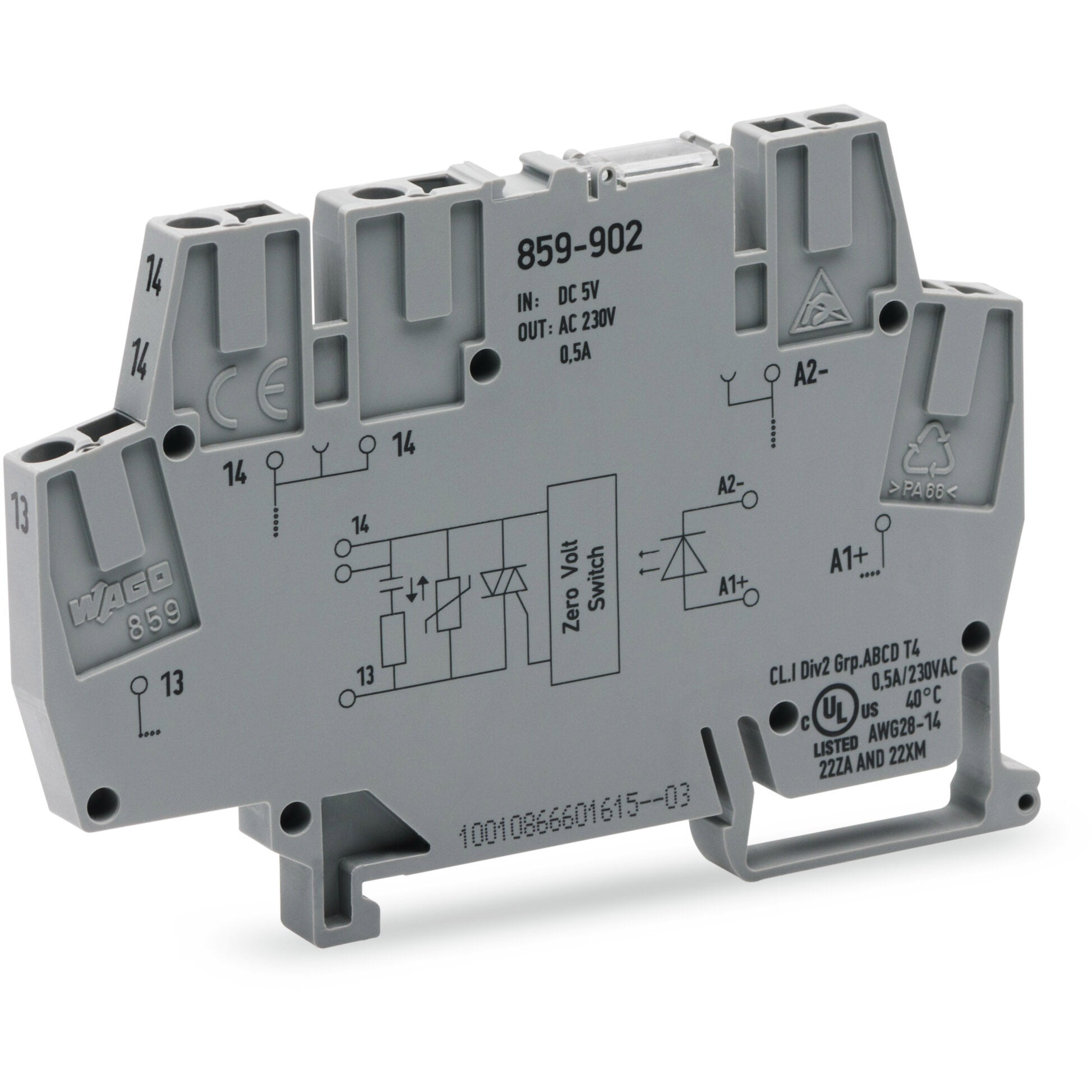

Wago - 859-902

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - zero-cross switching - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 4-6.25Vdc (5Vdc nom.) - Rated voltage 24Vac-260Vac (230Vac nom.; 50/60Hz) output - Rated current 0.5A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859902

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|2-wire connection|zero-cross switching
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 50Hz / 60Hz main frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 0.5A (continuous)
• Rated voltage (AC): 24Vac-260Vac (230Vac nom.; 50/60Hz) output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 4-6.25Vdc (5Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 10ms / 0.010s|(switching OFF) 10ms / 0.010s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Ambient air temperature for operation: -25°C...+55°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• eClass code: 27-26-15-03
• GTIN code: 4055143606738
• ETIM code: EC001504
• Customs Tariff Number: 85365005000
• Order code / Manufacturer SKU: 859-902
• Manufacturer product status: Commercialized
• Equivalent to: 859902
• EAN code: 4066966181913
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (7(a))
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055143606738
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)
• SCIP notification number (Austria): 9ac7fc48-a2ac-4908-906f-2b8cd4b37ec8
• SCIP notification number (Belgium): ef044561-9023-42f7-abe1-35525f06aaac
• SCIP notification number (Bulgaria): b5fdb4d2-f21a-445d-8e1d-72344877b87b
• SCIP notification number (Czech Republic): 4f6d81b3-e526-44bc-a071-f41fdefb2f08
• SCIP notification number (Denmark): 67840c7d-a36a-49f1-9ca7-921349e558da
• SCIP notification number (Finland): 0b93c8a8-a04e-4fbb-b95c-d4ac7eea764d
• SCIP notification number (France): 03814446-4c00-41e7-ace8-a9e1aa4b1564
• SCIP notification number (Germany): a807a295-6019-4843-afd7-c34c4dbc4c9c
• SCIP notification number (Hungary): 68ad8a15-753f-456e-87b2-b80a946a1d1d
• SCIP notification number (Italy): 07c64cbd-2e81-4fa8-abe1-da620760db84
• SCIP notification number (Netherlands): c650d6ea-8f2f-44a0-911d-e4c8a83fa040
• SCIP notification number (Poland): 9337548c-3ccd-432b-9012-36dd5a19cb19
• SCIP notification number (Romania): 54c2b9f2-9a0f-4cf6-92a8-a7a1b24f8dd8
• SCIP notification number (Sweden): 5ad19771-83e3-4202-bcc0-d3bc81ca261e

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +55 °C
• Ambient temperature (storage): -40 … +70 °C
• Ambient temperature UL (operation at U_N): -25 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 20.4g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3.51 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (to adjacent devices of different types): Reinforced insulation (safe isolation)
• Overvoltage category: III
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V
• Type of circuits: Mains circuits

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|UL 508

Technical data

• Control circuit - Input voltage range (high level): 4 … 6.25 VDC
• Control circuit - Input voltage range (low level): 0 … 1 VDC
• Control circuit - Nominal input current at U_N: 8 mA
• Control circuit - Nominal input voltage U_N: 5 VDC
• Load circuit - Circuit type: 2-wire connection|Zero-voltage switching
• Load circuit - Leakage current at rated voltage: ≤ 1 mA
• Load circuit - Limiting continuous current: 0.5 A
• Load circuit - Nominal output voltage: 230 VAC
• Load circuit - Output voltage range: 24 … 260 VAC (50 … 60 Hz)
• Load circuit - Peak output current: 30A
• Load circuit - Switching current (min.): 50 mA
• Load circuit - Switching frequency: 50 Hz / 60 Hz
• Load circuit - Turn-off time: ≤ 10 ms
• Load circuit - Turn-on time: ≤ 10 ms
• Load circuit - Voltage drop: ≤ 1.2 VAC
• Signaling - Status indicator: Red LED
