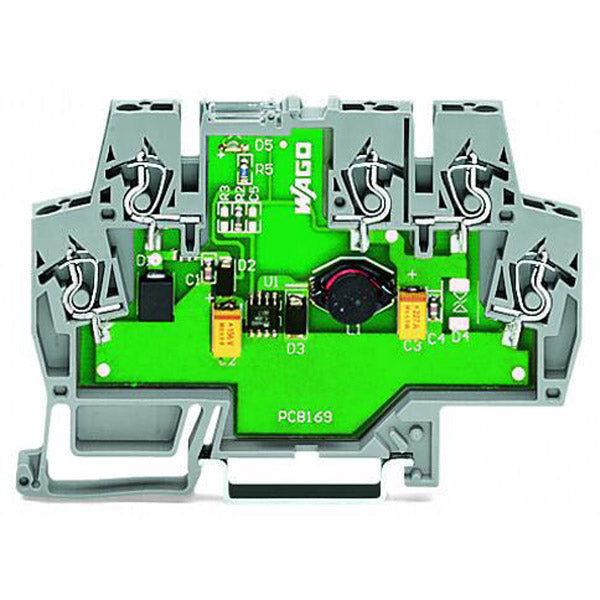

Wago - 859-804

DC-to-DC power supply unit (PSU) / converter module - WAGO (859 series) - 24Vdc / 0.25A / 6W output - Input voltage 8-16Vdc (12Vdc nom.) (DC) - with CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -25°C...+55°C ambient - equivalent to 859804

Specifications

• Primary brand: WAGO
• Functions: DC-to-DC power supply unit (PSU) / converter module
• Supply voltage (DC): 8-16Vdc (12Vdc nom.)
• Display: LED status indication
• Type of network: DC
• Rated current: 0.25A
• Rated power: 6W
• Output voltage (DC): 24Vdc|23.76-24.24Vdc
• Hold time: 0.5ms
• Connection type: CAGE CLAMP spring connections
• Protection functions: TVS diode|Fuse
• Efficiency: 0.83
• Mounting mode: DIN-35 rail
• Dimensions: H91mm x W6mm x D91mm
• Net Width (mm): 6mm
• Ambient air temperature for operation: -25°C...+55°C
• GTIN code: 4050821017479
• eClass code: 27-04-07-01
• ETIM code: EC002540
• Customs Tariff Number: 85044083900
• Order code / Manufacturer SKU: 859-804
• Manufacturer product status: Commercialized
• Equivalent to: 859804
• EAN code: 4050821017479
• Compliant with standard(s): CE|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|RoHS compliant
• Location of origin: United States of America
• Degree of pollution: 2
• Ripple: 40mVpp (output voltage)
• Level 1 category: Automation components
• Level 2 category: Power supply units
• Product title: DC-to-DC power supply unit (PSU) / converter module - WAGO

Commercial data

• Country of origin: US
• Customs tariff number: 85044083900
• ECCN: EAR99
• eCl@ss 10.0: 27-04-07-01
• eCl@ss 9.0: 27-04-07-01
• ETIM 8.0: EC002540
• ETIM 9.0: EC002540
• GTIN: 4050821017479
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 (1) pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Number of jumper slots: 2
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• WAGO connector: WAGO 859 Series

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -25 … +55 °C

Material data

• Color: gray
• Fire load: 0.48MJ
• Weight: 35.1g

Mechanical data

• Housing design: Rail-mount terminal block
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Pollution degree: 2
• Protection class: III
• Protection type: IP20; per EN 60529
• Reverse voltage protection: yes
• Series operation: No

Standards and specifications

• Conformity marking: CE

Technical data

• Circuit protection - Internal fuse: TVS diode
• Efficiency/power losses - Efficiency (typ.): 83 %
• Input - Input voltage range: 8 … 16 VDC
• Input - Mains failure hold-up time: ≥ 0.5 ms
• Input - Nominal input voltage U_{i nom}: 12 VDC
• Input - Nominal mains frequency range: 0 Hz
• Output - Nominal output current I_{o nom}: 0.25 A
• Output - Nominal output voltage U_{o nom}: 24 VDC
• Output - Output voltage range: ±1 %
• Output - Overload behavior: Fuse
• Output - Residual ripple: ≤ 40 mV
• Output - Switching frequency: 1.2 MHz (nominal)
• Signaling and communication - Signaling: 1 x LED
