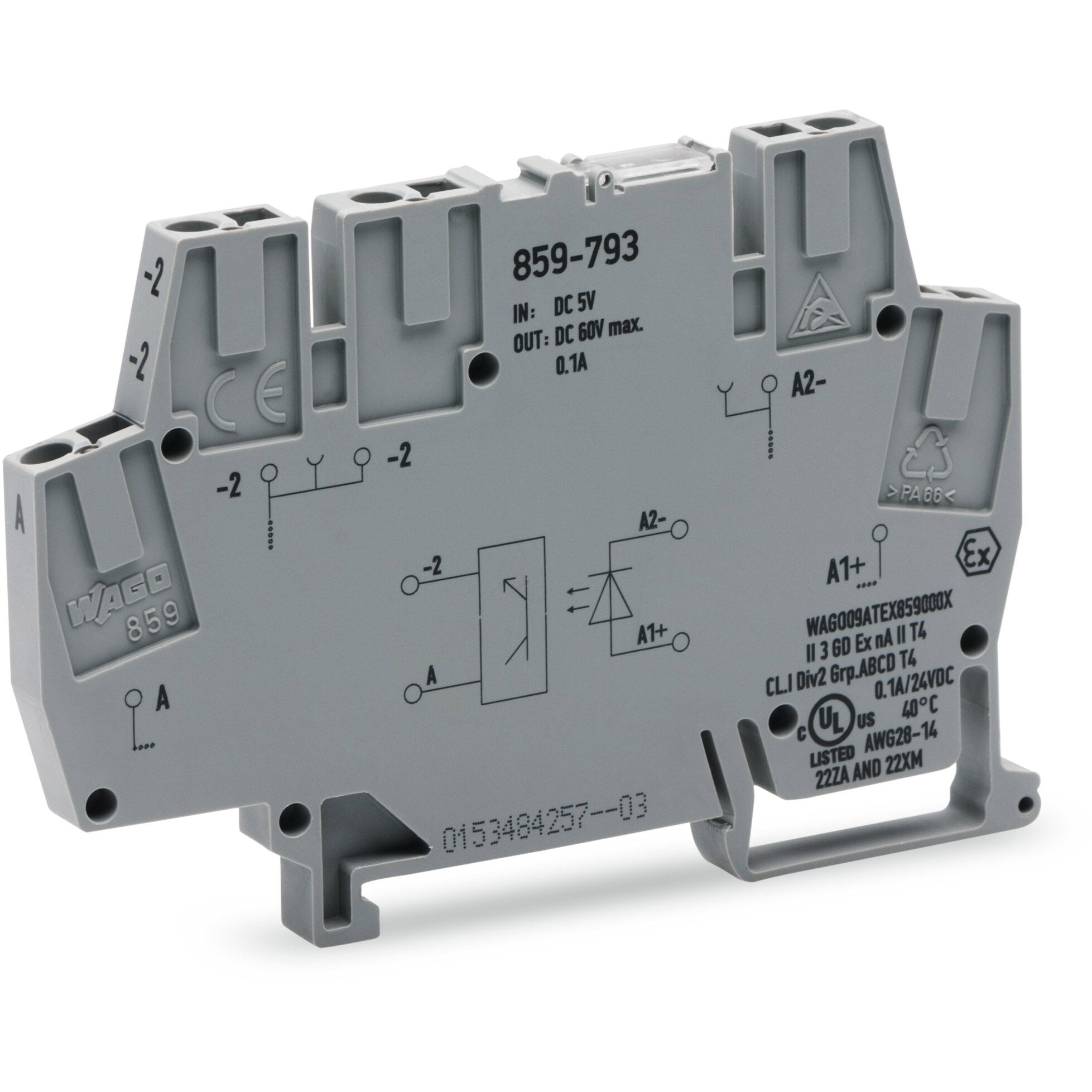

Wago - 859-793

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - for railways applications - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 2-6.25Vdc (5Vdc nom.) - Rated voltage 3Vdc-60Vdc output - Rated current 0.1A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859793

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|2-wire connection|for railways applications
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 1.5kHz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 0.1A (continuous)
• Rated Voltage (DC): 3Vdc-60Vdc output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 2-6.25Vdc (5Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 20μs / 0.00002s|(switching OFF) 120μs / 0.00012s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• ETIM code: EC001504
• eClass code: 27-26-15-03
• Customs Tariff Number: 85365005000
• GTIN code: 4055143606271
• Order code / Manufacturer SKU: 859-793
• Manufacturer product status: Commercialized
• Equivalent to: 859793
• EAN code: 4055143606301
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 50121-3-2|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Application type: Railways applications
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055143606271
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): a3672d1d-0ba4-47b1-9b7b-6688726460d9
• SCIP notification number (Belgium): 31c2280f-de9a-4e8f-b865-e81212a5a6c7
• SCIP notification number (Bulgaria): 6ea30b1f-1833-4132-b15e-de9b32447dac
• SCIP notification number (Czech Republic): 1e9e47f4-7452-47fb-94ce-91f99eb47bdb
• SCIP notification number (Denmark): ddaae4b8-7cd7-491b-a8e8-f03b65558dd9
• SCIP notification number (Finland): 1bdefdfa-bca0-4f73-8c96-594fdafce5cd
• SCIP notification number (France): f1c1ce69-9cc6-4384-83a2-60f5aea0fb07
• SCIP notification number (Germany): 319ea701-f2ae-489b-b493-3f6576d20b98
• SCIP notification number (Hungary): 8a914126-0965-4f1e-a1b7-abaec3480990
• SCIP notification number (Italy): 592733e7-4ad2-42ed-97ff-1b2d8089454a
• SCIP notification number (Netherlands): afecfafd-cf65-4950-a533-561efdee23b9
• SCIP notification number (Poland): b36df44c-243d-4e9a-8e15-bd2fa9a08444
• SCIP notification number (Romania): bfcb7249-8950-4b5a-b2dc-229e629760e6
• SCIP notification number (Sweden): d3705cd1-875f-4d4b-962c-f574bd23bcf1

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 17.7g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (to adjacent devices of different types): Basic insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|EN 50121-3-2|EN 61373|UL 508

Technical data

• Control circuit - Input voltage range (high level): 2 … 6.25 VDC
• Control circuit - Input voltage range (low level): 0 … 0.8 VDC
• Control circuit - Nominal input current at U_N: 8 mA
• Control circuit - Nominal input voltage U_N: 5 VDC
• Load circuit - Circuit type: 2-wire connection
• Load circuit - Leakage current at rated voltage: ≤ 25 µA
• Load circuit - Limiting continuous current: 0.1 A
• Load circuit - Output voltage range: 3 … 60 VDC
• Load circuit - Switching frequency: ≤ 1.5 kHz
• Load circuit - Turn-off time: ≤ 120 µs
• Load circuit - Turn-on time: ≤ 20 µs
• Load circuit - Voltage drop: ≤ 2.5 VDC
• Signaling - Status indicator: Red LED
