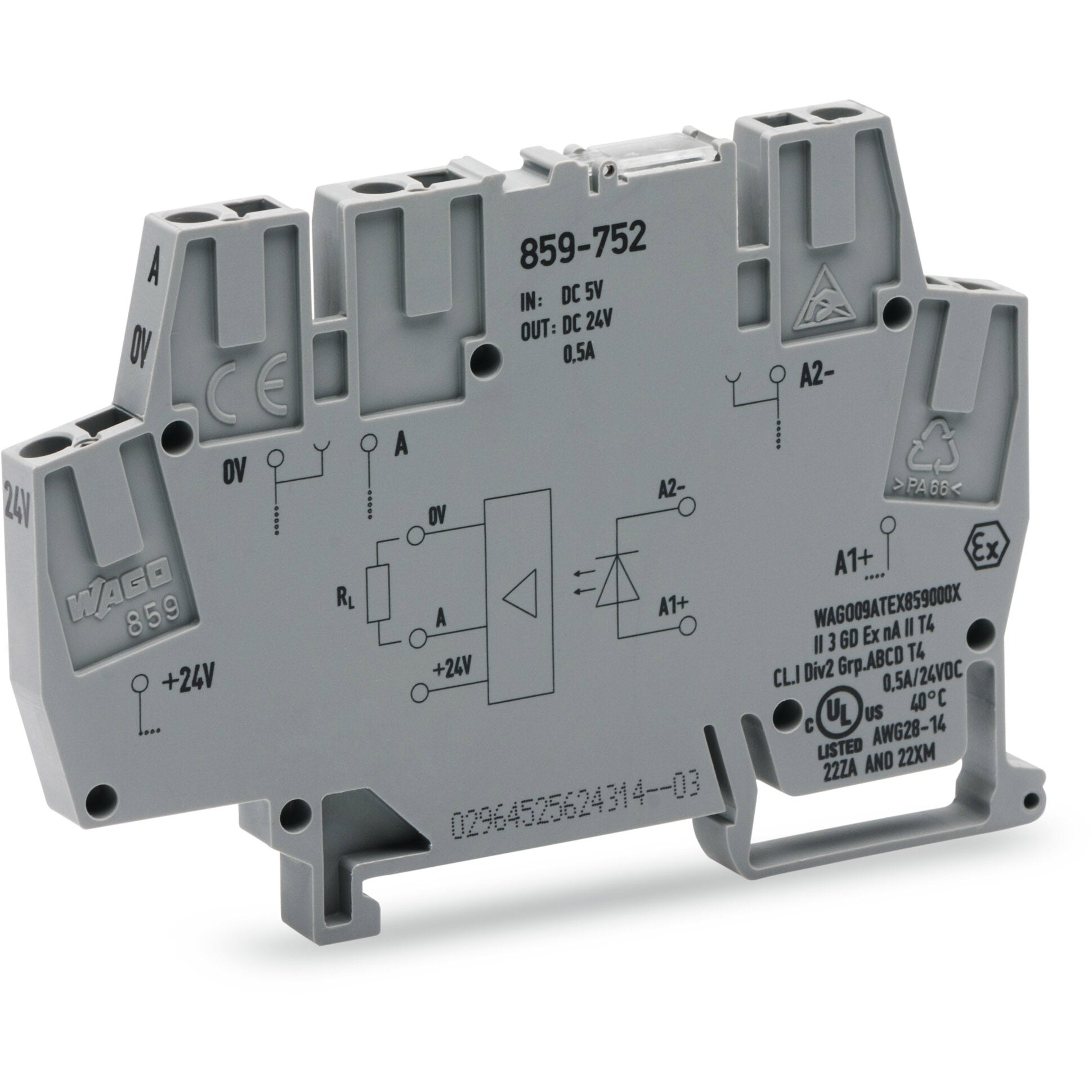

Wago - 859-752

Fixed-type solid-state / static relay (SSR) with red LED - 3-wire connection - high-side switching - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 4-6Vdc (5Vdc nom.) - Rated voltage 20Vdc-30Vdc (24Vdc nom.) output - Rated current 0.5A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859752

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|3-wire connection|high-side switching
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 10kHz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 0.5A (continuous)
• Rated Voltage (DC): 20Vdc-30Vdc (24Vdc nom.) output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 4-6Vdc (5Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 15μs / 0.000015s|(switching OFF) 30μs / 0.00003s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+40°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85365005000
• GTIN code: 4055143605465
• ETIM code: EC001504
• eClass code: 27-26-15-03
• Order code / Manufacturer SKU: 859-752
• Manufacturer product status: Commercialized
• Equivalent to: 859752
• EAN code: 4055143605465
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- CCC - CNEX - CNCA-C23-01 - certificate 2021312304000982 (Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX007X_ec|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (7(a) / 7(c)-I)|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055143605465
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I
• SCIP notification number (Austria): 2bf9fbd1-547e-4bfa-b2bc-fc91d82df661
• SCIP notification number (Belgium): 538d034d-166a-4299-b6a5-17ba08b2fb47
• SCIP notification number (Bulgaria): 645430d7-0a2f-4db0-b318-5f11e63d82d6
• SCIP notification number (Czech Republic): 6a24d77b-4a7d-463b-8fff-c86154baccb9
• SCIP notification number (Denmark): 2b7657ec-b737-4d10-810c-a285e16ab903
• SCIP notification number (Finland): cdeedaed-ee95-4e88-8119-bba25fcbe2fe
• SCIP notification number (France): 6d5faefc-deaa-4931-abab-3f716a0f092d
• SCIP notification number (Germany): 00dddd8a-167f-45dd-9fea-9e56e2bfc636
• SCIP notification number (Hungary): 49b38b2b-11e8-40fe-a870-ae0a759fb093
• SCIP notification number (Italy): 1232e944-7809-4747-be2b-f209da19e025
• SCIP notification number (Netherlands): 20d89d09-2f67-4d2e-b68d-dafb7d3b1d0d
• SCIP notification number (Poland): 04c81bcc-a9ad-4703-966c-ffd0872b1552
• SCIP notification number (Romania): 425aa0ae-a278-4f91-b9d5-6871dd2daa5e
• SCIP notification number (Sweden): 5cbf11d6-a042-4433-a820-a2725c6a1b8f

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +40 °C
• Ambient temperature (storage): -40 … +70 °C
• Ambient temperature UL (operation at U_N): -25 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 17.8g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (to adjacent devices of different types): Basic insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|EN 61373|UL 508

Technical data

• Control circuit - Input voltage range (high level): 4 … 6 VDC
• Control circuit - Input voltage range (low level): 0 … 1 VDC
• Control circuit - Nominal input current at U_N: 10 mA
• Control circuit - Nominal input voltage U_N: 5 VDC
• Load circuit - Circuit type: 3-wire connection|High-side switching
• Load circuit - Limiting continuous current: 0.5 A
• Load circuit - Nominal output voltage: 24 VDC
• Load circuit - Output closed-circuit current (without load) max.: 12.5mA
• Load circuit - Output voltage range: 20 … 30 VDC
• Load circuit - Switching frequency: ≤ 10 kHz
• Load circuit - Turn-off time: ≤ 30 µs
• Load circuit - Turn-on time: ≤ 15 µs
• Load circuit - Voltage drop: ≤ 1.2 VDC
• Signaling - Status indicator: Red LED
