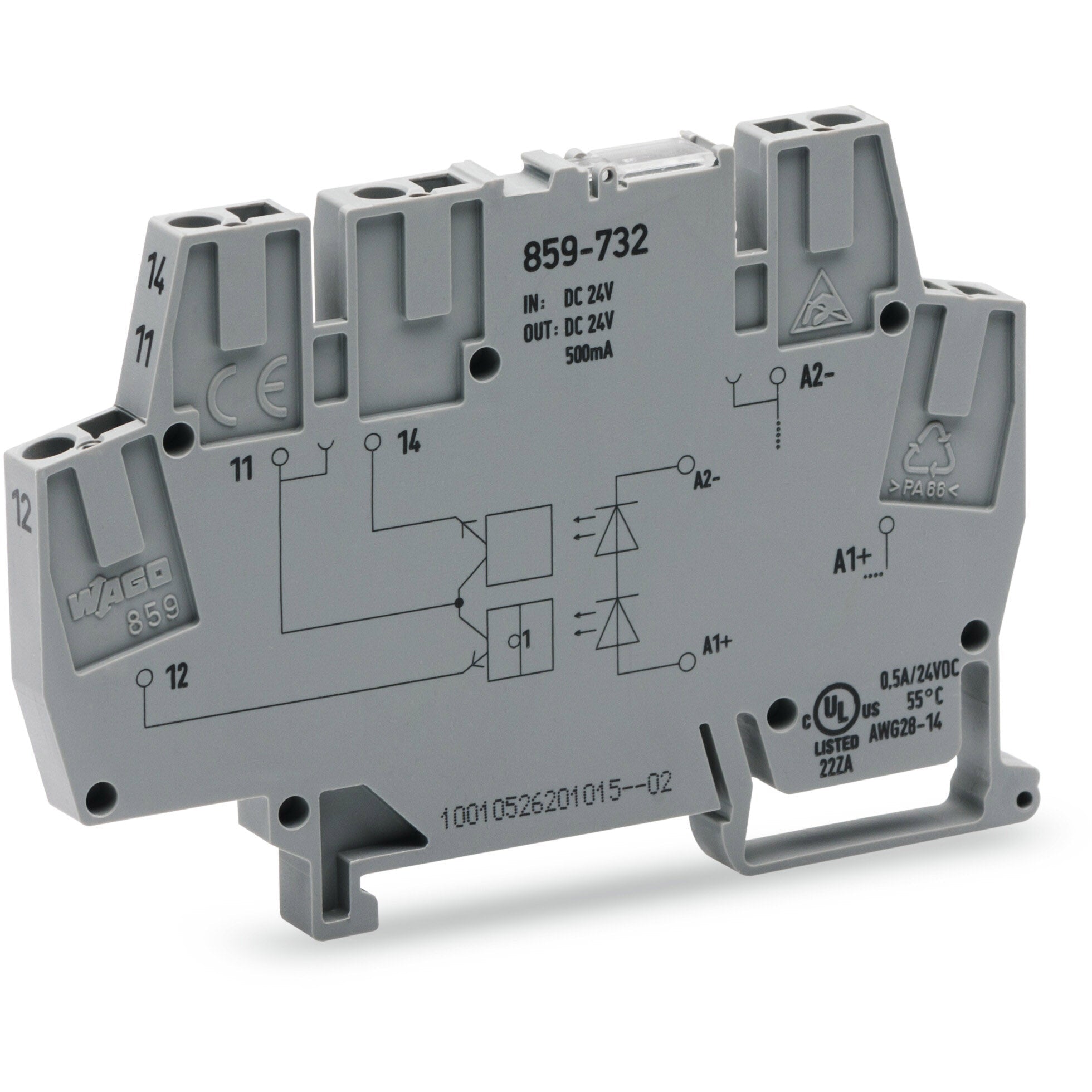

Wago - 859-732

Fixed-type solid-state / static relay (SSR) with red LED - 3-wire connection - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 15-42Vdc (24Vdc nom.) - Rated voltage 3Vdc-30Vdc (24Vdc nom.) output - Rated current 1A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859732

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|3-wire connection
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 2kHz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 1A (continuous)
• Rated Voltage (DC): 3Vdc-30Vdc (24Vdc nom.) output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 15-42Vdc (24Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 25μs / 0.000025s|(switching OFF) 150μs / 0.00015s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -25°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• ETIM code: EC001504
• GTIN code: 4055143605038
• Customs Tariff Number: 85365005000
• eClass code: 27-26-15-03
• Order code / Manufacturer SKU: 859-732
• Manufacturer product status: Commercialized
• Equivalent to: 859732
• EAN code: 4055143605038
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055143605038
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.14 … 2.5 mm² / 26 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.14 … 1.5 mm² / 26 … 16 AWG
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|7439-92-1
• REACH Candidate List Substance: Diboron trioxide|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 57a1bfce-837f-496f-bb87-0ee73be0f0e5
• SCIP notification number (Belgium): 755a3c6f-e35a-4e19-b0ee-512f065a91d0
• SCIP notification number (Bulgaria): e6d20177-d9e9-4a78-9d60-e43717e28e57
• SCIP notification number (Czech Republic): 9dfd4bfb-cc1c-49eb-a1c1-0b64d00f099b
• SCIP notification number (Denmark): 4c323740-8f20-466e-9042-0a076d1a8f0f
• SCIP notification number (Finland): 52d3c9ba-3d90-471c-a170-7c09458e40d2
• SCIP notification number (France): ad0e707f-7039-4e88-9ee3-ed5d487a2e2a
• SCIP notification number (Germany): ea40552f-92f5-46de-87e1-b73fe04e3250
• SCIP notification number (Hungary): 5cd57c02-e1c7-45e8-832f-d5c9a45f1673
• SCIP notification number (Italy): bf075a59-b693-4567-9db7-e82f4962eeb3
• SCIP notification number (Netherlands): 70584d00-5997-4863-bc45-b1f5a8b5a599
• SCIP notification number (Poland): e83132b9-f4af-4c38-9e4e-a25a8341e444
• SCIP notification number (Romania): b75c4036-3d4b-4a67-a7ab-5835dc0fe98b
• SCIP notification number (Sweden): 563094d4-9f00-4d26-b4a7-3150d5361492

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -25 … +85 °C
• Ambient temperature UL (operation at U_N): -25 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 19.6g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (to adjacent devices of different types): Reinforced insulation (safe isolation)
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|UL 508

Technical data

• Control circuit - Input current range: 3.5 … 9 mA
• Control circuit - Input voltage range: 14 … 60 VDC
• Control circuit - Input voltage range (high level): 15 … 42 VDC
• Control circuit - Input voltage range (low level): 0 … 5 VDC
• Control circuit - Nominal input current at U_N: 6 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: Changeover contact output
• Load circuit - Leakage current at rated voltage: ≤ 1.3 mA
• Load circuit - Limiting continuous current: 1 A
• Load circuit - Nominal output voltage: 24 VDC
• Load circuit - Output voltage range: 3 … 30 VDC
• Load circuit - Peak output current: 4A
• Load circuit - Switching current (min.): 0.5 mA
• Load circuit - Switching frequency: ≤ 2 kHz
• Load circuit - Turn-off time: ≤ 150 µs
• Load circuit - Turn-on time: ≤ 25 µs
• Load circuit - Voltage drop: ≤ 1.5 VDC
• Signaling - Status indicator: Red LED
