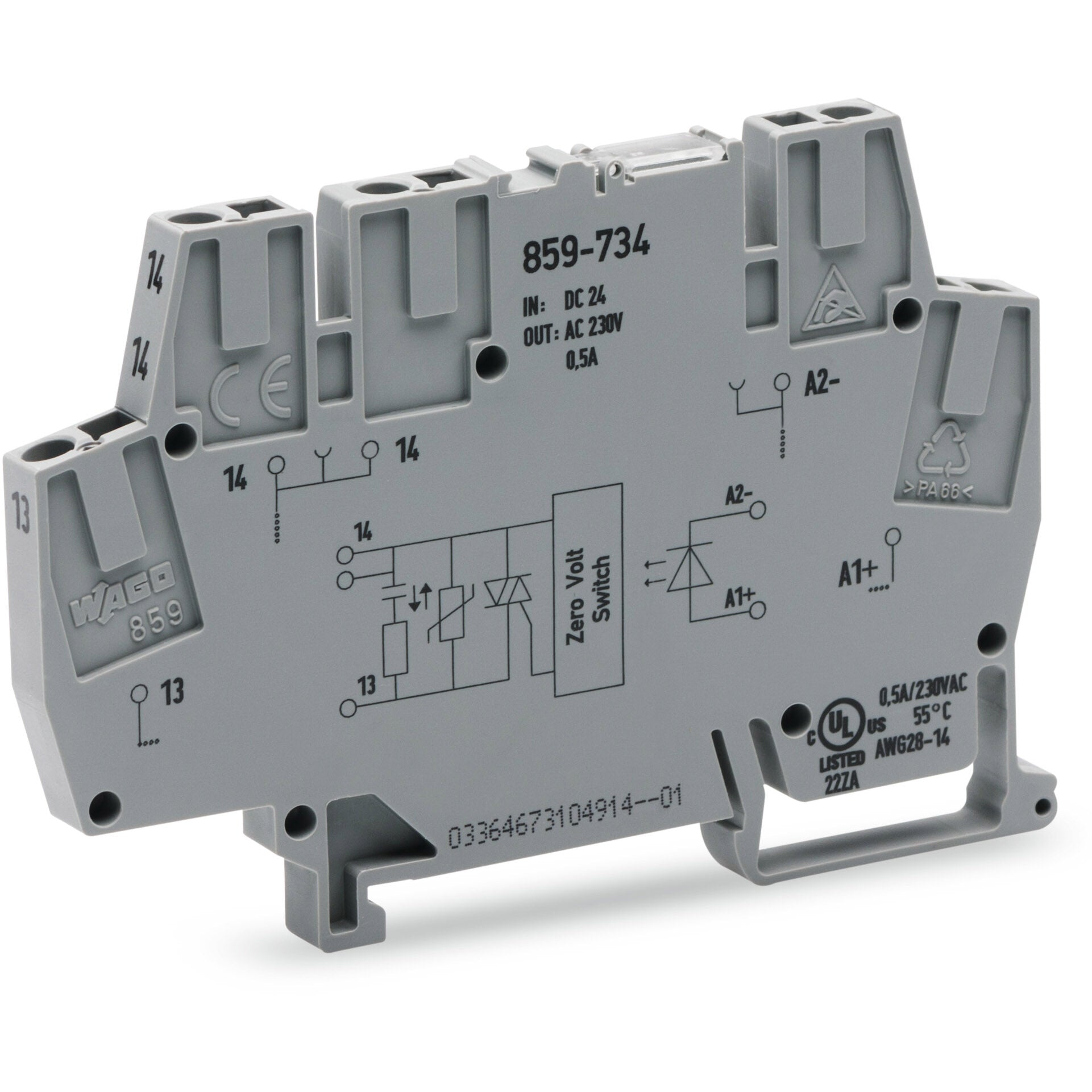

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - zero-cross switching - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 19-28.8Vdc (24Vdc nom.) - Rated voltage 12Vac-260Vac (230Vac nom.; 50/60Hz) output - Rated current 1A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859734

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|2-wire connection|zero-cross switching
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 50Hz / 60Hz main frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 1A (continuous)
• Rated voltage (AC): 12Vac-260Vac (230Vac nom.; 50/60Hz) output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 19-28.8Vdc (24Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 10ms / 0.010s|(switching OFF) 10ms / 0.010s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85365005000
• GTIN code: 4055144130027
• ETIM code: EC001504
• eClass code: 27-26-15-03
• Order code / Manufacturer SKU: 859-734
• Manufacturer product status: Commercialized
• Equivalent to: 859734
• EAN code: 4066966181890
• Compliant with standard(s): Safety and protection|- Overvoltage category -- III|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055144130027
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.14 … 2.5 mm² / 26 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.14 … 1.5 mm² / 26 … 16 AWG
• Solid conductor: 0.2 … 2.5 mm² / 24 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 2d0aafc9-69f4-4dfe-91a6-5392066639a2
• SCIP notification number (Belgium): d2e3bbb4-8e0e-4856-b782-f2d27110ca67
• SCIP notification number (Bulgaria): 1aeddf05-e4bb-42a6-8024-b74fc8dbce10
• SCIP notification number (Czech Republic): 039f9c15-9145-41d3-98f7-686100879009
• SCIP notification number (Denmark): 883bc000-50ee-4c40-8874-7868869e1042
• SCIP notification number (Finland): 563d3714-75c9-4f52-acdf-6f2546010694
• SCIP notification number (France): db3f26aa-b414-4b7a-8fb8-849f2571e5c8
• SCIP notification number (Germany): c022c058-8013-4a80-a4c2-6f63c4150232
• SCIP notification number (Hungary): 1612fe70-16f0-45c4-a93a-9465f512100c
• SCIP notification number (Italy): 3cce7617-5d8f-49a6-87be-01cd8af4c5b4
• SCIP notification number (Netherlands): 3ec2c466-ec96-4aa7-bfa1-9ba2139958f0
• SCIP notification number (Poland): dfe413ee-e39f-4ca9-b4d3-d0190017b7ea
• SCIP notification number (Romania): a01ee6cb-183d-4fef-a557-c4b4b1b89467
• SCIP notification number (Sweden): 19b6011e-cc4a-4fb0-8127-219ad4ff43b4

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Ambient temperature UL (operation at U_N): -40 … +40 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: light gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 20.2g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (to adjacent devices of different types): Basic insulation
• Overvoltage category: III
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V
• Type of circuits: Mains circuits

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|UL 508

Technical data

• Control circuit - Input current range: 2 … 9 mA
• Control circuit - Input voltage range: 16 … 30 VDC
• Control circuit - Input voltage range (high level): 19 … 28.8 VDC
• Control circuit - Input voltage range (low level): 0 … 5 VDC
• Control circuit - Nominal input current at U_N: 7 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: 2-wire connection|Zero-voltage switching
• Load circuit - Leakage current at rated voltage: ≤ 1 mA
• Load circuit - Limiting continuous current: 1 A
• Load circuit - Nominal output voltage: 230 VAC
• Load circuit - Output voltage range: 12 … 260 VAC (50 … 60 Hz)
• Load circuit - Peak output current: 30A
• Load circuit - Switching current (min.): 10 mA
• Load circuit - Switching frequency: 50 Hz / 60 Hz
• Load circuit - Turn-off time: ≤ 10 ms
• Load circuit - Turn-on time: ≤ 10 ms
• Load circuit - Voltage drop: ≤ 1.2 VAC
• Signaling - Status indicator: Red LED
