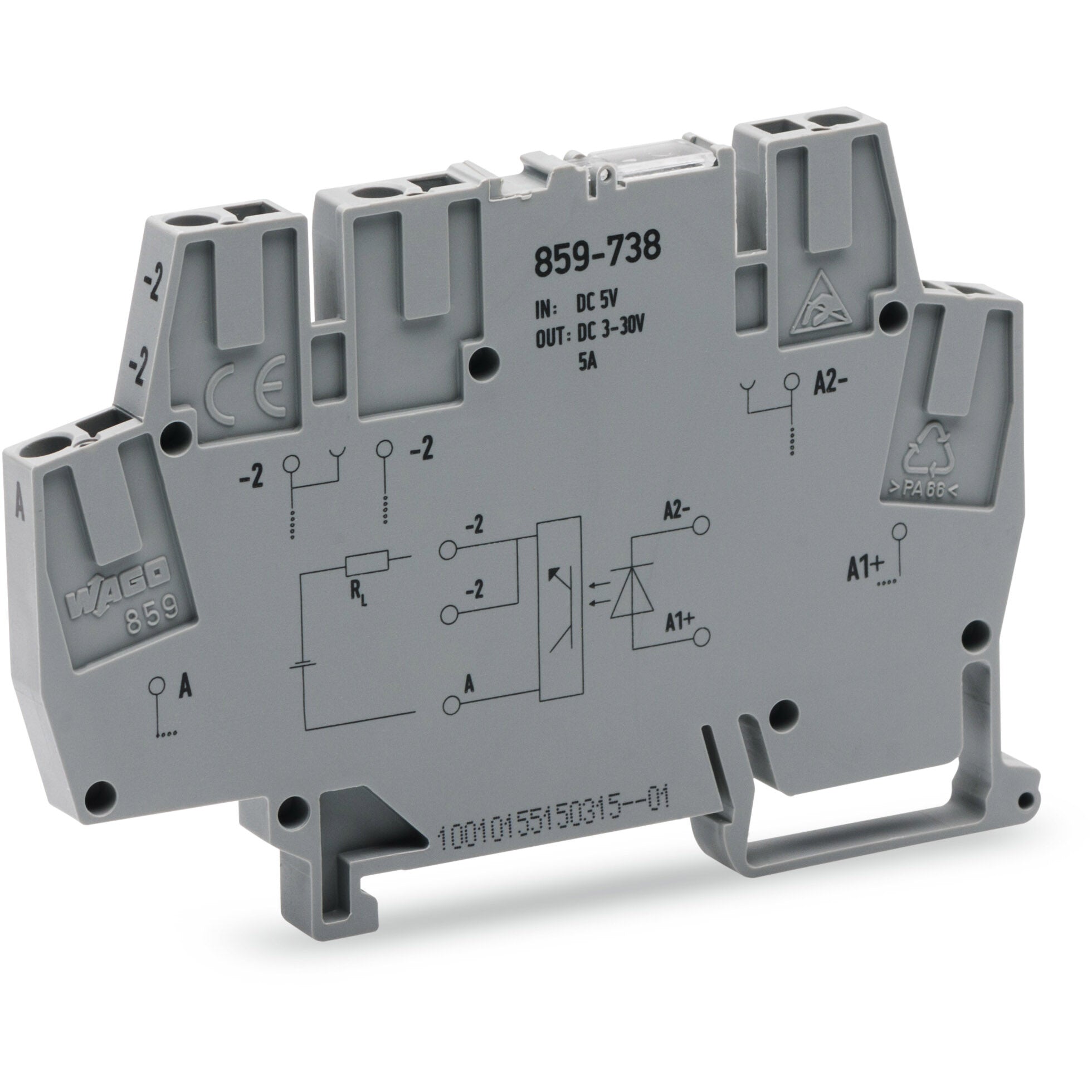

Wago - 859-738

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 4.5-6Vdc (5Vdc nom.) - Rated voltage 3Vdc-30Vdc (24Vdc nom.) output - Rated current 5A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859738

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|2-wire connection
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 100Hz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 5A (continuous)
• Rated Voltage (DC): 3Vdc-30Vdc (24Vdc nom.) output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 4.5-6Vdc (5Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 200μs / 0.0002s|(switching OFF) 450μs / 0.00045s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• GTIN code: 4055143605359
• eClass code: 27-26-15-03
• Customs Tariff Number: 85365005000
• ETIM code: EC001504
• Order code / Manufacturer SKU: 859-738
• Manufacturer product status: Commercialized
• Equivalent to: 859738
• EAN code: 4055143605359
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|RoHS compliant with exemption (7(a))|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055143605359
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)
• SCIP notification number (Austria): f6f98cb5-393a-4ed3-b182-e0ae03a73739
• SCIP notification number (Belgium): 59f16a29-4d42-43f0-a3b9-ffd999ad0f5f
• SCIP notification number (Bulgaria): 84bb8a94-0b7a-4834-97a3-614bcd83c4bb
• SCIP notification number (Czech Republic): a3131f20-69b1-42df-a745-43f8f64e2e29
• SCIP notification number (Denmark): 78eb2b10-0305-4016-ad47-b26bfa3852ac
• SCIP notification number (Finland): c38f97d2-4df3-474a-807e-2464e763a3b8
• SCIP notification number (France): c8f86971-e035-4aba-8e04-4f127e557c28
• SCIP notification number (Germany): f0051179-1382-4dc1-aff4-e29ab711fe1a
• SCIP notification number (Hungary): 4fb85026-e624-4a5d-9f38-12a00fb16a4f
• SCIP notification number (Italy): 68211a7b-f698-4b5f-b798-edaecd297a65
• SCIP notification number (Netherlands): 2d39234b-82fd-416e-bc44-579b54df273c
• SCIP notification number (Poland): 8aaafedc-3287-4ac6-ae32-04800535dd29
• SCIP notification number (Romania): 35ec1dfe-5eb3-4435-ae88-2256194a1534
• SCIP notification number (Sweden): f011945a-2bfb-4121-9b31-c9f25cb2c939

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 18.8g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (to adjacent devices of different types): Reinforced insulation (safe isolation)
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|EN 61373

Technical data

• Control circuit - Input voltage range (high level): 4.5 … 6 VDC
• Control circuit - Input voltage range (low level): 0 … 2 VDC
• Control circuit - Nominal input current at U_N: 8 mA
• Control circuit - Nominal input voltage U_N: 5 VDC
• Load circuit - Circuit type: 2-wire connection
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Nominal output voltage: 24 VDC
• Load circuit - Output voltage range: 3 … 30 VDC
• Load circuit - Peak output current: 25A
• Load circuit - Switching frequency: ≤ 100 Hz
• Load circuit - Turn-off time: ≤ 450 µs
• Load circuit - Turn-on time: ≤ 200 µs
• Load circuit - Voltage drop: ≤ 0.2 VDC
• Signaling - Status indicator: Red LED
