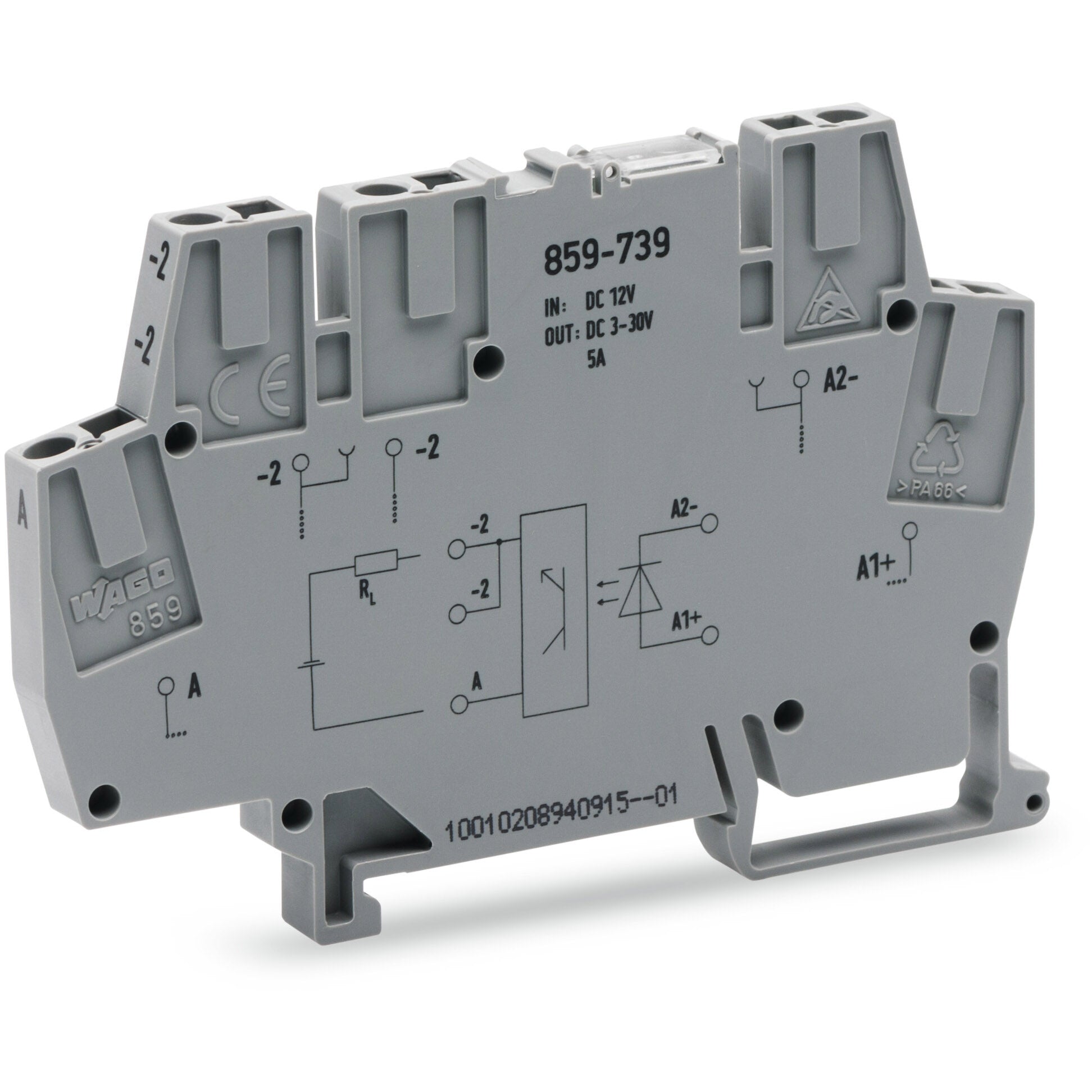

Fixed-type solid-state / static relay (SSR) with red LED - 2-wire connection - WAGO (859 series) - single-pole / single-phase / 1-pole (1P) - control voltage 9.6-14.4Vdc (12Vdc nom.) - Rated voltage 3Vdc-30Vdc (24Vdc nom.) output - Rated current 5A (continuous) - with CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - equivalent to 859739

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: red LED|2-wire connection
• Poles: single-pole / single-phase / 1-pole (1P)
• Frequency: 100Hz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 5A (continuous)
• Rated Voltage (DC): 3Vdc-30Vdc (24Vdc nom.) output
• Connection type: CAGE CLAMP connections
• Control Voltage (DC): 9.6-14.4Vdc (12Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 200μs / 0.0002s|(switching OFF) 450μs / 0.00045s
• Dimensions: H91mm x W6mm x D56mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• eClass code: 27-26-15-03
• Customs Tariff Number: 85365005000
• ETIM code: EC001504
• GTIN code: 4055143605397
• Order code / Manufacturer SKU: 859-739
• Manufacturer product status: Commercialized
• Equivalent to: 859739
• EAN code: 4055143605397
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (7(a) / 7(c)-I)|material group I|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4055143605397
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 pcs

Connection data

• Connection technology: CAGE CLAMP^®
• Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.08 … 1.5 mm² / 28 … 16 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 5 … 6 mm / 0.2 … 0.24 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I
• SCIP notification number (Austria): 39f3c423-b615-4841-aff8-23d7c9121c24
• SCIP notification number (Belgium): 6f4c2975-49a1-4639-be29-e53752b95fb0
• SCIP notification number (Bulgaria): bb74e391-e8c3-4041-9aeb-959a7ac3cd27
• SCIP notification number (Czech Republic): 4280c7fd-438b-4b0e-965d-ee6e17b3fd3a
• SCIP notification number (Denmark): fc47b11f-b287-4a4b-a461-8c2927756c55
• SCIP notification number (Finland): c2e510f2-c813-4187-91e1-69dffe2f9819
• SCIP notification number (France): 756fd24a-889f-46bd-a7d2-1f1c1d26ec5c
• SCIP notification number (Germany): 463e7149-00b3-4bab-b38c-2732020c99c8
• SCIP notification number (Hungary): 055de816-2613-4c2b-b7c7-6ec3393ec24a
• SCIP notification number (Italy): 50028556-3f23-470b-9feb-62fd7ace9062
• SCIP notification number (Netherlands): e3075e2c-132f-42d2-bc9c-b0af024674bf
• SCIP notification number (Poland): 312f46b2-60be-49c0-952c-8e69790d4d26
• SCIP notification number (Romania): 82e9b537-d7a1-4cd1-bc8f-e449d081aae3
• SCIP notification number (Sweden): 0e39ea5b-cf32-4042-8008-9e402cba1a55

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 20 K)

Material data

• Color: gray
• Fire load: 0.338MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 19.2g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 56 mm / 2.205 inches
• Height: 91 mm / 3.583 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (to adjacent devices of different types): Basic insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20; in connected state or when using 859-525 end plate
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61000-6-2|EN 61000-6-3|EN 61373

Technical data

• Control circuit - Input voltage range (high level): 9.6 … 14.4 VDC
• Control circuit - Input voltage range (low level): 0 … 5 VDC
• Control circuit - Nominal input current at U_N: 4 mA
• Control circuit - Nominal input voltage U_N: 12 VDC
• Load circuit - Circuit type: 2-wire connection
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Nominal output voltage: 24 VDC
• Load circuit - Output voltage range: 3 … 30 VDC
• Load circuit - Peak output current: 25A
• Load circuit - Switching frequency: ≤ 100 Hz
• Load circuit - Turn-off time: ≤ 450 µs
• Load circuit - Turn-on time: ≤ 200 µs
• Load circuit - Voltage drop: ≤ 0.2 VDC
• Signaling - Status indicator: Red LED
