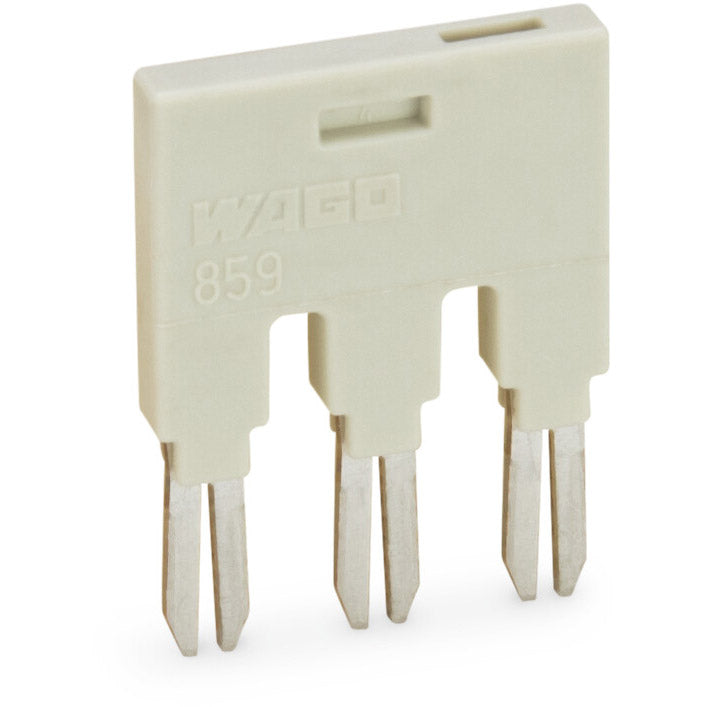

Wago - 859-403

Insulated push-in type comb-style jumper bar - 3-way - WAGO (859 series) - 3-poles (3P) - Rated current 18A - Light Gray color - equivalent to 859403

Specifications

• Primary brand: WAGO
• Functions: Insulated push-in type comb-style jumper bar
• Design: 3-way
• Poles: 3-poles (3P)
• Rated current: 18A
• Color: Light Gray
• Dimensions: H21.5mm x W16mm x D2.5mm
• Material: Polyamide (PA) 66
• ETIM code: EC002586
• GTIN code: 4066966272352
• Customs Tariff Number: 85366990990
• eClass code: 27-14-11-40
• Order code / Manufacturer SKU: 859-403
• Manufacturer product status: Commercialized
• Equivalent to: 859403
• EAN code: 4044918507240
• Compliant with standard(s): RoHS compliant|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: Insulated push-in type comb-style jumper bar - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-40
• eCl@ss 9.0: 27-14-11-40
• ETIM 8.0: EC002586
• ETIM 9.0: EC002586
• GTIN: 4066966272352
• Packaging type: Bag
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (25) pcs

Electrical data

• Rated current: 18A

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: light gray
• Fire load: 0.016MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 1.6g

Physical data

• Depth: 2.5 mm / 0.098 inches
• Height: 21.5 mm / 0.846 inches
• Width: 16 mm / 0.63 inches
