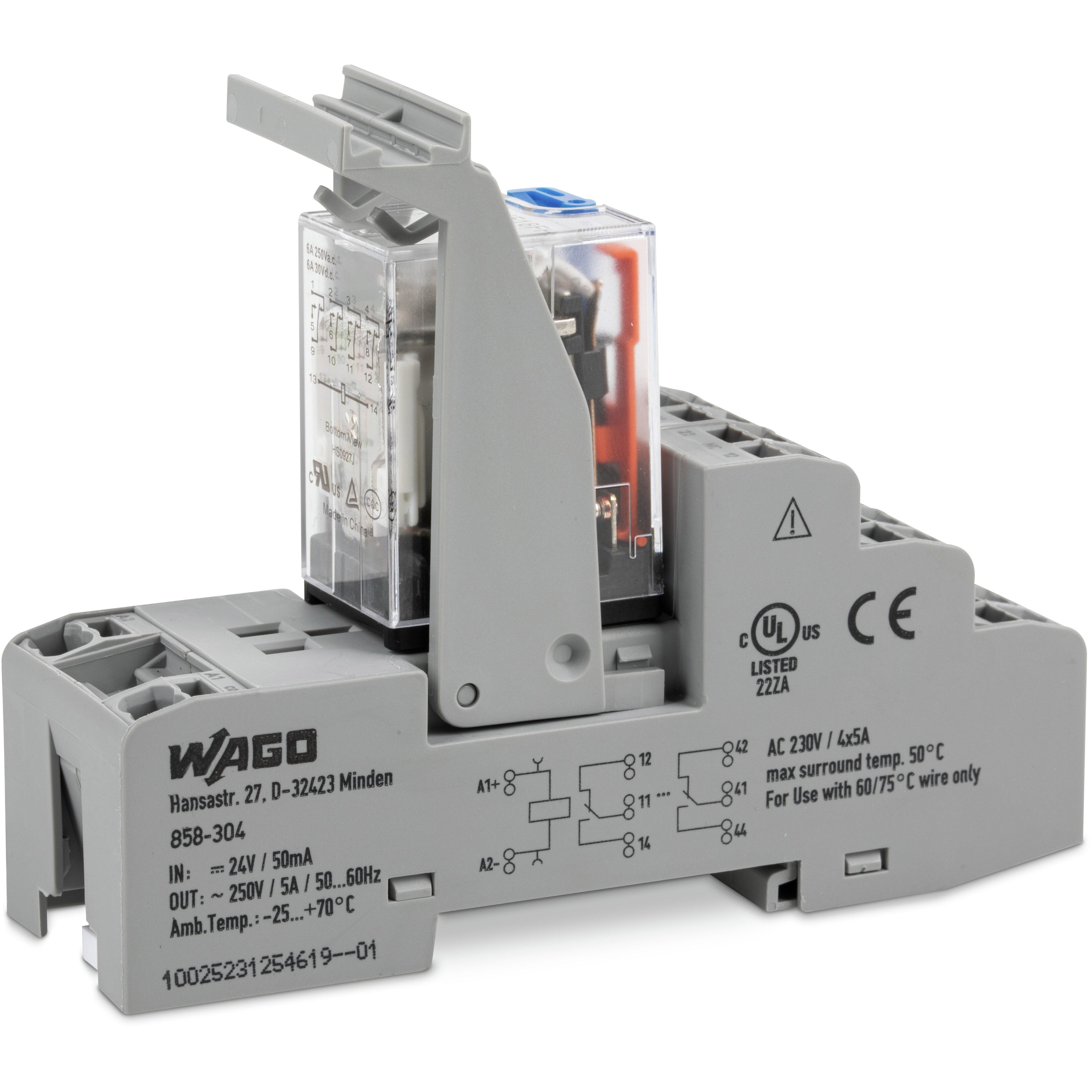

Wago - 858-308

Plug-in relay assembly with socket base + manual operation + red LED - WAGO (858 series) - 4-poles (4P) - control voltage 176-242Vdc (220Vdc nom.; 0.8...1.1 x Uc) - 4C/O / 4PDT (4 Pole Double Throw) contact - Electromechanical design - Rated current 5A (continuous) / 1A (240Vac; AC-15) / 2A (24Vdc; DC-13) - with Push-in CAGE CLAMP connections - DIN-35 rail mounting (31mm width) - IP20 - material Silver-Cerium (AgCe) contacts - equivalent to 858308

Specifications

• Primary brand: WAGO
• Functions: Plug-in relay assembly
• Design: socket base|manual operation|red LED|Electromechanical design|12V / 100mA recommended minimum switching load
• Poles: 4-poles (4P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 5A (continuous)|1A (240Vac; AC-15)|2A (24Vdc; DC-13)|15A (4s) AC inrush maximum current
• Rated operating voltage (Ue): 300V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 2.5kV
• Connection type: Push-in CAGE CLAMP connections
• Control Voltage (DC): 176-242Vdc (220Vdc nom.; 0.8...1.1 x Uc)
• Mounting mode: DIN-35 rail
• Response time: (OFF=>ON / contacts closing) 25ms / 0.025s|(ON=>OFF / contacts opening) 25ms / 0.025s
• Contacts type: 4C/O / 4PDT (4 Pole Double Throw) contact
• Dimensions: H97mm x W31mm x D73mm|31mm width
• Material: Silver-Cerium (AgCe) contacts
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-85% relative humidity (RH)
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 20 000 000operations
• ETIM code: EC001437
• Customs Tariff Number: 85364900990
• GTIN code: 4055143568203
• eClass code: 27-37-16-01
• Order code / Manufacturer SKU: 858-308
• Manufacturer product status: Commercialized
• Equivalent to: 858308
• EAN code: 4055143568203
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61010-2-201|EN 61373|EN 61810-1|UL 508 (max. 50°C)|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Plug-in relay assembly - WAGO

Basic relay

• WAGO Basic Relay: 858-166

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4055143568203
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 5 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
• Note (conductor cross-section): 2 x 0.34 … 2 x 1.5 mm² / 1 x 2.5 mm² / 2 x 22 … 2 x 16 AWG
• Solid conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Ambient temperature UL (operation at U_N): -25 … 50 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 %
• Temperature range of connection cable: ≥ (T_ambient + 25 K)

Material data

• Fire load: 1.278MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 93.4g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 73 mm / 2.874 inches
• Height: 97 mm / 3.819 inches
• Width: 31 mm / 1.22 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 1.5 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 1.5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (load/load circuit): Basic insulation
• Insulation type (open contact): Functional insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated impulse withstand voltage: 2.5kV
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61810-1|EN 61373|UL 508 (max. 50 °C)

Technical data

• Control circuit - Input voltage range: -20 … +10 %
• Control circuit - Nominal input current at U_N: 5 mA
• Control circuit - Nominal input voltage U_N: 220 VDC
• Load circuit - Bounce time (typ.): 4ms
• Load circuit - Contact material (relay): AgCe
• Load circuit - Drop-out time (typ.): 25ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 15 A / 4 s
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Mechanical life: 20 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 4
• Load circuit - Pull-in time (typ.): 25ms
• Load circuit - Recommended minimum load: 12 V / 100 mA
• Load circuit - Switching capacity: AC-15: 1 A / 240 VAC; DC-13: 2 A / 24 VDC
• Load circuit - Switching power (resistive) max.: AC 1250 VA; DC (see load limit curve)
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED|Mechanical
