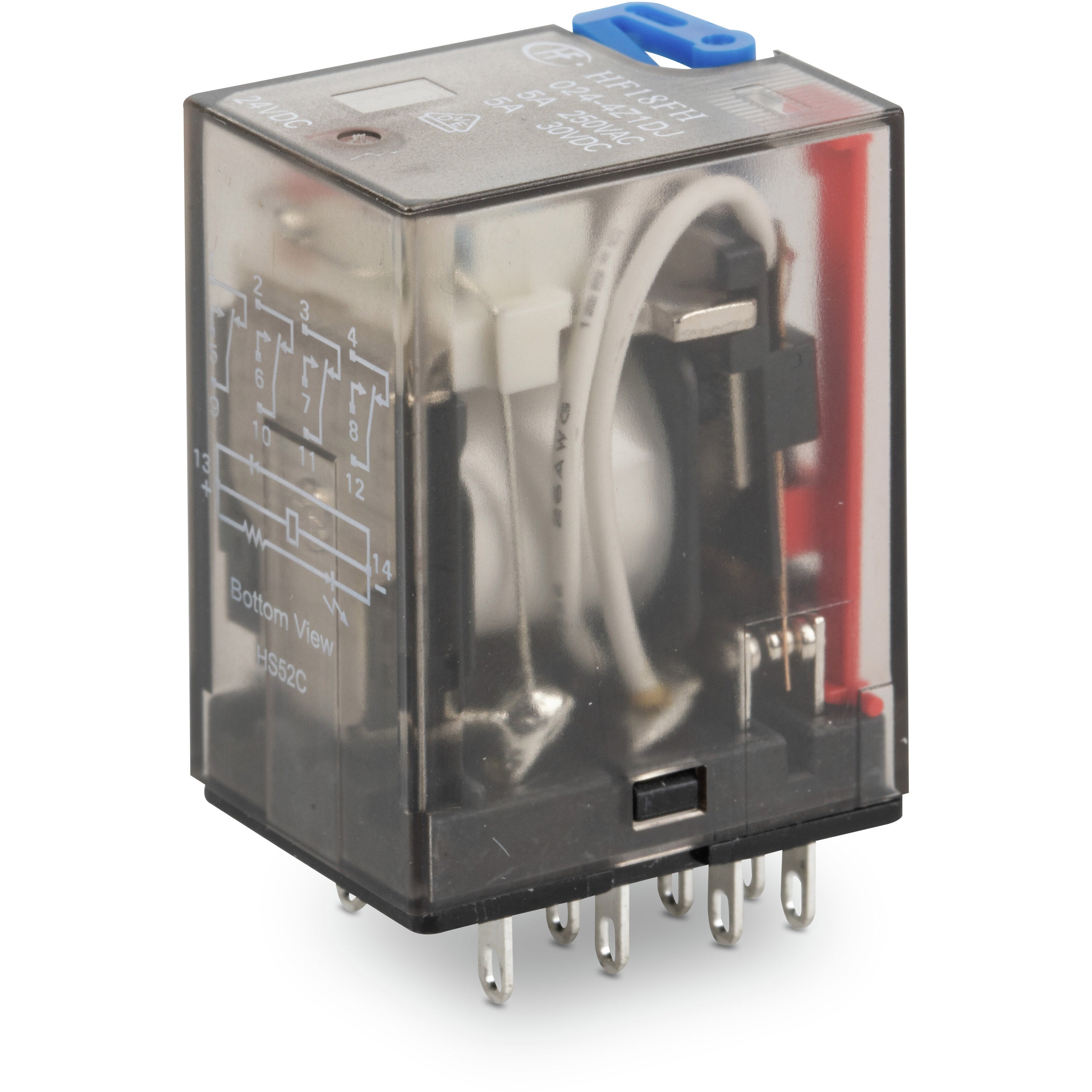

Replacement plug-in basic relay with manual operation + red LED - WAGO (858 series) - 2-poles (2P) - control voltage 230Vac - 2C/O / DPDT (Double Pole Double Throw) contact - Electromechanical design - Rated current 12A (continuous) / 1.5A (250Vac; AC-15) / 0.1A (24Vdc; DC-13) - with Push-in connections - Plug-in mounting - IP20 - material Silver-Nickel (AgNi) contacts - equivalent to 858189

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in basic relay
• Design: manual operation|red LED|Electromechanical design|10V / 5mA / 300mW recommended minimum switching load
• Poles: 2-poles (2P)
• Rated current: 12A (continuous)|1.5A (250Vac; AC-15)|0.1A (24Vdc; DC-13)|24A (4s) AC inrush maximum current
• Rated voltage (AC): 250Vac max. (switching voltage)
• Connection type: Push-in connections
• Control Voltage (AC): 230Vac
• Mounting mode: Plug-in
• Response time: (OFF=>ON / contacts closing) 10ms / 0.010s|(ON=>OFF / contacts opening) 8ms / 0.008s
• Contacts type: 2C/O / DPDT (Double Pole Double Throw) contact
• Dimensions: H35.6mm x W21.2mm x D27.5mm
• Material: Silver-Nickel (AgNi) contacts
• Ambient air temperature for operation: -40°C...+55°C
• Ambient air temperature for storage: -40°C...+85°C
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 20 000 000operations
• Customs Tariff Number: 85364900990
• eClass code: 27-37-16-01
• ETIM code: EC001437
• GTIN code: 4055143693264
• Order code / Manufacturer SKU: 858-189
• Manufacturer product status: Commercialized
• Equivalent to: 858189
• EAN code: 4055143693264
• Compliant with standard(s): EN 61810-1|RoHS compliant
• Location of origin: Germany
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in basic relay - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4055143693264
• Packaging type: box
• PU (SPU): 3 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +55 °C
• Ambient temperature (storage): -40 … +85 °C

Material data

• Note (material data):
  Information on material specifications can be found here

• Weight: 31.5g

Mechanical data

• Mounting type: Pluggable module

Physical data

• Depth: 27.5 mm / 1.083 inches
• Height from the surface: 35.6 mm / 1.402 inches
• Width: 21.2 mm / 0.835 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 2.5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1.5 kVrms
• Protection type: IP20

Standards and specifications

• Standards/specifications: EN 61810-1

Technical data

• Control circuit - Nominal input current at U_N: 11 mA
• Control circuit - Nominal input voltage U_N: 230 VAC
• Load circuit - Contact material (relay): AgNi
• Load circuit - Drop-out time (typ.): 8ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 24 A / 4 s
• Load circuit - Limiting continuous current: 12 A
• Load circuit - Mechanical life: 20 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 2
• Load circuit - Pull-in time (typ.): 10ms
• Load circuit - Recommended minimum load: 10 V / 5 mA / 300 mW
• Load circuit - Switching capacity: AC-15: 1.5 A / 240 VAC; DC-13: 0.1 A / 250 VDC
• Load circuit - Switching frequency with/without load (max.): 20 min^-1 / 200 min^-1
• Load circuit - Switching power (resistive) max.: AC 3000 VA; DC (see load limit curve)
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED|Mechanical
