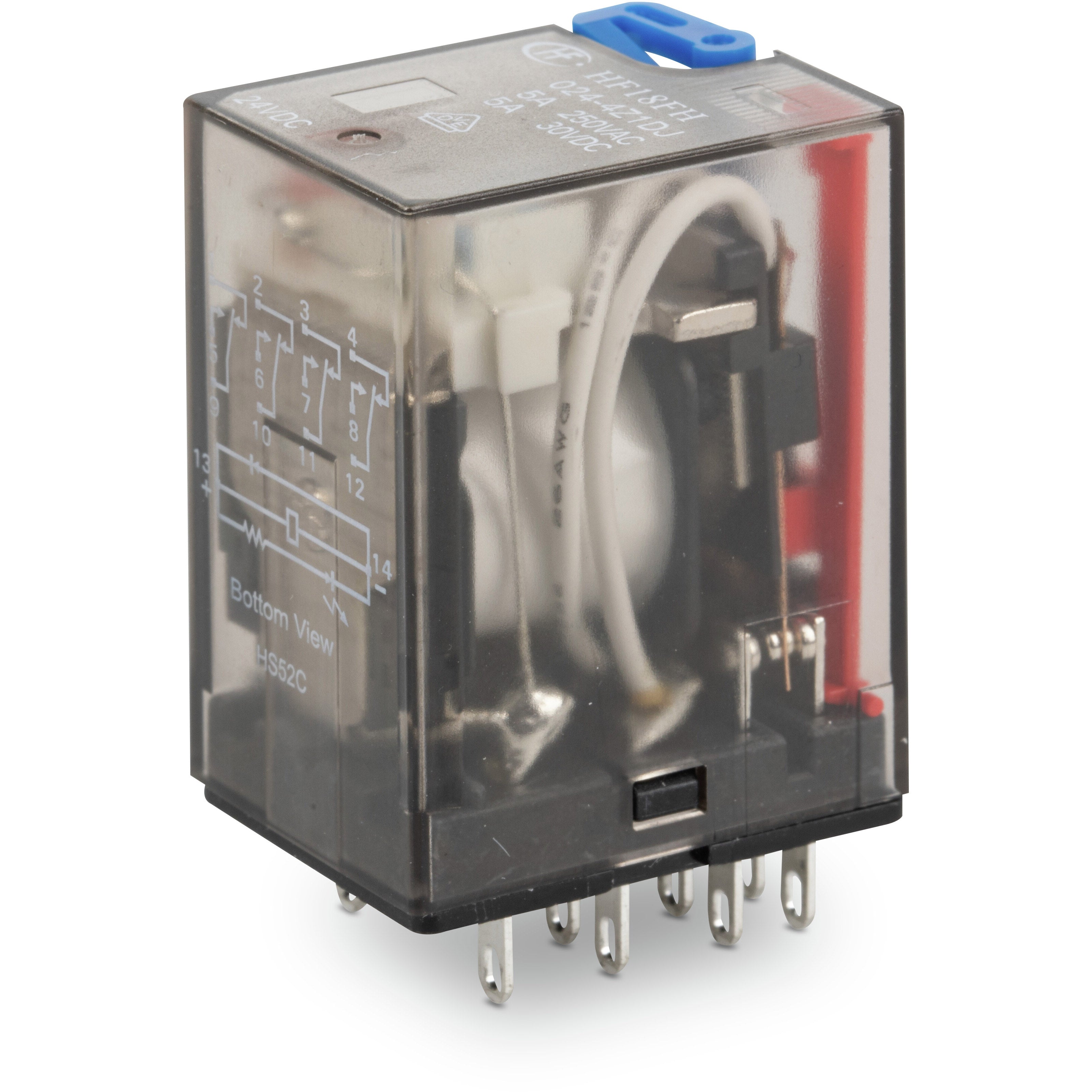

Replacement plug-in relay with manual operation + red LED - WAGO (858 series) - 4-poles (4P) - control voltage 24Vdc - 4C/O / 4PDT (4 Pole Double Throw) contact - Electromechanical design - Rated current 5A (continuous) - with Push-in connections - Plug-in mounting - IP20 - material Silver-Cerium (AgCe) contacts - equivalent to 858150

Specifications

• Primary brand: WAGO
• Functions: Replacement plug-in relay
• Design: manual operation|red LED|Electromechanical design|12V / 100mA recommended minimum switching load
• Poles: 4-poles (4P)
• Rated current: 5A (continuous)|15A (4s) AC inrush maximum current
• Rated voltage (AC): 250Vac max. (switching voltage)
• Connection type: Push-in connections
• Control Voltage (DC): 24Vdc
• Mounting mode: Plug-in
• Response time: (OFF=>ON / contacts closing) 25ms / 0.025s|(ON=>OFF / contacts opening) 25ms / 0.025s
• Contacts type: 4C/O / 4PDT (4 Pole Double Throw) contact
• Dimensions: H35mm x W21.5mm x D28mm
• Material: Silver-Cerium (AgCe) contacts
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Electrical durability (with load): 100 000operations
• Mechanical durability (at no load): 20 000 000operations
• GTIN code: 4055143531931
• ETIM code: EC001437
• Customs Tariff Number: 85364900990
• eClass code: 27-37-16-01
• Order code / Manufacturer SKU: 858-150
• Manufacturer product status: Commercialized
• Equivalent to: 858150
• EAN code: 4055143531931
• Compliant with standard(s): EN 61810-1|RoHS compliant
• Location of origin: China
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Replacement plug-in relay - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4055143531931
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 3 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -40 … +80 °C

Material data

• Note (material data):
  Information on material specifications can be found here

• Weight: 35.2g

Mechanical data

• Mounting type: Pluggable module

Physical data

• Depth: 28 mm / 1.102 inches
• Height from the surface: 35 mm / 1.378 inches
• Width: 21.5 mm / 0.846 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 1.5 kVrms
• Dielectric strength (load/load circuit) (AC, 1 min): 1.5 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Protection type: IP20

Standards and specifications

• Standards/specifications: EN 61810-1

Technical data

• Control circuit - Nominal input current at U_N: 37 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Bounce time (typ.): 4ms
• Load circuit - Contact material (relay): AgCe
• Load circuit - Drop-out time (typ.): 25ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 100 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 15 A / 4 s
• Load circuit - Limiting continuous current: 5 A
• Load circuit - Mechanical life: 20 x 10⁶ switching operations
• Load circuit - Number of changeover/switchover contacts: 4
• Load circuit - Pull-in time (typ.): 25ms
• Load circuit - Recommended minimum load: 12 V / 100 mA
• Load circuit - Switching power (resistive) max.: AC 1250 VA; DC (see load limit curve)
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Red LED|Mechanical
