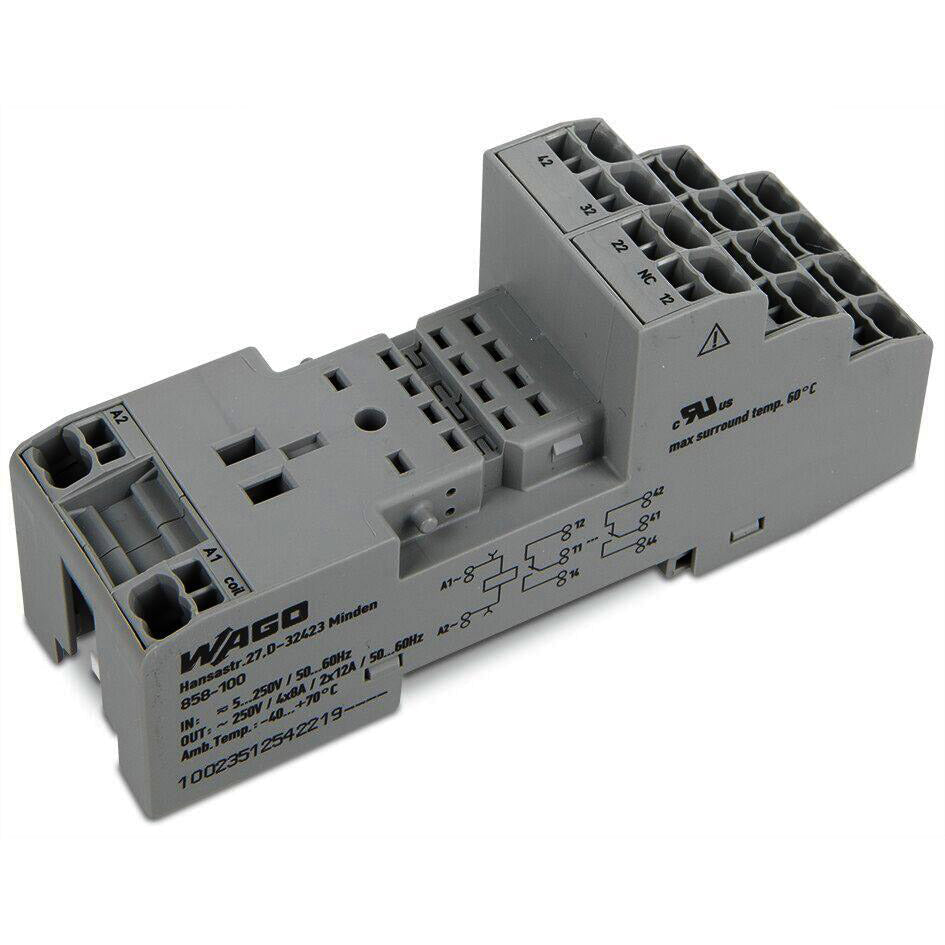

Rly. base / socket module with lever - for 4C/O - WAGO (858 series) - control voltage 250Vac/250Vdc - Rated current 12A (continuous) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (31mm width) - IP20 - equivalent to 858100

Specifications

• Primary brand: WAGO
• Functions: Rly. base / socket module
• Design: lever|for 4C/O
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 12A (continuous)
• Rated operating voltage (Ue): 250V
• Rated impulse voltage (Uimp): 4kV
• Connection type: Push-in CAGE CLAMP spring connections
• Control Voltage (AC): 250Vac
• Control Voltage (DC): 250Vdc
• Mounting mode: DIN-35 rail
• Dimensions: H97mm x W31mm x D39mm
• Net Width (mm): 31mm
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85366990990
• eClass code: 27-37-16-03
• ETIM code: EC001456
• GTIN code: 4055143669078
• Order code / Manufacturer SKU: 858-100
• Manufacturer product status: Commercialized
• Equivalent to: 858100
• EAN code: 4055143669078
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|EN 61010-2-201|UR|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03084|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Vol.2 Sec.1|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: China
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Product title: Rly. base / socket module - lever - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85366990990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-03
• eCl@ss 9.0: 27-37-16-03
• ETIM 8.0: EC001456
• ETIM 9.0: EC001456
• GTIN: 4055143669078
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 10 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
• Note (conductor cross-section): 2 x 0.34 … 2 x 1.5 mm² / 1 x 2.5 mm² / 2 x 22 … 2 x 16 AWG
• Solid conductor: 0.34 … 1.5 mm² / 22 … 16 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +70 °C
• Ambient temperature (storage): -40 … +80 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 30 K)

Material data

• Fire load: 1.119MJ
• Note (material data):
  Information on material specifications can be found here

• Weight: 56.5g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: The specified technical data are maximum values. They may be limited by the accessories used.

Physical data

• Depth from upper-edge of DIN-rail: 39 mm / 1.535 inches
• Height: 97 mm / 3.819 inches
• Width: 31 mm / 1.22 inches

Safety and protection

• Dielectric strength (control/load circuit) (AC, 1 min): 3 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Insulation type (between adjacent devices of the same type): Basic insulation
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (load/load circuit): Basic insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|UR

Technical data

• Control circuit - Input voltage range: 0 … 250 VAC/VDC
• Control circuit - Nominal frequency range: 50 … 60 Hz
• Control circuit - Nominal input voltage U_N: 5 … 250 VAC/VDC
• Load circuit - Limiting continuous current: 8 A (4 x); 12 A (2 x)
• Load circuit - Nominal frequency range: ≤60 Hz
• Load circuit - Number of changeover/switchover contacts: 4
• Load circuit - Switching Voltage, Max.: 250 VAC; 250 VDC
