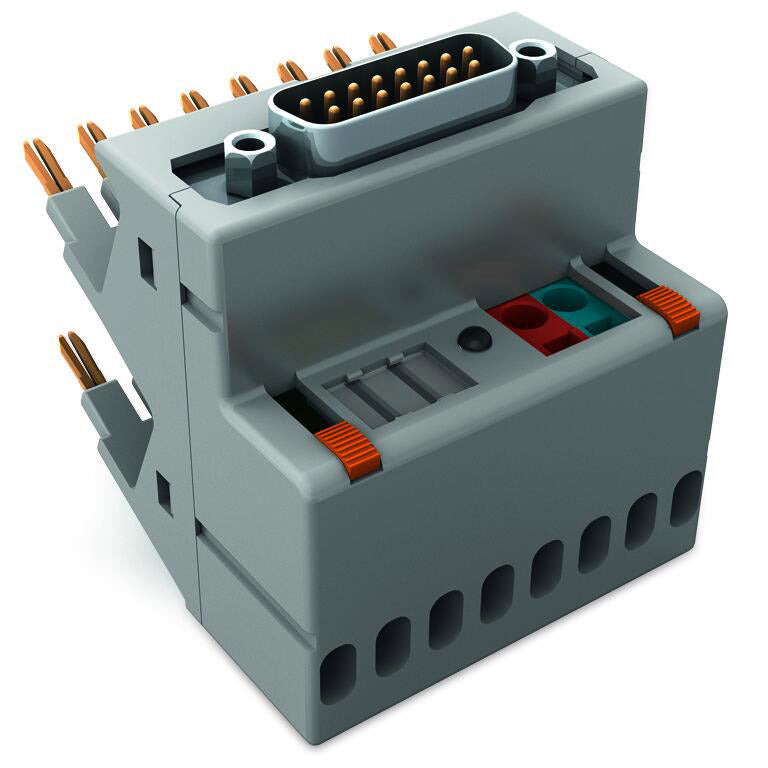

Interface module - high-side switching input - WAGO (857 series) - 15-poles (15P) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with 15-pin D-sub male connector (system) + 16-pin jumper slot (field) - Plug-in mounting - IP20 - rated for -25°C...+70°C ambient - equivalent to 857986

Specifications

• Primary brand: WAGO
• Functions: Interface module
• Design: high-side switching input
• Poles: 15-poles (15P)
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Connection type: 15-pin D-sub male connector (system)|16-pin jumper slot (field)|spring CAGE CLAMP 2-pin for 0.08...2.5mm2 cables (supply)
• Mounting mode: Plug-in
• Digital inputs: 8 x digital inputs (high-side switching)
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Customs Tariff Number: 85369010000
• GTIN code: 4045454995195
• eClass code: 19-17-90-01
• ETIM code: EC002780
• Order code / Manufacturer SKU: 857-986
• Manufacturer product status: Commercialized
• Equivalent to: 857986
• EAN code: 4045454995195
• Compliant with standard(s): DNV|Approvals for marine applications|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 40179_B0|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAA00001D1|RoHS compliant with exemption (6(c))|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Interface module - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 19-17-90-01
• eCl@ss 9.0: 19-17-90-01
• ETIM 8.0: EC002780
• ETIM 9.0: EC002780
• GTIN: 4045454995195
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Connection type 1: System
• Connection 1 - Pluggable connector: D-subminiature male connector
• Connection 1 - Pole number 1: 15
• Connection 2 - Connection type: Field
• Connection 2 - Design 2: Plug for jumper slot
• Connection 2 - Pole number 2: 16
• Connection 3 - Connection technology: CAGE CLAMP^®
• Connection 3 - Connection type: Power supply
• Connection 3 - Fine-stranded conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 3 - Pole number 3: 2
• Connection 3 - Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Connection 3 - Strip length: 5 … 6 mm / 0.2 … 0.24 inches
• Performance level: 2

Electrical data

• Circuit type: High-side switching input
• Contact resistance: ≤ 10 mΩ
• Inputs/outputs: 8-channel digital input
• Limiting continuous current: 1 A
• Nominal operating voltage: 24 VDC
• Operating voltage range: ±30 %
• Status indicator: Green LED
• Total current: 3A

Environmental Product Compliance

• CAS-No.: 25550-51-0|7439-92-1
• REACH Candidate List Substance: 4-Methyl-1,2-cyclohexanedicarboxylic anhydride|Lead
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)
• SCIP notification number (Austria): 663a877b-9b76-4542-b096-037e10f0c686
• SCIP notification number (Belgium): e39bb783-c3c7-4add-ad69-ed6ddf9c5787
• SCIP notification number (Bulgaria): 6668660b-10ae-4fcf-854c-ecc59edb7a93
• SCIP notification number (Czech Republic): 17ee4a58-9c2e-4086-a7d0-9a9bb22b59d8
• SCIP notification number (Denmark): f76607d9-7779-4788-9834-14f3a8f6c59b
• SCIP notification number (Finland): 9842c522-8ea6-42d0-a43e-2784c076f96c
• SCIP notification number (France): 0ba05f8d-e89c-4ae2-b7b6-bcf5599d8202
• SCIP notification number (Germany): 8c611a44-c947-433a-87c6-f590ad4b8427
• SCIP notification number (Hungary): 175a2d46-fb90-42d0-a0a0-525f6cb8e1ed
• SCIP notification number (Italy): 8bb27a39-7bcc-42c0-b9c3-e8bca4ee0f41
• SCIP notification number (Netherlands): 3c5cd1d0-d150-47f4-b493-90ac68e8c0d2
• SCIP notification number (Poland): 6e75cc26-14b8-4fa0-8d72-f59d099d1d8b
• SCIP notification number (Romania): 53cf1466-9fde-4591-a8e8-856e02b7a0dd
• SCIP notification number (Sweden): c24c0314-367e-4829-a493-4ebea9cb60f0

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Fire load: 0.668MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 48.2g

Mechanical data

• Mounting type: Pluggable module

Notes

• Note: The specified technical data are maximum values. They may be limited by the accessories used.

Safety and protection

• Dielectric strength (contact/contact) (AC, 1 min): 0.5kV_rms
• Protection type: IP20

Standards and specifications

• Standards/specifications: DNV
