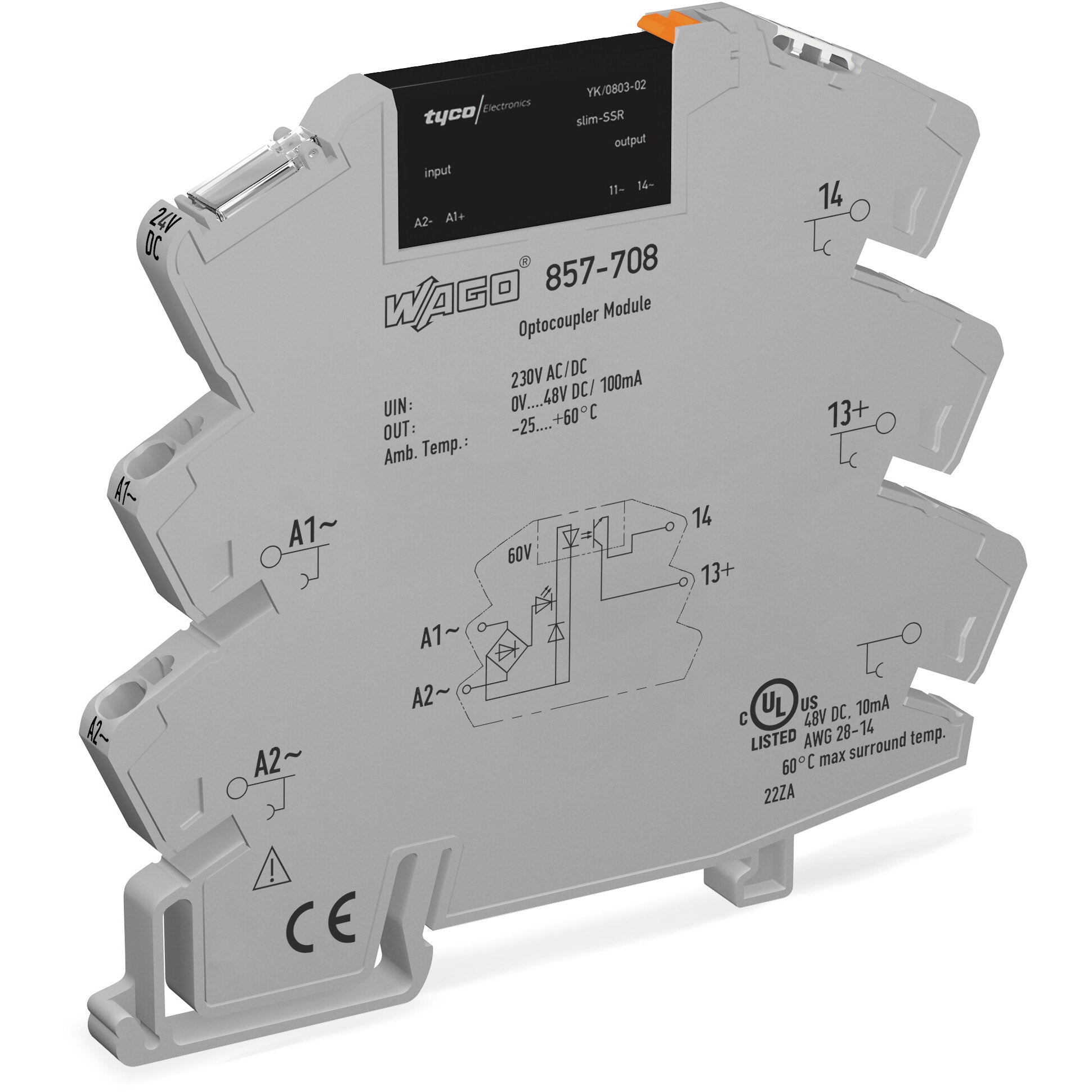

Name: Wago - 857-708
Brand: WAGO
SKU: 8570708
Price: 51.08 USD
Availability: InStock

$51.08

Plug-in input solid-state / static relay (SSR) with pre-assembled socket base + yellow LED - 2-wire connection - WAGO (857 series) - single-pole / single-phase / 1-pole (1P) - control voltage 200-253Vac (230Vac nom.)/200-253Vdc (230Vdc nom.) - Rated voltage 0-48Vdc (24Vdc nom.) output - Rated current 0.1A (continuous) - with Push-in CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - IP20 - equivalent to 857708

Specifications

Primary brand: WAGO
Functions: Plug-in input solid-state / static relay (SSR)
Design: pre-assembled socket base|yellow LED|2-wire connection
Poles: single-pole / single-phase / 1-pole (1P)
Frequency: 20Hz switching frequency
Temperature: Processing temperature -25°C...+50°C
Rated current: 0.1A (continuous)
Rated Voltage (DC): 0-48Vdc (24Vdc nom.) output
Connection type: Push-in CAGE CLAMP connections
Control Voltage (AC): 200-253Vac (230Vac nom.)
Control Voltage (DC): 200-253Vdc (230Vdc nom.)
Mounting mode: DIN-35 rail
Response time: (switching ON) 4.5ms / 0.0045s|(switching OFF) 10ms / 0.010s
Dimensions: H94mm x W6mm x D81mm|6mm width
Material: Polyamide (PA) 66
Ambient air temperature for operation: -20°C...+60°C
Ambient air temperature for storage: -40°C...+70°C
Humidity: 5-85% relative humidity (RH; non-condensing)
eClass code: 27-26-15-03
ETIM code: EC001504
GTIN code: 4045454835514
Customs Tariff Number: 85365005000
Order code / Manufacturer SKU: 857-708
Manufacturer product status: Commercialized
Equivalent to: 857708
EAN code: 4045454835514
Compliant with standard(s): Safety and protection|- Overvoltage category -- III|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for hazardous areas|- ATEX - DEKRA EXAM GmbH - EN 60079-0 - certificate BVS_14_ATEX_E_091_X (II 3G Ex ec nC IIC T4 Gc; II 3G Ex ec IIC T4 Gc)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312304000757 (Ex ec IIC T4 Gc)|- IECEx - DEKRA EXAM GmbH - IEC 60079-0 - certificate IECEX_BVS_14.0079X_Issue_3 (Ex ec nC IIC T4 Gc; Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX002X_ec|RoHS compliant with exemption (7(a) / 7(c)-I)|material group I|V-0 flammability rating
Location of origin: Germany
Degree of pollution: 2
Level 1 category: Automation components
Level 2 category: Control components
Level 3 category: Control relays
Product title: Plug-in input solid-state / static relay (SSR) - WAGO

Basic relay

WAGO Basic Relay: 857-165

Commercial data

Country of origin: DE
Customs tariff number: 85365005000
ECCN: NO US CLASSIFICATION
eCl@ss 10.0: 27-26-15-03
eCl@ss 9.0: 27-26-15-03
ETIM 8.0: EC001504
ETIM 9.0: EC001504
GTIN: 4045454835514
Packaging type: Box
Product Group: 6 (INTERFACE ELECTRONIC)
PU (SPU): 25 (1) pcs

Connection data

Connection technology: Push-in CAGE CLAMP^®
Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Fine-stranded conductor; with insulated ferrule: 0.34 … 1.5 mm² / 22 … 16 AWG
Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

CAS-No.: 7439-92-1|79-94-7
REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Lead
RoHS Compliance Status: Compliant,With Exemption
RoHS Exemption: 7(a)|7(c)-I
SCIP notification number (Bulgaria): f70c9b06-cb20-4326-bdd8-6063a3a2bad4
SCIP notification number (Czech Republic): f644b729-cf8b-4021-bc1e-9c846bb94cc8

Environmental requirements

Ambient temperature (operation at U_N): -20 … +60 °C
Ambient temperature (storage): -40 … +70 °C
Operating altitude (max.): 2000m
Processing temperature: -25 … +50 °C
Relative humidity: 5 … 85 % (no condensation permissible)
Temperature range of connection cable: ≥ (T_ambient + 30 K)

Material data

Color: gray
Fire load: 0.64MJ
Flammability class per UL94: V0
Insulation material (main housing): Polyamide (PA66)
Material group: I
Note (material data):
Information on material specifications can be found here
Weight: 30.7g

Mechanical data

Mounting position: horizontal (standing/lying); vertical
Mounting type: DIN-35 rail

Notes

Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

Depth from upper-edge of DIN-rail: 81 mm / 3.189 inches
Height: 94 mm / 3.701 inches
Width: 6 mm / 0.236 inches

Safety and protection

Dielectric strength (control/load circuit) (AC, 1 min): 3.51 kVrms
Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
Insulation type (control/load circuit): Reinforced insulation (safe isolation)
Insulation type (to adjacent devices of different types): Basic insulation
Overvoltage category: III
Pollution degree: 2
Protection type: IP20
Rated voltage: 300V

Standards and specifications

Standards/specifications: EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508

Technical data

Control circuit - Input voltage range (high level): 200 … 253 VAC/DC
Control circuit - Input voltage range (low level): 0 … 30 VAC/VDC
Control circuit - Nominal input current at U_N: 4 mA
Control circuit - Nominal input voltage U_N: 230 VAC/VDC
Load circuit - Circuit type: 2-wire connection
Load circuit - Leakage current at rated voltage: ≤ 1 µA
Load circuit - Limiting continuous current: 0.1 A
Load circuit - Nominal output voltage: 24 VDC
Load circuit - Output voltage range: 0 … 48 VDC
Load circuit - Switching current (min.): 50 µA
Load circuit - Switching frequency: ≤ 20 Hz
Load circuit - Turn-off time: ≤ 10 ms
Load circuit - Turn-on time: ≤ 4.5 ms
Load circuit - Voltage drop: ≤ 1 VDC
Signaling - Status indicator: Yellow LED
