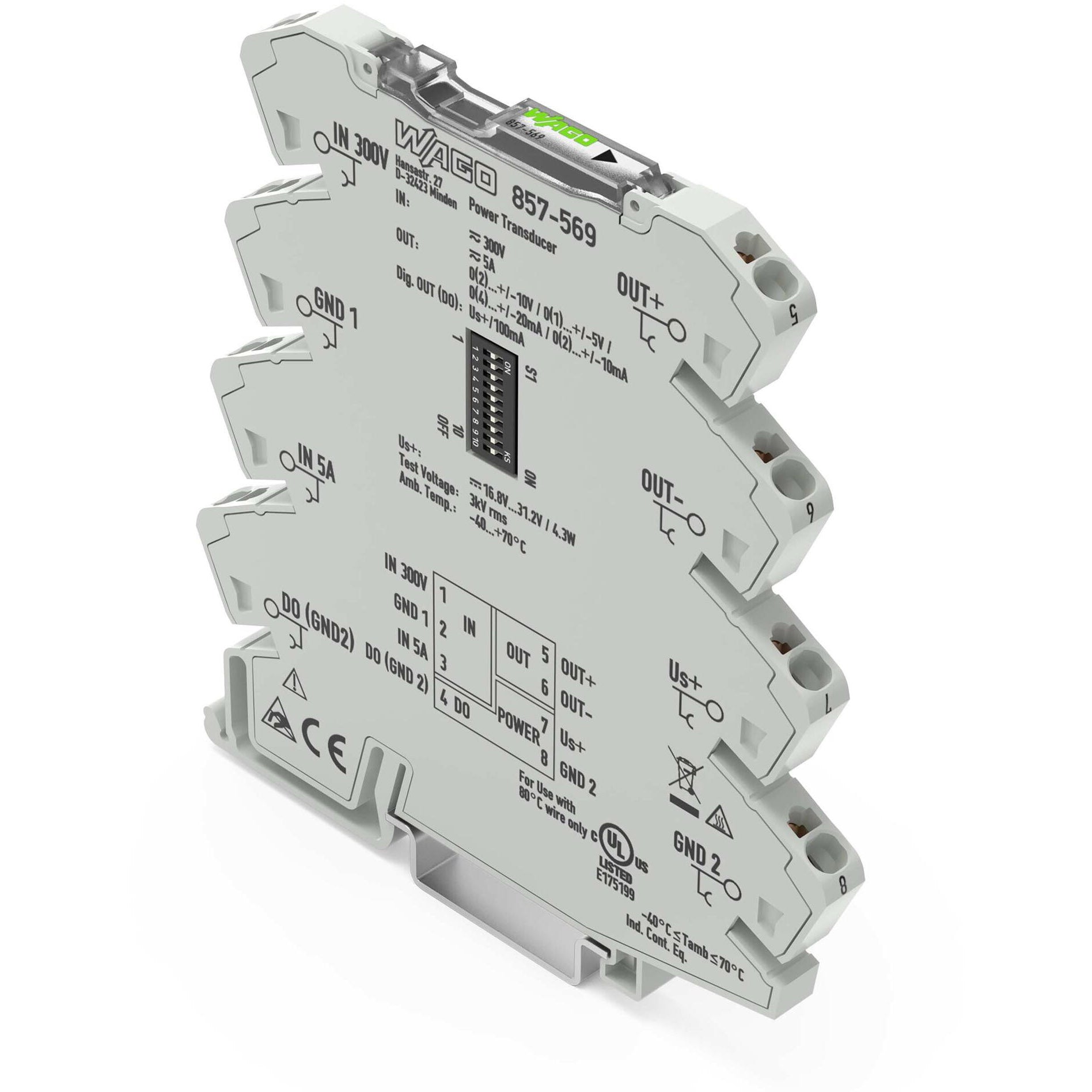

Wago - 857-569

Pwr. signal conditioner with DIP switch + interface configuration via software / app - WAGO (857 series) - with 1 x analog input (0-5A) + 1 x analog output (0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -40°C...+70°C ambient - equivalent to 857569

Specifications

• Primary brand: WAGO
• Functions: Pwr. signal conditioner|Clipping circuit
• Design: DIP switch|interface configuration via software / app
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (0-5A)|1 x analog input (300Vdc/Vac)
• Analog outputs: 1 x analog output (0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: 46mA (24Vdc; at nominal load)
• eClass code: 27-21-01-24
• GTIN code: 4055143501026
• ETIM code: EC002476
• Customs Tariff Number: 85437090300
• Order code / Manufacturer SKU: 857-569
• Manufacturer product status: Commercialized
• Equivalent to: 857569
• EAN code: 4055143501026
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|CE|EN 50121-3-2|EN 61010-1|EN 61373|EMC immunity to interference|- EN 61000-6-2|- EN 61326-2-3|- EN 50121-3-2|EMC emission of interference|- EN 61000-6-3|- EN 61326-2-3|- EN 50121-3-2|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts
• Product title: Pwr. signal conditioner - DIP switch - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-24
• eCl@ss 9.0: 27-21-01-24
• ETIM 8.0: EC002476
• ETIM 9.0: EC002476
• GTIN: 4055143501026
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 11120-22-2|1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Lead silicate|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 0334ed74-ca93-4ebb-9687-7fb41083b84c
• SCIP notification number (Belgium): 52197f75-6ee4-4832-ba31-18d590a3cfc1
• SCIP notification number (Bulgaria): 33ab3002-8078-4165-92e1-c0183f8b20da
• SCIP notification number (Czech Republic): aad42d90-b712-478c-bff1-e9e87a65592d
• SCIP notification number (Denmark): f6f5a36a-e242-49e2-9aa3-037e7aa732c4
• SCIP notification number (Finland): 90b8099b-7e3d-487a-9368-3d7c1cccf173
• SCIP notification number (France): f9b95d5c-28d6-45d8-9a80-bbdd9b41a7b6
• SCIP notification number (Germany): 98311d18-05a3-429a-8648-c06160b9eb34
• SCIP notification number (Hungary): 41ffffef-697d-497d-b974-99c265608896
• SCIP notification number (Italy): cb3a3c8d-ca04-4627-bd73-565ab7b2f02a
• SCIP notification number (Netherlands): 49dd2d9e-c918-4cf5-80c7-bb23a3ba8864
• SCIP notification number (Poland): c4a7f19d-f681-49eb-a9e6-0e311ace9798
• SCIP notification number (Romania): 5bf080aa-49b1-4698-b403-928127389211
• SCIP notification number (Sweden): b5c152bb-1fdd-4c12-80a1-d0beccd5021e

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C (at nominal current)
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 10 K)
• Temperature range of connection cable (UL): 80°C

Material data

• Fire load: 0.013MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 39.2g

Mechanical data

• Mounting type: DIN-35 rail

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Insulation coordination - Insulation type (input/analog output/supply/service interface): Double insulation (impedance and basic insulation);
  Requirement: The GND 1 input is dangerous when active and the measurement is conducted as a low-side measurement!
• Insulation coordination - Overvoltage category: II
• Insulation coordination - Pollution degree: 2
• Insulation coordination (UL) - Insulation type (input/analog output/supply/service interface): Reinforced insulation (safe isolation)
• Insulation coordination (UL) - Overvoltage category: II
• Insulation coordination (UL) - Pollution degree: 2
• Measurement category per EN/UL 61010-2-030: CAT II (input)
• Note on insulation parameters: Danger: Configuration via the service interface must only be performed with a voltage-free measurement input! The digital output (DO) is at the potential of the supply.|Danger: Configuration via the service interface must only be performed with a voltage-free measurement input!|The digital output (DO) is at the potential of the supply.
• Protection type: IP20
• Rated voltage: 300 V; 150 V (UL)
• Test voltage - Test voltage (input/analog output/supply/service interface): 2.5 kVAC; 50 … 60 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-3; EN 61326-2-3; EN 50121-3-2
• EMC immunity to interference: EN 61000-6-2; EN 61326-2-3; EN 50121-3-2
• Standards/specifications: EN 61010-1|EN 61373|EN 50121-3-2|EN 50121-3-2|EN 61010-1|EN 61373

Technical data

• Configuration - Configuration options: DIP switch|WAGO Interface Configuration Software|WAGO Interface Configuration App
• Input - Frequency range: 15 … 70 Hz (AC)
• Input - Input current (max.): 10 A AC/DC (IN 2; permanent)
• Input - Input resistance (current input): ≤ 10 mΩ
• Input - Input resistance (voltage input): ≥ 300 kΩ
• Input - Input signal (current): 0 … 5 AAC/ADC (IN 2)
• Input - Input signal (voltage): 300 VAC/VDC (IN 1)
• Input - Input signal type: Voltage|Current
• Input - Input voltage (max.): 600 V (IN 1; permanent)
• Input - Measurement frequency: 15 … 70 Hz (AC)
• Input - Resolution (current): 1 mA (IN 2)
• Input - Resolution (voltage): 30 mV (IN 1)
• Input - Response threshold: 300 mV (IN 1); 10 mA (IN 2)
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (max.): ≤ 0.5 % (of the full scale value)
• Output (analog) - Load impedance (current output): ≤ 600 Ω
• Output (analog) - Load impedance (voltage output): ≥ 1 kΩ
• Output (analog) - Output signal (current): 0 … 10 mA|2 … 10 mA|0 … 20 mA|4 … 20 mA (invertierbar, auch bipolar)
• Output (analog) - Output signal (voltage): 0 … 5 V|1 … 5 V|0 … 10 V|2 … 10 V (can be inverted, also bipolar)
• Output (analog) - Output signal type: Current|Voltage
• Output (digital) - Configurable rise/fall delay time (DO): 0 … 60 s (via software)
• Output (digital) - Continuous current (DO) max.: 100 mA (no internal restriction)
• Output (digital) - Number of switching thresholds (DO): 1 or 2 (adjustable)
• Output (digital) - Switching voltage (DO) max.: Supply voltage applied
• Power supply - Current consumption at nominal supply voltage: ≤ 46 mA (+ I_DO)
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC
• Power supply - Supply voltage range: ±30 %
• Signal processing - Limit frequency: 2 kHz
• Signal processing - Measurement method: RMS measurement; Arithmetic mean value
• Signal processing - Software filter (adjustable): Moving average value (filter level: 30)
• Signal processing - Step response (typ.): 100 ms
