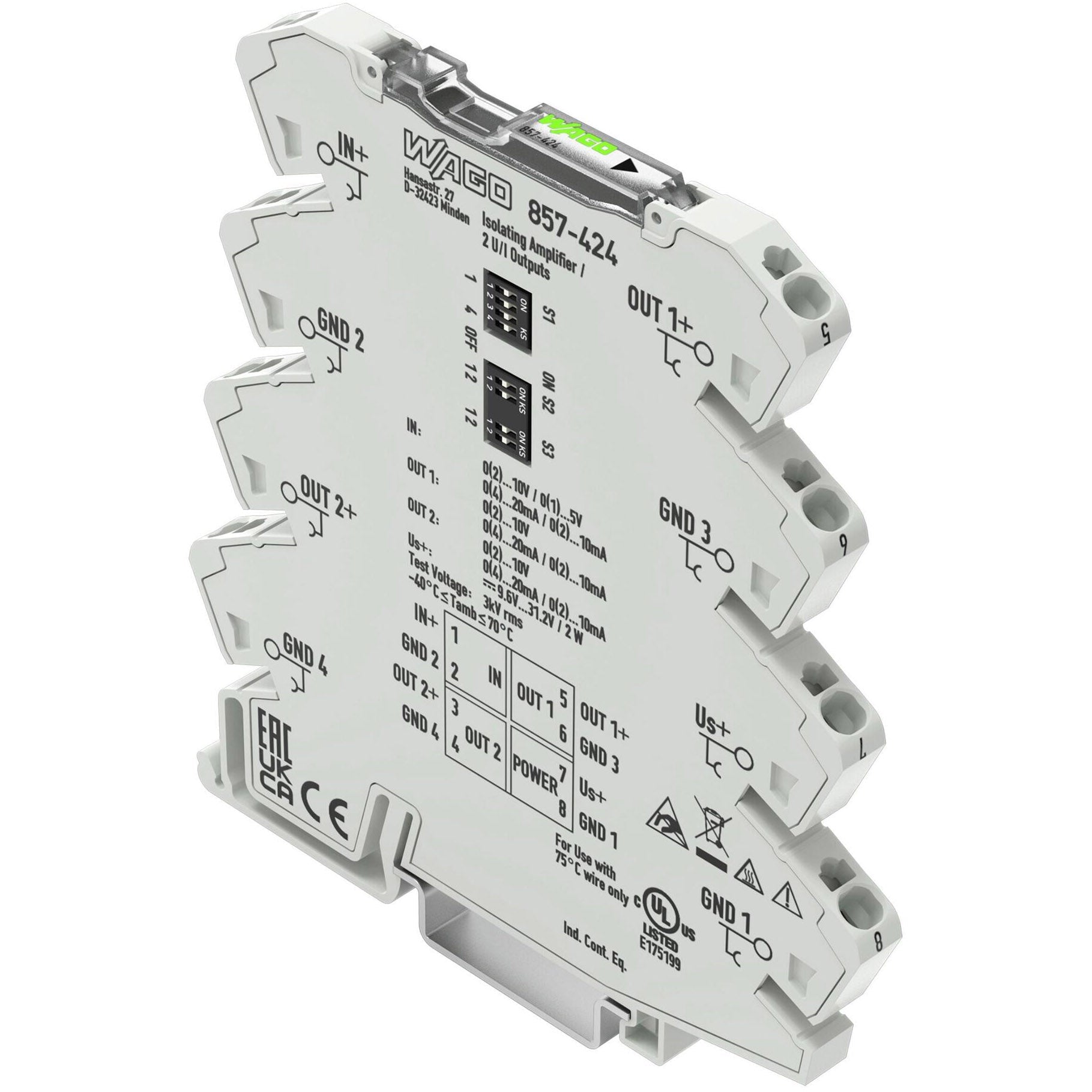

Wago - 857-424

2-channel signal splitter with DIP switch - WAGO (857 series) - with 1 x analog input (0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) + 2 x analog outputs (0-20mA / 4-20mA / 0-10Vdc / 2-10Vdc) - supply voltage 9.6-31.2Vdc (24Vdc nom.; SELV) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -40°C...+70°C ambient - equivalent to 857424

Specifications

• Primary brand: WAGO
• Functions: 2-channel signal splitter
• Design: DIP switch
• Supply voltage (DC): 9.6-31.2Vdc (24Vdc nom.; SELV)
• Temperature: Processing temperature -25°C...+50°C
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (0-10mA / 2-10mA / 0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Analog outputs: 2 x analog outputs (0-20mA / 4-20mA / 0-10Vdc / 2-10Vdc)
• Measurement accuracy: ≤ 0.1% (transmission error)|≤ 0.01%/K (temperature coefficient)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: < 27mA (default)|< 250mA max.
• GTIN code: 4055143595476
• Customs Tariff Number: 85437090300
• ETIM code: EC002653
• eClass code: 27-21-01-20
• Order code / Manufacturer SKU: 857-424
• Manufacturer product status: Commercialized
• Equivalent to: 857424
• EAN code: 4055143595476
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|CE|EN 50121-3-2|EN 61010-1|EMC immunity to interference|- EN 61000-6-2|- EN 61326-1|- EN 50121-3-2|EMC emission of interference|- EN 61000-6-3|- EN 61326-1|- EN 50121-3-2|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: 2-channel signal splitter - DIP switch - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-20
• eCl@ss 9.0: 27-21-01-20
• ETIM 8.0: EC002653
• ETIM 9.0: EC002653
• GTIN: 4055143595476
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Cable type: Shielded cable
• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 20ff4e13-c0c9-4a74-b2cf-15a295ca8e56
• SCIP notification number (Belgium): 3ba48a62-5e30-4a87-8bab-6ef1cc940417
• SCIP notification number (Bulgaria): cc19b314-8dc8-4533-a619-bb5d1675c55d
• SCIP notification number (Czech Republic): 8c5e008b-53c5-482f-a3af-caacba45ef35
• SCIP notification number (Denmark): 975066ac-f476-426b-9150-59f316b9a26a
• SCIP notification number (Finland): c19ee770-a5c7-4a8a-aa92-286b93a6362d
• SCIP notification number (France): 689b2ee7-0a3e-4f20-ad2c-38c625e92875
• SCIP notification number (Germany): a9b66183-4d24-4f12-9fe9-cacbf2b0dc9a
• SCIP notification number (Hungary): e1a182d3-453d-46fa-8dde-fca3c8f3c06b
• SCIP notification number (Italy): 68f65705-4017-4052-af20-4a8ab72a31ee
• SCIP notification number (Netherlands): 626ace7d-afda-43d4-8eea-41c485284027
• SCIP notification number (Poland): 5e15599a-8f67-4492-8627-517d77c7f6a2
• SCIP notification number (Romania): 8f949544-768f-44a9-a4e6-e617d0f0b22b
• SCIP notification number (Sweden): 444692de-f7c7-4ea3-bd3d-de5a8e18617e

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C (Individual arrangement; -40 … +50 °C (block arrangement))
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (non-condensing)
• Temperature range of connection cable: ≥ (T_ambient + 10 K)
• Temperature range of connection cable (UL): 75°C

Material data

• Fire load: 0.013MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 42g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: Use shielded signal lines!
  Only use shielded signal lines for analog input and output signals.
  Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable.

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Insulation coordination (UL) - Insulation type (input/analog output1/analog output 2/supply): Reinforced insulation (safe isolation)
• Insulation coordination (UL) - Overvoltage category: II
• Insulation coordination (UL) - Pollution degree: 2
• Measurement category per EN/UL 61010-2-030: CAT II (input)
• Protection type: IP20
• Rated voltage: 300V
• Test voltage - Test voltage (input/analog output 1/analog output 2/supply): 3 kVAC; 50 … 60 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-3; EN 61326-1; EN 50121-3-2
• EMC immunity to interference: EN 61000-6-2; EN 61326-1; EN 50121-3-2
• Standards/specifications: EN 61010-1|EN 50121-3-2|EN 50121-3-2|EN 61010-1

Technical data

• Configuration - Configuration options: DIP switch
• Input - Input current (max.): 50 mA
• Input - Input resistance (current input): ≤ 50 Ω
• Input - Input resistance (voltage input): ≥ 100 kΩ
• Input - Input signal (current): 0 … 10 mA|2 … 10 mA|0 … 20 mA|4 … 20 mA
• Input - Input signal (voltage): 0 … 5 V|1 … 5 V|0 … 10 V|2 … 10 V
• Input - Input signal type: Voltage|Current
• Input - Input voltage (max.): 30 V
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (typ.): ≤ 0.1 % of upper-range value
• Output (analog) - Load impedance (current output): ≤ 600 Ω per channel
• Output (analog) - Load impedance (voltage output): ≥ 2 kΩ (per channel)
• Output (analog) - Output signal (current): 0 … 10 mA|2 … 10 mA|0 … 20 mA|4 … 20 mA (kalibriert, umschaltbar)
• Output (analog) - Output signal (voltage): 0 … 10 V|2 … 10 V (calibrated, switchable)
• Output (analog) - Output signal type: Voltage|Current
• Power supply - Current consumption (default): < 27 mA
• Power supply - Current consumption (max.): < 250 mA (2 x I_out 20 mA; Load impedance: 600 Ω; U_s: 9.6 V)
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC (SELV)
• Power supply - Supply voltage range: -60 … +30 %
• Signal processing - Limit frequency: 100 Hz / 1 kHz (configurable via DIP switch)
• Signal processing - Step response (typ.): 5.2 ms (100 Hz)|650 µs (1 kHz)
