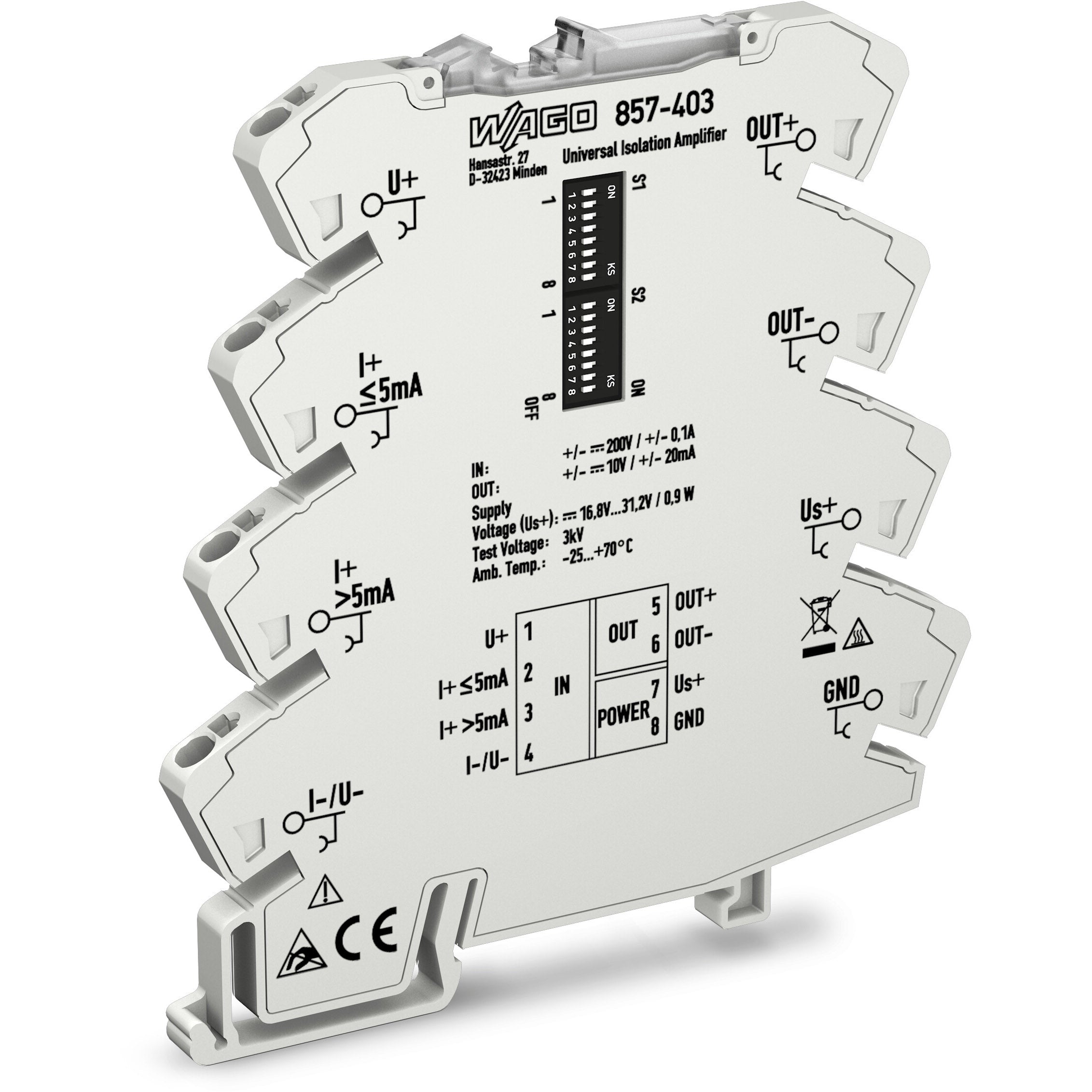

Wago - 857-403

Single-channel isolation amplifier with DIP switch - WAGO (857 series) - with 1 x analog input (-0.3...+0.3mA / 0-0.3mA / -1...+1mA / 0-1mA / -5...+5mA / 0-5mA / -10...+10mA / 0-10mA / 2-10mA / -20...+20mA / 0-20mA / 4-20mA / -50...+50mA / 0-50mA /-100...+100mA / 0-100mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc/ 0-1000Vdc / 0-220Vdc) + 1 x analog output (-10...+10mA / -20...+20mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+10Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -25°C...+70°C ambient - replaces obsolete component(s) 857-402 - equivalent to 857403

Specifications

• Primary brand: WAGO
• Functions: Single-channel isolation amplifier
• Design: DIP switch
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (-0.3...+0.3mA / 0-0.3mA / -1...+1mA / 0-1mA / -5...+5mA / 0-5mA / -10...+10mA / 0-10mA / 2-10mA / -20...+20mA / 0-20mA / 4-20mA / -50...+50mA / 0-50mA /-100...+100mA / 0-100mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc/ 0-1000Vdc / 0-220Vdc)
• Analog outputs: 1 x analog output (-10...+10mA / -20...+20mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+10Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Measurement accuracy: ≤ 0.08% (transmission error)|≤ 0.01%/K (temperature coefficient)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: 40mA (24Vdc; at nominal load)
• GTIN code: 4066966111668
• Customs Tariff Number: 85437090300
• ETIM code: EC002653
• Order code / Manufacturer SKU: 857-403
• Manufacturer product status: Commercialized
• Replaces: 857-402
• Equivalent to: 857403
• EAN code: 4055144057850
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|CE|EN 61010-1|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Sensors
• Product title: Single-channel isolation amplifier - DIP switch - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002653
• ETIM 9.0: EC002653
• GTIN: 4066966111668
• Packaging type: bag
• PU (SPU): 1 pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 11120-22-2|1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Lead silicate|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): a8a004bc-34c5-4ea9-9fd5-3762e2a2f8e0
• SCIP notification number (Belgium): c424778a-3314-475a-9226-5795843c2fda
• SCIP notification number (Bulgaria): 8b595184-c1c5-4426-a1e7-2f6f8159c4f4
• SCIP notification number (Czech Republic): b6f3f06c-3e9a-4abb-bece-809b95b08dcd
• SCIP notification number (Denmark): 6bae2c8f-914a-4fb5-b220-2b7bad4078ed
• SCIP notification number (Finland): 154844fb-82cf-4059-b5ef-9b44733f003a
• SCIP notification number (France): 65fa3ca6-9c95-4781-8fb2-2fa2faedd624
• SCIP notification number (Germany): 516c27d5-1efb-47e0-b2a8-6a0202211e5e
• SCIP notification number (Hungary): daea5cf8-bdb4-4121-9861-64c35ba3bae2
• SCIP notification number (Italy): cc361fab-b71b-4544-998e-a543af9c80c5
• SCIP notification number (Netherlands): a7270535-33a4-4e1c-9a38-edc13bc743b3
• SCIP notification number (Poland): 4346b186-8f0f-4af9-bf9d-7408b5ba8219
• SCIP notification number (Romania): 689fb8bc-de7b-4fe6-bec9-5c417eaacf08
• SCIP notification number (Sweden): 86b84c70-023f-466f-8f3b-286656609762

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Relative humidity: 5 … 95 % (no condensation permissible)

Material data

• Fire load: 0.191MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 38g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: Use shielded signal lines!
  Only use shielded signal lines for analog input and output signals.
  Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable.

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Insulation coordination - Insulation type (input/supply and analog output/relay output): Reinforced insulation (safe isolation)|Reinforced insulation|Reinforced insulation
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated voltage: 200V
• Test voltage - Test voltage (input/output/supply): 3 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-4
• EMC immunity to interference: EN 61000-6-2
• Standards/specifications: EN 61010-1|EN 61010-1

Technical data

• Configuration - Configuration options: DIP switch
• Input - Input resistance (current input): 10 Ω (≥ 5 mA)|100 Ω (≤ 5 mA)
• Input - Input resistance (voltage input): 1 MΩ
• Input - Input signal (current): ±0.3 mA|0 … 0.3 mA|±1 mA|0 … 1 mA|±5 mA|0 … 5 mA|±10 mA|0 … 10 mA|2 … 10 mA|±20 mA|0 … 20 mA|4 … 20 mA|±50 mA|0 … 50 mA|±100 mA|0 … 100 mA
• Input - Input signal (voltage): ±60 mV|0 … 60 mV|±100 mV|0 … 100 mV|±150 mV|0 … 150 mV|±300 mV|0 … 300 mV|±500 mV|0 … 500 mV|±1 V|0 … 1 V|±5 V|0 … 5 V|1 … 5 V|±10 V|0 … 10 V|2 … 10 V|±100 V|0 … 100 V|±200 V|0 … 200 V
• Input - Input signal type: Voltage (DC)|Current (DC)|Voltage|Current
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (typ.): ≤ 0.08 % of upper-range value
• Output (analog) - Load impedance (current output): ≤ 600 Ω
• Output (analog) - Load impedance (voltage output): ≥ 2 kΩ
• Output (analog) - Output signal (current): ±10 mA|0 … 10 mA|2 … 10 mA|±20 mA|0 … 20 mA|4 … 20 mA
• Output (analog) - Output signal (voltage): ±5 V|0 … 5 V|1 … 5 V|±10 V|0 … 10 V|2 … 10 V
• Output (analog) - Output signal type: Current|Voltage
• Power supply - Current consumption at nominal supply voltage: ≤ 40 mA
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC
• Power supply - Supply voltage range: ±30 %
• Signal processing - Limit frequency: 100 Hz / 5 kHz (configurable via DIP switch)
• Signal processing - Step response (typ.): 3.5 ms (100 Hz)|100 µs (5 kHz)
