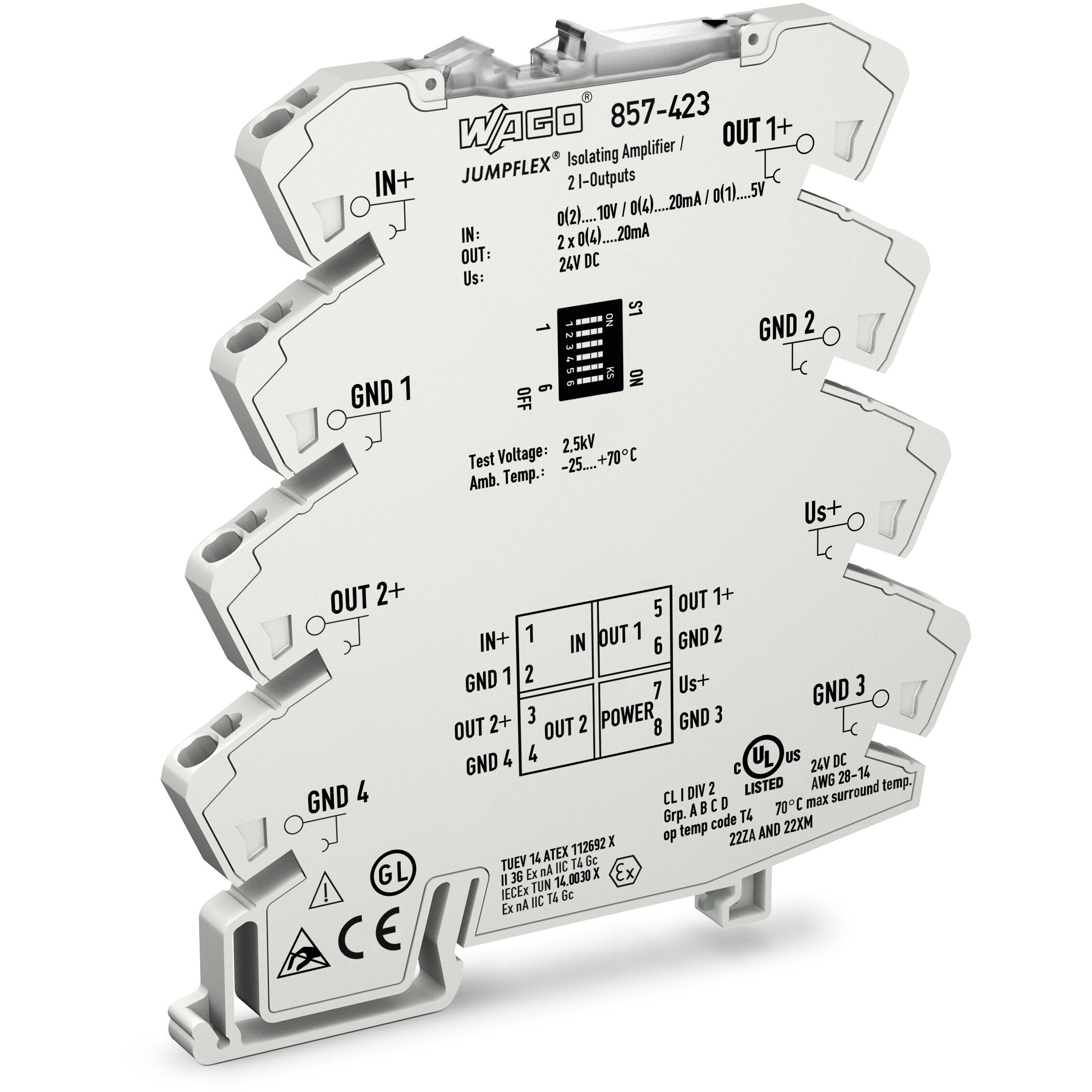

Wago - 857-423

2-channel signal splitter with DIP switch - WAGO (857 series) - with 1 x analog input (0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) + 2 x analog outputs (0-20mA / 4-20mA) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 857423

Specifications

• Primary brand: WAGO
• Functions: 2-channel signal splitter
• Design: DIP switch
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Temperature: Processing temperature -25°C...+50°C
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (0-20mA / 4-20mA / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Analog outputs: 2 x analog outputs (0-20mA / 4-20mA)
• Measurement accuracy: ≤ 0.1% (transmission error)|≤ 0.01%/K (temperature coefficient)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: 35mA (24Vdc; at nominal load)
• GTIN code: 4045454471316
• eClass code: 27-21-01-20
• Customs Tariff Number: 85437090300
• ETIM code: EC002653
• Order code / Manufacturer SKU: 857-423
• Manufacturer product status: Commercialized
• Equivalent to: 857423
• EAN code: 4045454471316
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|CE|DNV|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 40179_B0|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAA00001D1|- PRS - Polski Rejestr Statkow - certificate TE/1098/880590/23|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX112692X (II 3G Ex ec IIC T4 Gc)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000210 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - certificate IECEX TUN14.0030X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX004X|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Product title: 2-channel signal splitter - DIP switch - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-20
• eCl@ss 9.0: 27-21-01-20
• ETIM 8.0: EC002653
• ETIM 9.0: EC002653
• GTIN: 4045454471316
• Packaging type: bag
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Cable type: Shielded cable
• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): f3bd2dd6-8897-4727-8817-eb8fa4f61833
• SCIP notification number (Belgium): 6461991f-6733-4ab1-96d8-363c4c0ad2d1
• SCIP notification number (Bulgaria): 0909499e-b080-4fb2-838b-98acad664bd1
• SCIP notification number (Czech Republic): 9cb4d383-a36c-4264-be61-624a74c1699b
• SCIP notification number (Denmark): 3e5537a9-59e8-4490-96fc-80cc1df749cf
• SCIP notification number (Finland): 77584296-15bf-4327-bfa4-a92bdb8232ef
• SCIP notification number (France): a3a6bac3-78ac-411b-a7ae-18317cb7da7a
• SCIP notification number (Germany): 1aac8de7-6254-4741-923d-9ee0f0d08019
• SCIP notification number (Hungary): 0529448d-a98e-4ab8-8359-594effec587a
• SCIP notification number (Italy): 52b6c194-a8eb-4660-9154-c8c6e3105cfe
• SCIP notification number (Netherlands): 49bf022e-ca61-4f49-9ce1-2614f036ad4d
• SCIP notification number (Poland): 85edb9a3-3ac3-4dab-b3a5-499070b23c99
• SCIP notification number (Romania): 5acb356f-906f-48b0-84d7-748ba0bfdc2e
• SCIP notification number (Sweden): ac6b507e-39a6-4f8d-9254-a4f1bb9e7bfc

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 10 K)

Material data

• Fire load: 0.363MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 40.6g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note: Use shielded signal lines!
  Only use shielded signal lines for analog input and output signals.
  Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable.

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Insulation coordination - Overvoltage category: II
• Insulation coordination - Pollution degree: 2
• Insulation coordination (UL) - Insulation type (input/analog output1/analog output 2/supply): Reinforced insulation (safe isolation)
• Insulation coordination (UL) - Overvoltage category: II
• Insulation coordination (UL) - Pollution degree: 2
• Protection type: IP20
• Rated voltage: 300V
• Test voltage - Test voltage (input/output/supply): 3 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-4
• EMC immunity to interference: EN 61000-6-2
• Standards/specifications: DNV|DNV

Technical data

• Configuration - Configuration options: DIP switch
• Input - Input resistance (current input): ≤ 50 Ω
• Input - Input resistance (voltage input): ≥ 100 kΩ
• Input - Input signal (current): 0 … 20 mA|4 … 20 mA (calibrated, switchable)
• Input - Input signal (voltage): 0 … 5 V|1 … 5 V|0 … 10 V|2 … 10 V (calibrated, switchable)
• Input - Input signal type: Voltage|Current
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (max.): ≤ 0.2 % of upper-range value
• Measurement error - Transmission error (typ.): ≤ 0.1 % of upper-range value
• Measurement error - Transmission error (under interference): ≤ 10 %
• Output (analog) - Load impedance (current output): ≤ 300 Ω per channel
• Output (analog) - Output signal (current): 0 … 20 mA|4 … 20 mA (kalibriert, umschaltbar)
• Output (analog) - Output signal type: Current
• Power supply - Current consumption at nominal supply voltage: ≤ 35 mA
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC
• Power supply - Supply voltage range: ±30 %
• Signal processing - Limit frequency: 100 Hz / 1 kHz (configurable via DIP switch)
• Signal processing - Step response (typ.): 3.5 ms (100 Hz)|300 µs (1 kHz)
