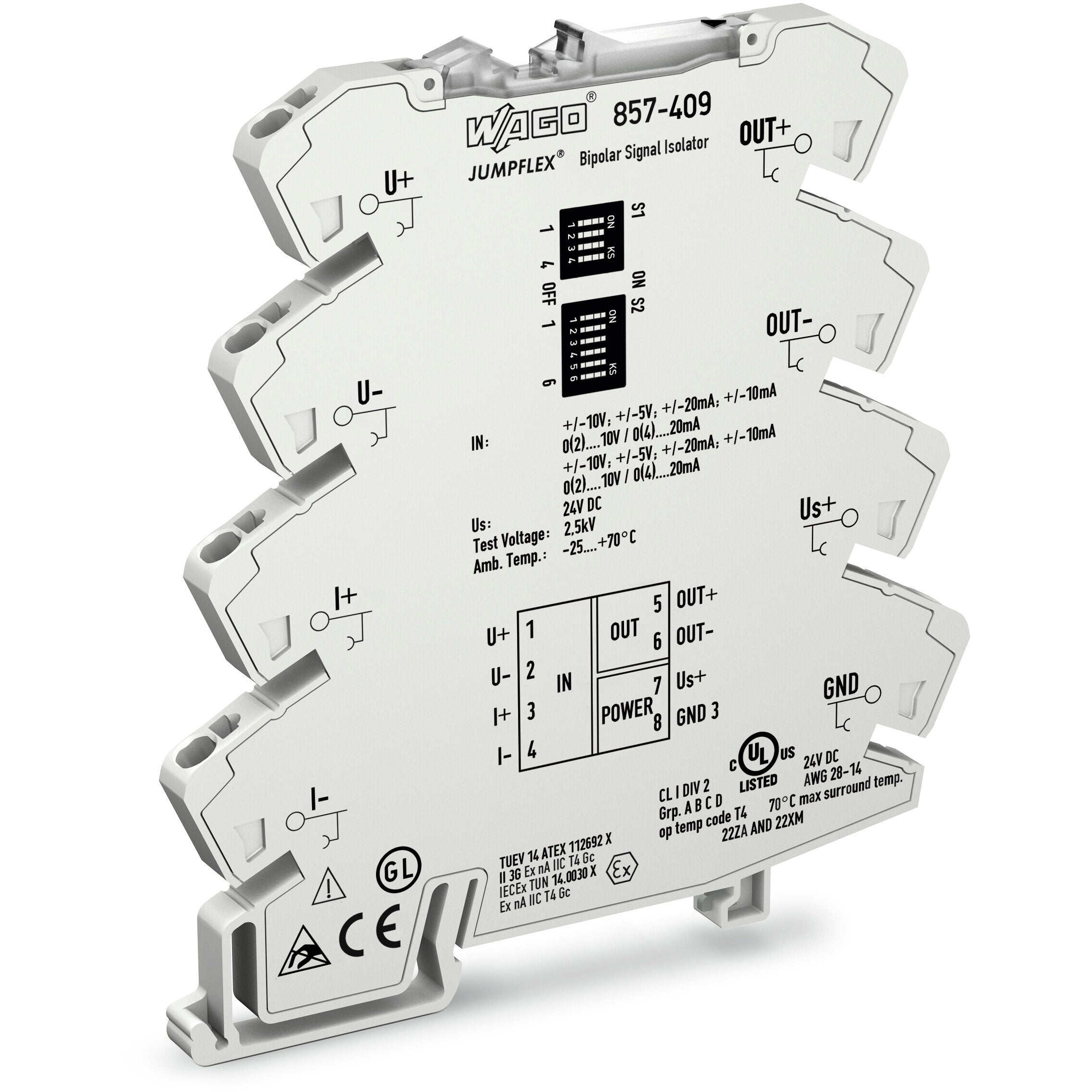

Wago - 857-409

Single-channel bipolar isolation amplifier with DIP switch - WAGO (857 series) - with 1 x analog input (-10...+10mA / -20...+20mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+10Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) + 1 x analog output (-10...+10mA / -20...+20mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+5Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc) - supply voltage 16.8-31.2Vdc (24Vdc nom.) - with Push-in CAGE CLAMP spring connections - DIN-35 rail mounting (6mm width) - IP20 - rated for -25°C...+70°C ambient - equivalent to 857409

Specifications

• Primary brand: WAGO
• Functions: Single-channel bipolar isolation amplifier|Zero / span adjustment
• Design: DIP switch
• Supply voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Temperature: Processing temperature -25°C...+50°C
• Connection type: Push-in CAGE CLAMP spring connections
• Mounting mode: DIN-35 rail
• Analog inputs: 1 x analog input (-10...+10mA / -20...+20mA / 0-10mA / 2-10mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+10Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Analog outputs: 1 x analog output (-10...+10mA / -20...+20mA / 0-20mA / 4-20mA / -5...+5Vdc / -10...+5Vdc / 0-5Vdc / 1-5Vdc / 0-10Vdc / 2-10Vdc)
• Measurement accuracy: ≤ 0.1% (transmission error)|≤ 0.01%/K (temperature coefficient)
• Dimensions: H94mm x W6mm x D97.8mm
• Net Width (mm): 6mm
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+85°C
• Humidity: 5-95% relative humidity (RH; non-condensing)
• Current consumption: ≤ 25mA (default)|40mA max.
• Customs Tariff Number: 85437090300
• eClass code: 27-21-01-20
• GTIN code: 4045454828493
• ETIM code: EC002653
• Order code / Manufacturer SKU: 857-409
• Manufacturer product status: Commercialized
• Equivalent to: 857409
• EAN code: 4045454828493
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|CE|DNV|EN 61010-1|EN 61373|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-3|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 40179_B0|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAA00001D1|- PRS - Polski Rejestr Statkow - certificate TE/1098/880590/23|Approvals for hazardous areas|- ATEX - TUV Nord Cert GmbH - EN 60079-0 - certificate TUV14ATEX112692X (II 3G Ex ec IIC T4 Gc)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312310000210 (Ex ec IIC T4 Gc)|- IECEx - TUV Nord Cert GmbH - certificate IECEX TUN14.0030X|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX004X|- UL - Underwriters Laboratories Inc. (HAZARDOUS LOCATIONS) - ANSI/ISA 12.12.01 - certificate E198726|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Sensors
• Product title: Single-channel bipolar isolation amplifier - DIP switch - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85437090300
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-01-20
• eCl@ss 9.0: 27-21-01-20
• ETIM 8.0: EC002653
• ETIM 9.0: EC002653
• GTIN: 4045454828493
• Packaging type: bag
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 1 pcs

Connection data

• Cable type: Shielded cable
• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Solid conductor: 0.08 … 2.5 mm² / 28 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|75980-60-8
• REACH Candidate List Substance: Diboron trioxide|Lead|Lead monoxide|Phosphine oxide, diphenyl(2,4,6-trimethylbenzoyl)-
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 3045ef60-f28a-43e4-9dba-b63435d5553d
• SCIP notification number (Belgium): 8f1d744b-8731-4270-a640-73cf63782d7f
• SCIP notification number (Bulgaria): 74cd0cd4-d3cc-4fa9-ac76-5a1ca5bb11a1
• SCIP notification number (Czech Republic): 0689176b-e48c-48ed-859f-591c9a9bb606
• SCIP notification number (Denmark): ffd652f9-d5f2-45bf-981b-f0fde66c585f
• SCIP notification number (Finland): 7c145b78-dbc2-4260-85cc-22a468112985
• SCIP notification number (France): 3a00d327-3185-4fcb-a0b8-36a561c46061
• SCIP notification number (Germany): 15951163-bfc4-44d4-b679-9146fa50b484
• SCIP notification number (Hungary): 5fd6a05b-6f43-463e-8f9a-4ab07da40dfd
• SCIP notification number (Italy): ea8b18af-ed6a-4f27-b024-7378eb0f2d3d
• SCIP notification number (Netherlands): 56e8430c-ad8e-4e3a-b6f2-897614bc0f79
• SCIP notification number (Poland): 62fe04e8-fd16-49c4-be93-f76f40eef9e0
• SCIP notification number (Romania): 01c54ad8-3056-427f-8fc0-0b8e8c12d949
• SCIP notification number (Sweden): 4527d706-aff0-40c4-95f8-d5d44d48a189

Environmental requirements

• Ambient temperature (operation): -25 … +70 °C
• Ambient temperature (storage): -40 … +85 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 95 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 10 K)

Material data

• Fire load: 0.363MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Weight: 39.2g

Mechanical data

• Mounting type: DIN-35 rail

Notes

• Note:
  Use shielded signal lines!
  Only use shielded signal lines for analog input and output signals.
  Only then can you ensure that the accuracy and interference immunity specified for the device can be achieved, even in the presence of interference acting on the signal cable.

  Use in the living area is only permitted in conjunction with a power supply that meets the criteria of the living area according to EN 61000-6-3.
• Safety Information: Input and output must be safely isolated from any hazardous live parts!

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Insulation coordination - Insulation type (adjacent devices): Reinforced insulation (safe isolation)
• Insulation coordination - Insulation type (input/analog output/supply): Functional insulation
• Insulation coordination - Overvoltage category: II
• Insulation coordination - Pollution degree: 2
• Protection type: IP20
• Rated voltage: 300V
• Test voltage - Test voltage (input/output/supply): 3 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• EMC emission of interference: EN 61000-6-3
• EMC immunity to interference: EN 61000-6-2
• Standards/specifications: EN 61010-1|EN 61373|DNV|DNV|EN 61373

Technical data

• Configuration - Configuration options: DIP switch|Potentiometer
• Input - Input current (max.): 50 mA
• Input - Input resistance (current input): ≤ 50 Ω
• Input - Input resistance (voltage input): 1 MΩ
• Input - Input signal (current): ±10 mA|0 … 10 mA|2 … 10 mA|±20 mA|0 … 20 mA|4 … 20 mA
• Input - Input signal (voltage): ±5 V|0 … 5 V|1 … 5 V|±10 V|0 … 10 V|2 … 10 V
• Input - Input signal type: Voltage|Current
• Input - Input voltage (max.): 32 V
• Input - Zero/span adjustment: ±5 % of upper-range value
• Measurement error - Temperature coefficient: ≤ 0.01 %/K
• Measurement error - Transmission error (max.): ≤ 0.2 % of upper-range value
• Measurement error - Transmission error (typ.): ≤ 0.1 % of upper-range value
• Measurement error - Transmission error (under interference): ≤ 15 %
• Output (analog) - Load impedance (current output): ≤ 600 Ω
• Output (analog) - Load impedance (voltage output): ≥ 2 kΩ
• Output (analog) - Output signal (current): ±10 mA|0 … 10 mA|2 … 10 mA|±20 mA|0 … 20 mA|4 … 20 mA
• Output (analog) - Output signal (voltage): ±5 V|0 … 5 V|1 … 5 V|±10 V|0 … 10 V|2 … 10 V
• Output (analog) - Output signal type: Current|Voltage
• Output (analog) - Residual ripple: ≤ 10 mV (rms)
• Power supply - Current consumption (default): ≤ 20 mA
• Power supply - Current consumption (max.): ≤ 40 mA
• Power supply - Nominal supply voltage U_S: 24 VDC
• Power supply - Power supply type: 24 VDC (SELV)
• Power supply - Supply voltage range: ±30 %
• Signal processing - Limit frequency: 100 Hz / 5 kHz (configurable via DIP switch)
• Signal processing - Step response (typ.): 3.5 ms (100 Hz)|68 µs (5 kHz)
