Wago - 857-1430

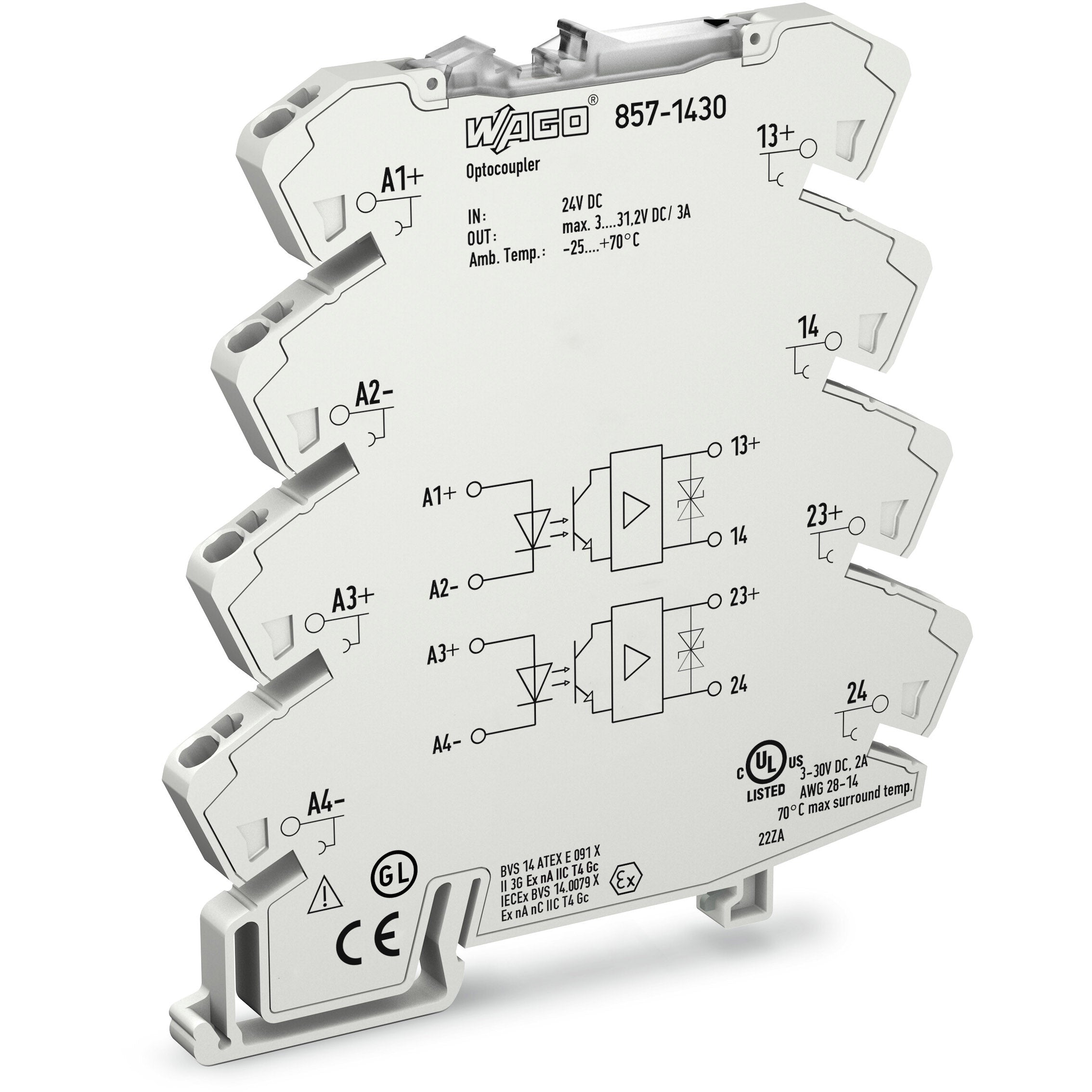

Fixed-type solid-state / static relay (SSR) with yellow LED - 2-wire connection - WAGO (857 series) - 2-channels / 2-poles / 2-phases (2P) - control voltage 16.8-31.2Vdc (24Vdc nom.) - Rated voltage 3Vdc-31.2Vdc (24Vdc nom.) output - Rated current 3A (continuous) - with Push-in CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - IP20 - equivalent to 8571430

Specifications

• Primary brand: WAGO
• Functions: Fixed-type solid-state / static relay (SSR)
• Design: yellow LED|2-wire connection
• Poles: 2-channels / 2-poles / 2-phases (2P)
• Frequency: 300Hz switching frequency
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 3A (continuous)
• Rated Voltage (DC): 3Vdc-31.2Vdc (24Vdc nom.) output
• Connection type: Push-in CAGE CLAMP connections
• Control Voltage (DC): 16.8-31.2Vdc (24Vdc nom.)
• Mounting mode: DIN-35 rail
• Response time: (switching ON) 25μs / 0.000025s|(switching OFF) 250μs / 0.00025s
• Dimensions: H94mm x W6mm x D97.8mm|6mm width
• Material: Polyamide (PA) 66
• Ambient air temperature for operation: -25°C...+70°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-85% relative humidity (RH; non-condensing)
• GTIN code: 4050821451587
• ETIM code: EC001504
• Customs Tariff Number: 85365005000
• eClass code: 27-26-15-03
• Order code / Manufacturer SKU: 857-1430
• Manufacturer product status: Commercialized
• Equivalent to: 8571430
• EAN code: 4050821451587
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|DNV|EN 61000-6-2|EN 61000-6-3|EN 61010-2-201|EN 61373|UL 508 (max. 70°C / 2A)|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03081|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- BV - Bureau Veritas S.A. - Rules for class. of Steel Ships - certificate 40179_B0|- DNV - DNV Germany GmbH - DNV-CG-0339 / Aug.2021 - certificate TAA00001D1|Approvals for hazardous areas|- ATEX - DEKRA EXAM GmbH - EN 60079-0 - certificate BVS_14_ATEX_E_091_X (II 3G Ex ec nC IIC T4 Gc; II 3G Ex ec IIC T4 Gc)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312304000757 (Ex ec IIC T4 Gc)|- IECEx - DEKRA EXAM GmbH - IEC 60079-0 - certificate IECEX_BVS_14.0079X_Issue_3 (Ex ec nC IIC T4 Gc; Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate WAGO22UKEX002X_ec|RoHS compliant with exemption (6(c) / 7(a) / 7(c)-I / 7(c)-II)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Fixed-type solid-state / static relay (SSR) - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85365005000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-26-15-03
• eCl@ss 9.0: 27-26-15-03
• ETIM 8.0: EC001504
• ETIM 9.0: EC001504
• GTIN: 4050821451587
• Packaging type: Box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (1) pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.34 … 1.5 mm² / 22 … 16 AWG
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 6(c)|7(a)|7(c)-I|7(c)-II
• SCIP notification number (Austria): 7be5277c-4769-437b-ac37-9ccb15dee449
• SCIP notification number (Belgium): 7a08602f-6e22-4743-aa55-483e71a8147a
• SCIP notification number (Bulgaria): 2c4bc710-e6d3-42da-89dc-a43c4549be01
• SCIP notification number (Czech Republic): d9d876e5-a5f9-43b1-b0d8-2a867c68093e
• SCIP notification number (Denmark): 7ed03745-475f-4d76-9946-29517426cf1a
• SCIP notification number (Finland): 210d4573-9c78-4b73-b42c-602be9bab4b1
• SCIP notification number (France): 7d28594d-b673-4142-8334-0cf9f07060c7
• SCIP notification number (Germany): b6d067ad-1fd0-40d1-9066-62a3bfa0f99e
• SCIP notification number (Hungary): 235e6cb9-cdef-42ff-b68e-c7b20968689b
• SCIP notification number (Italy): 48f3cdda-333b-4364-b039-00947409dd65
• SCIP notification number (Netherlands): 4ecba9a5-ea21-462f-8c13-e30b2cfa7980
• SCIP notification number (Poland): 2c586d49-820a-4faf-9151-f6effbfbf74b
• SCIP notification number (Romania): d7f6abbb-acda-4605-a1cd-5eaa83bcbd2a
• SCIP notification number (Sweden): 29327227-3067-4519-87a2-4db1f2e05509

Environmental requirements

• Ambient temperature (operation at U_N): -25 … +70 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 30 K)

Material data

• Color: light gray
• Fire load: 0.363MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 32.8g

Mechanical data

• Mounting position: horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: Optocouplers and solid state relays are designed for use in signal processing networks that are not supplied directly by the low-voltage power supply network.

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (channel/channel) (AC, 1 min.): 3.5 kVrms
• Dielectric strength (control/load circuit) (AC, 1 min): 2.5 kVrms
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Basic insulation
• Insulation type (load/load circuit): Reinforced insulation (safe isolation)
• Insulation type (to adjacent devices of different types): Reinforced insulation (safe isolation)
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508 (max. 70 °C / 2 A)|DNV

Technical data

• Control circuit - Input voltage range (high level): 16.8 … 31.2 VDC
• Control circuit - Input voltage range (low level): 0 … 5 VDC
• Control circuit - Nominal input current at U_N: 8 mA
• Control circuit - Nominal input voltage U_N: 24 VDC
• Load circuit - Circuit type: 2-way|2-wire connection
• Load circuit - Leakage current at rated voltage: ≤ 250 µA
• Load circuit - Limiting continuous current: 3 A
• Load circuit - Nominal output voltage: 24 VDC
• Load circuit - Output voltage range: 3 … 31.2 VDC
• Load circuit - Short circuit protection (load circuit): 3.15 A; Slow (T)
• Load circuit - Switching frequency: ≤ 300 Hz
• Load circuit - Turn-off time: ≤ 250 µs
• Load circuit - Turn-on time: ≤ 25 µs
• Load circuit - Voltage drop: ≤ 0.2 VDC
• Signaling - Status indicator: Yellow LED
