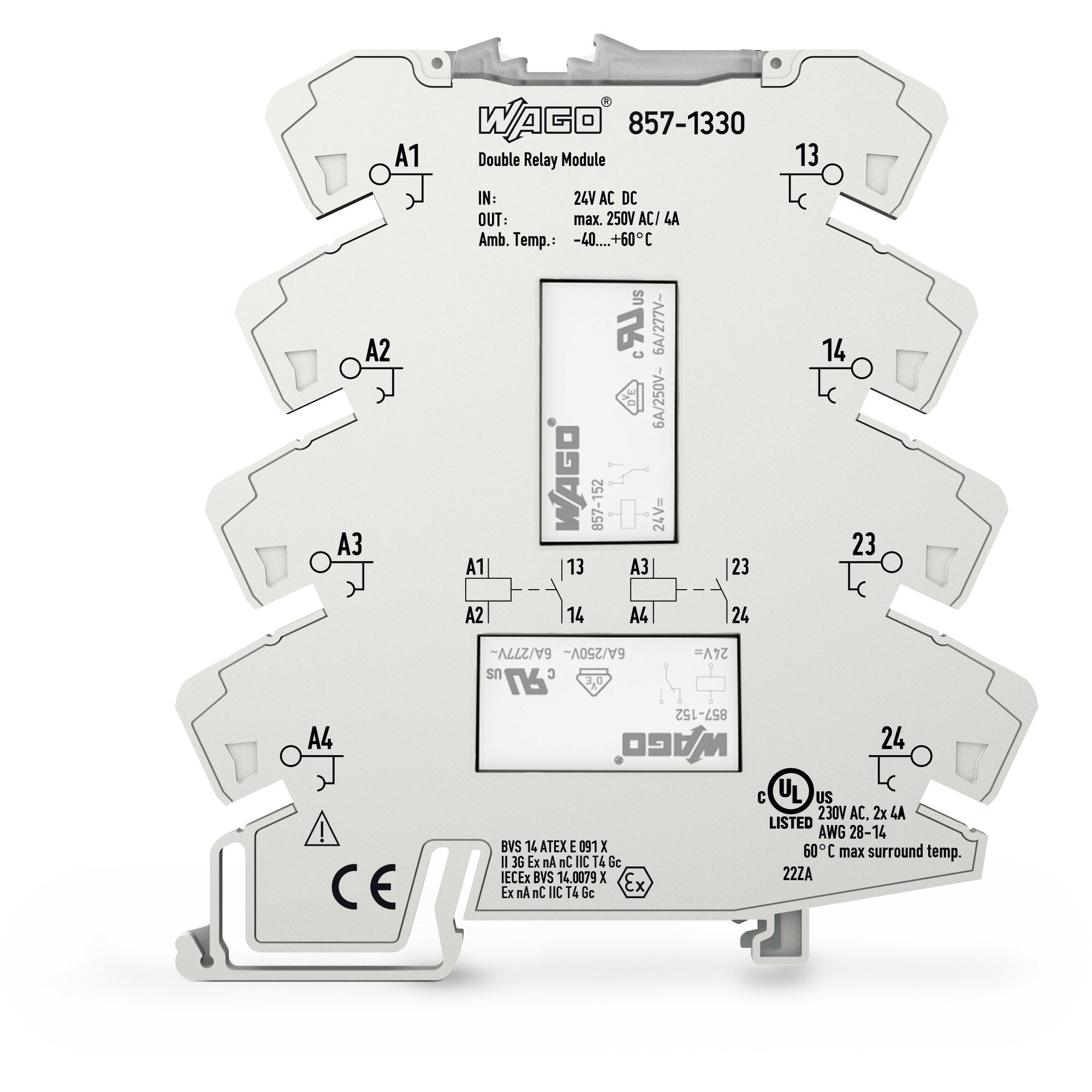

Wago - 857-1330

Plug-in relay assembly with socket base + yellow LED - WAGO (857 series) - single-pole / 1-pole (1P) - control voltage 20.4-28.8Vac (24Vac nom.; 0.85...1.2 x Uc)/20.4-28.8Vdc (24Vdc nom.; 0.85...1.2 x Uc) - 1NO / SPST-NO (Single Pole Single Throw - Normally Open) - Electromechanical design - Rated current 4A (continuous) / 3A (250Vac; AC-15) / 2A (24Vdc; DC-13) - with Push-in CAGE CLAMP connections - DIN-35 rail mounting (6mm width) - IP20 - material Silver-Tin (AgSnO) contacts - equivalent to 8571330

Specifications

• Primary brand: WAGO
• Functions: Plug-in relay assembly
• Design: socket base|yellow LED|Electromechanical design|10V / 10mA / 24V / 1mA recommended minimum switching load
• Poles: single-pole / 1-pole (1P)
• Temperature: Processing temperature -25°C...+50°C
• Rated current: 4A (continuous)|3A (250Vac; AC-15)|2A (24Vdc; DC-13)|20A (20ms) AC inrush maximum current
• Rated operating voltage (Ue): 300V
• Rated voltage (AC): 250Vac max. (switching voltage)
• Rated impulse voltage (Uimp): 4kV
• Connection type: Push-in CAGE CLAMP connections
• Control Voltage (AC): 20.4-28.8Vac (24Vac nom.; 0.85...1.2 x Uc)
• Control Voltage (DC): 20.4-28.8Vdc (24Vdc nom.; 0.85...1.2 x Uc)
• Mounting mode: DIN-35 rail
• Response time: (OFF=>ON / contacts closing) 15ms / 0.015s|(ON=>OFF / contacts opening) 25ms / 0.025s
• Contacts type: 1NO / SPST-NO (Single Pole Single Throw - Normally Open)
• Dimensions: H94mm x W6mm x D97.8mm|6mm width
• Material: Silver-Tin (AgSnO) contacts|Polyamide (PA) 66 housing
• Ambient air temperature for operation: -40°C...+85°C
• Ambient air temperature for storage: -40°C...+70°C
• Humidity: 5-85% relative humidity (RH; non-condensing)
• Electrical durability (with load): 50 000operations
• Mechanical durability (at no load): 5 000 000operations
• Customs Tariff Number: 85364900990
• GTIN code: 4066966380125
• ETIM code: EC001437
• eClass code: 27-37-16-01
• Order code / Manufacturer SKU: 857-1330
• Manufacturer product status: Commercialized
• Equivalent to: 8571330
• EAN code: 4050821099796
• Compliant with standard(s): Safety and protection|- Overvoltage category -- II|ATEX|EN 61010-2-201|EN 61373|EN 61810-1|IECEx|UL 508|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03078|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.4|Approvals for hazardous areas|- ATEX - DEKRA EXAM GmbH - EN 60079-0 - certificate BVS_14_ATEX_E_091_X (II 3G Ex ec nC IIC T4 Gc; II 3G Ex ec IIC T4 Gc)|- CCC - CNEX - CNCA-C23-01 - certificate 2020312304000757 (Ex ec nC IIC T4 Gc)|- IECEx - DEKRA EXAM GmbH - IEC 60079-0 - certificate IECEX_BVS_14.0079X_Issue_3 (Ex ec nC IIC T4 Gc; Ex ec IIC T4 Gc)|- UKEx - WAGO GmbH & Co. KG - EN 60079-0 - certificate UKCA_WAGO22UKEX002X_ec nC|RoHS compliant with exemption (7(a) / 7(c)-I)|V-0 flammability rating
• Location of origin: Germany
• Degree of pollution: 2
• Level 1 category: Automation components
• Level 2 category: Control components
• Level 3 category: Control relays
• Product title: Plug-in relay assembly - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85364900990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-37-16-01
• eCl@ss 9.0: 27-37-16-01
• ETIM 8.0: EC001437
• ETIM 9.0: EC001437
• GTIN: 4066966380125
• Packaging type: box
• Product Group: 6 (INTERFACE ELECTRONIC)
• PU (SPU): 25 (1) pcs

Connection data

• Connection technology: Push-in CAGE CLAMP^®
• Fine-stranded conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Fine-stranded conductor; with insulated ferrule: 0.34 … 1.5 mm² / 22 … 16 AWG
• Solid conductor: 0.34 … 2.5 mm² / 22 … 14 AWG
• Strip length: 9 … 10 mm / 0.35 … 0.39 inches

Environmental Product Compliance

• CAS-No.: 1303-86-2|1317-36-8|7439-92-1|79-94-7
• REACH Candidate List Substance: 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol|Diboron trioxide|Lead|Lead monoxide
• RoHS Compliance Status: Compliant,With Exemption
• RoHS Exemption: 7(a)|7(c)-I
• SCIP notification number (Austria): 8168b107-474c-46c7-bde2-d21ca93fa017
• SCIP notification number (Belgium): 8336f5b5-9623-4b4a-9d84-5608f27cbb51
• SCIP notification number (Bulgaria): 6b676836-8901-4141-9a22-1180742388e6
• SCIP notification number (Czech Republic): 397f1ad1-e765-4bf8-9d66-104d825fa1db
• SCIP notification number (Denmark): 9517a8e1-c1c6-4000-8546-1e11de060cad
• SCIP notification number (Finland): c325346d-d153-4c59-81ca-648a4633d3e0
• SCIP notification number (France): a864ad96-384b-4309-9cf9-c35c4a2ec507
• SCIP notification number (Germany): c13f5355-76a3-42f0-8654-456cba560b24
• SCIP notification number (Hungary): 0058c806-abd0-4e13-b691-146108f6ab40
• SCIP notification number (Italy): 94bebbf9-d59b-470d-81e9-a1ac75b96d76
• SCIP notification number (Netherlands): a7b4bb33-bf3e-45d1-a73b-4413764b61ff
• SCIP notification number (Poland): cc097f14-63bd-4bcc-833d-fbfb37478c45
• SCIP notification number (Romania): e57484e5-ec34-489a-b49b-bf8a45d2686a
• SCIP notification number (Sweden): bdad4532-22d1-4f17-a6a2-c395a890e08e

Environmental requirements

• Ambient temperature (operation at U_N): -40 … +60 °C
• Ambient temperature (storage): -40 … +70 °C
• Operating altitude (max.): 2000m
• Processing temperature: -25 … +50 °C
• Relative humidity: 5 … 85 % (no condensation permissible)
• Temperature range of connection cable: ≥ (T_ambient + 30 K)

Material data

• Fire load: 0.363MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Note (material data):
  Information on material specifications can be found here

• Weight: 39.3g

Mechanical data

• Mounting position: Horizontal (standing/lying); vertical
• Mounting type: DIN-35 rail

Notes

• Note: To protect the relay coils and contacts, inductive loads must be dampened with an effective protection circuit.

Physical data

• Depth from upper-edge of DIN-rail: 97.8 mm / 3.85 inches
• Height: 94 mm / 3.701 inches
• Width: 6 mm / 0.236 inches

Safety and protection

• Dielectric strength (channel/channel) (AC, 1 min.): 3 kVrms
• Dielectric strength (control/load circuit) (AC, 1 min): 4 kVrms
• Dielectric strength (open contact) (AC, 1 min): 1 kVrms
• Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
• Insulation type (control/load circuit): Reinforced insulation (safe isolation)
• Insulation type (load/load circuit): Reinforced insulation (safe isolation)
• Overvoltage category: II
• Pollution degree: 2
• Protection type: IP20
• Rated voltage: 300V

Standards and specifications

• Standards/specifications: EN 61010-2-201|EN 61810-1|EN 61373|UL 508|ATEX|IECEx

Technical data

• Control circuit - Input voltage range: -15 … +20 %
• Control circuit - Nominal input current at U_N: 10 mA
• Control circuit - Nominal input voltage U_N: 24 VAC/VDC
• Load circuit - Bounce time (typ.): 3.5ms
• Load circuit - Contact material (relay): AgSnO₂
• Load circuit - Drop-out time (typ.): 25ms
• Load circuit - Electrical life (NO; resistive load; 23 °C): 50 x 10³ switching operations
• Load circuit - Inrush current (resistive) max.: (AC) 20 A / 0.02 s
• Load circuit - Limiting continuous current: 4 A
• Load circuit - Mechanical life: 5 x 10⁶ switching operations
• Load circuit - Number of make/switch-on contacts: 1
• Load circuit - Pull-in time (typ.): 15ms
• Load circuit - Recommended minimum load: 10 V / 10 mA; 24 V / 1 mA
• Load circuit - Switching capacity: AC-15: 3 A / 250 VAC; DC-13: 2 A / 24 VDC
• Load circuit - Switching frequency with/without load (max.): 6 min^-1 / 180 min^-1
• Load circuit - Switching power (resistive) max.: AC 1000 VA; DC (see load limit curve)
• Load circuit - Switching Voltage, Max.: 250 VAC
• Signaling - Status indicator: Yellow LED
