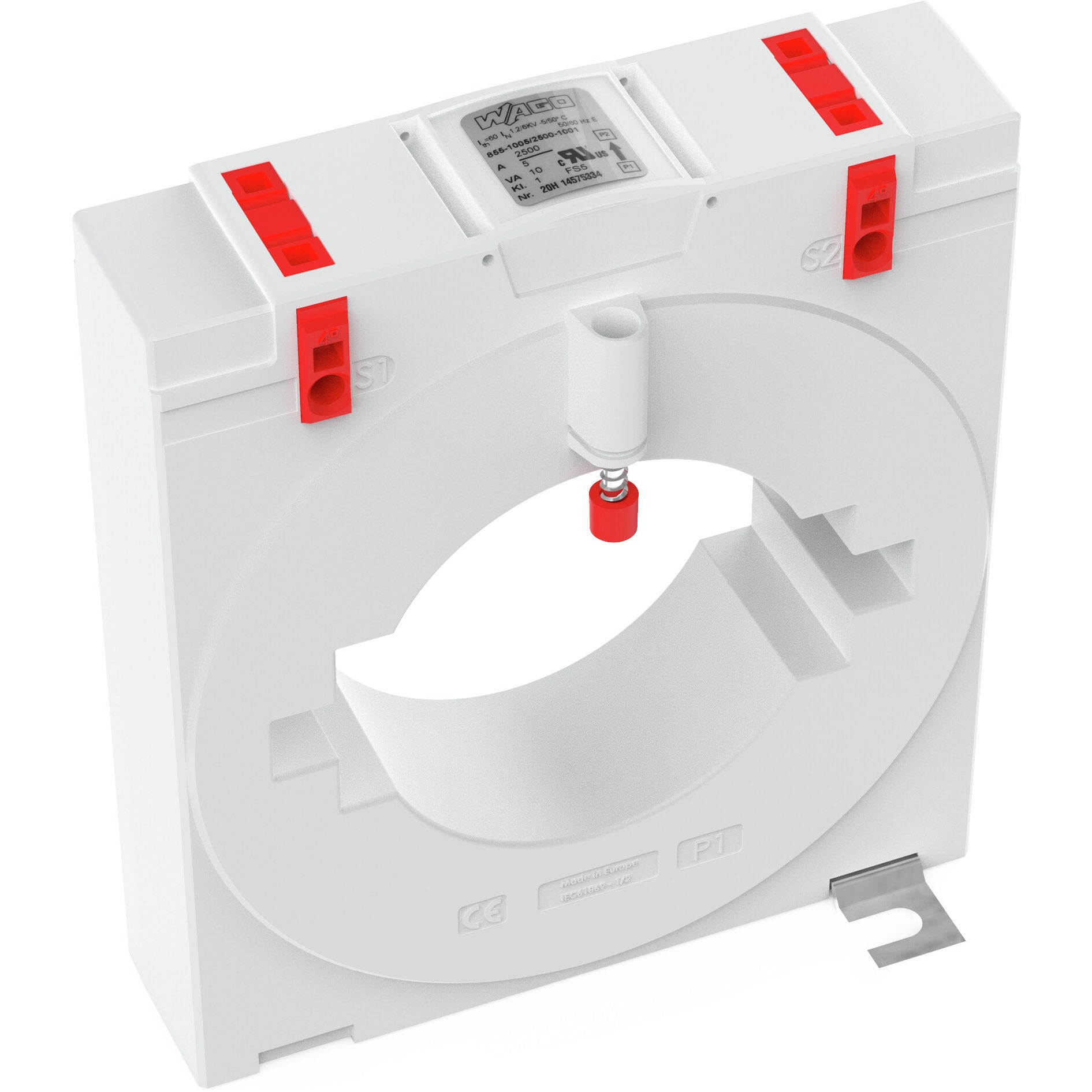

Measurement current transformer (CT) - 2500/5A - WAGO (855 series) - Accuracy Class 1 (Cl.1) (10VA max. burden) - with CAGE CLAMP spring connections - Surface / Cable mounting (130mm width) - Diameter 70mm (through-hole) - rated for -5°C...+50°C ambient - equivalent to 855100525001001

Specifications

• Primary brand: WAGO
• Functions: Measurement current transformer (CT)
• Design: 2500/5A
• Diameter: 70mm (through-hole)
• Connection type: CAGE CLAMP spring connections
• Mounting mode: Surface|Cable
• Dimensions: H147.45mm x W130mm x D52mm
• Net Width (mm): 130mm
• Ambient air temperature for operation: -5°C...+50°C
• Ambient air temperature for storage: -25°C...+70°C
• Customs Tariff Number: 85043129900
• eClass code: 27-21-09-02
• ETIM code: EC002048
• Rated power: 10VA
• Order code / Manufacturer SKU: 855-1005/2500-1001
• Manufacturer product status: Commercialized
• Equivalent to: 855100525001001
• EAN code: 4055143262972
• Compliant with standard(s): CE|EN 61869-1|EN 61869-2|UL E356480|General approvals|- EAC - GZO Almaty Standart - TP TC 004/2011 - certificate EAC CoC 03082|- UL - Underwriters Laboratories Inc. - certificate E356480|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Hungary
• Accuracy class: Class 1 (Cl.1)
• Level 1 category: Electrical components
• Level 2 category: Metering devices
• Level 3 category: Measurement sensors
• Level 4 category: Current transformers
• Product title: Measurement current transformer (CT) - WAGO

Commercial data

• Country of origin: HU
• Customs tariff number: 85043129900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-21-09-02
• eCl@ss 9.0: 27-21-09-02
• ETIM 8.0: EC002048
• ETIM 9.0: EC002048
• Packaging type: Box
• PU (SPU): 1 pcs

Connection data

• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Feedthrough for measurement conductor: Ø 70 mm

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -5 … +50 °C
• Ambient temperature (storage): -25 … +70 °C
• Operating altitude (max.): 1000m

Material data

• Insulation class: E
• Weight: 396g

Mechanical data

• Mounting type: Closed current transformer|Installation on mounting plate|Installation on round cable

Physical data

• Depth: 52 mm / 2.047 inches
• Height: 147.45 mm / 5.805 inches
• Width: 130 mm / 5.118 inches

Safety and protection

• Highest voltage for equipment U_m: 1.2 kV_rmsAC
• Test voltage: 6 kVAC; 50 Hz; 1 min

Standards and specifications

• Conformity marking: CE
• Standards/specifications: EN 61869-1|EN 61869-2|UL: E356480

Technical data

• Input - Measured variable: Current
• Input – current transformer - Overcurrent limiting factor: FS5 / FS10 (type dependent; see type plate inscription)
• Input – current transformer - Primary rated current: 2500 A
• Input – current transformer - Rated continuous thermal current I_cth: 1.2 x I_N
• Input – current transformer - Rated frequency: 50 … 60 Hz
• Input – current transformer - Rated short-time thermal current I_th: 60 x I_N / 1 s (max. 100 kA / 1 s)
• Measurement error - Accuracy class: 1
• Output – current transformer - Rated power S_r: 10VA
• Output – current transformer - Secondary rated current: 5A
