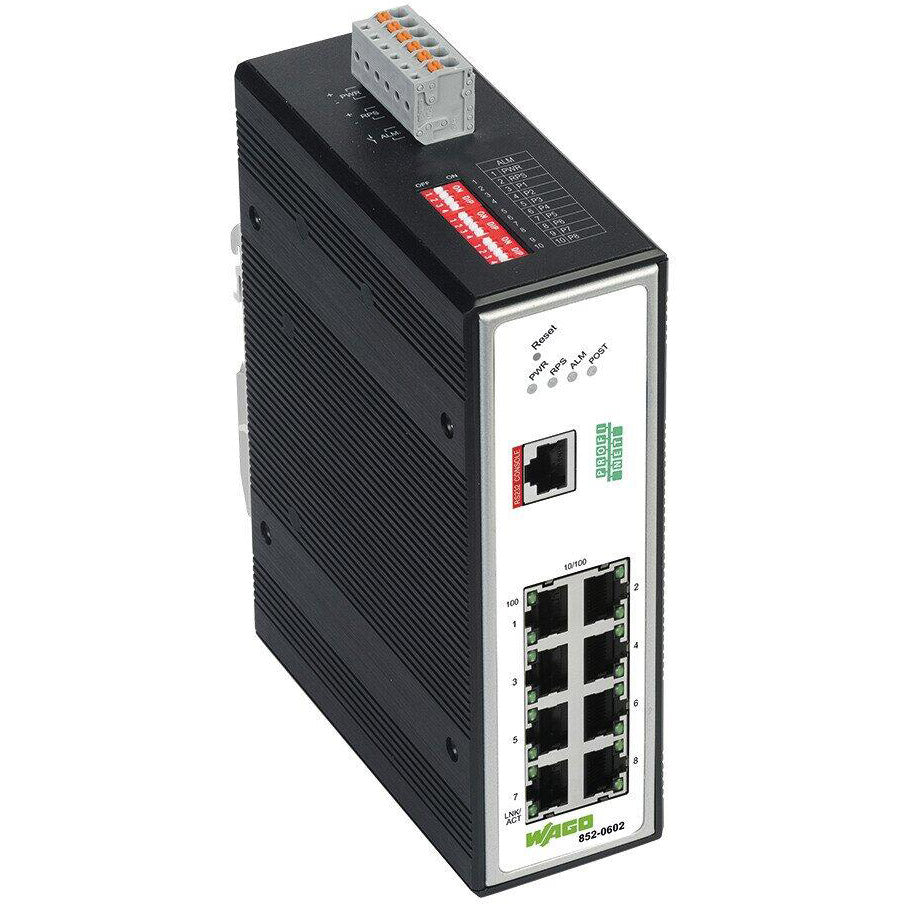

Wago - 852-602

8-ports Industrial managed Ethernet network switch with redundant DC pwr. suppl. - WAGO (852 series) - with Ethernet/IP communication capability - supply voltage 12-60Vdc - with 8 x RJ45 ports (100BASE-TX) - DIN-35 rail / wall mounting (50mm width) - IP30 - rated for -40°C...+70°C ambient - equivalent to 852602

Specifications

• Primary brand: WAGO
• Functions: Industrial managed Ethernet network switch|Configuration options|- DIP switch for signal contact|- Web-Based Management|- Command Line Interface|- SNMPv1/v2c/v3|IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3x Flow Control|IEEE 802.1d Spanning Tree Protocol (STP)|IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)|IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)|IEEE 802.1Q VLAN Tagging|IEEE 802.1p Class of service|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)|PROFINET Conformance Class B
• Design: redundant DC pwr. suppl.
• Supply voltage (DC): 12-60Vdc
• Display: LED (PWR; RPS) green -- Power supply (primary); redundant power supply (secondary)|LED (ALM) red -- Alarm or PROFINET error (with active PROFINET mode); pro Port|LED (100; LNK/ACT) green -- Status 100Mbps; LNK/ACT ports 1...8
• Connection capacity: 8-ports|can manage up to 16 000 connections
• Connection type: 8 x RJ45 ports (100BASE-TX)
• Mounting mode: DIN-35 rail|wall
• Dimensions: H162mm x W50mm x D120mm
• Net Width (mm): 50mm
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Current consumption: 1500mA max.
• Power consumption: 12W
• GTIN code: 4055143907989
• Customs Tariff Number: 85176200000
• ETIM code: EC000734
• Order code / Manufacturer SKU: 852-602
• Manufacturer product status: Commercialized
• Equivalent to: 852602
• EAN code: 4055143907989
• Compliant with standard(s): EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-ISW852|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|Protocol and fieldbus specific certificates|- Profi-Net - Siemens AG/ComDeC - certificate Z12462|RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Switches
• Product title: Industrial managed Ethernet network switch - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85176200000
• ECCN: 5A992.C
• ETIM 8.0: EC000734
• ETIM 9.0: EC000734
• GTIN: 4055143907989
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45
• Connection technology: supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C
• Ambient temperature (storage): -40 … +80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Fire load: 0.302MJ
• Mounting type: DIN-35 rail
• Protection type: IP30
• Relative humidity (without condensation): 95%
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Mechanical data

• Color: black metallic
• Weight: 882g

Physical data

• Depth: 120 mm / 4.724 inches
• Height: 162 mm / 6.378 inches
• Width: 50 mm / 1.969 inches

Technical data

• Communication standards: IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3x Flow Control|IEEE 802.1d Spanning Tree Protocol (STP)|IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)|IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)|IEEE 802.1Q VLAN Tagging|IEEE 802.1p Class of service|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)|PROFINET Conformance Class B
• Configuration options: DIP switch for signal contact|Web-Based Management|Command Line Interface|SNMPv1/v2c/v3
• Current consumption (max.): 1500mA
• Diagnostics: Signal contact; Port status; Port statistics; Port load; Traffic monitor; SFP information; Syslog; SNMP traps; PN diagnostics (cyclic and acyclic)
• ESD (contact/air discharge): 8 KV / 15 KV
• Indicators: Device: LED (PWR, RPS) green: Power supply (primary), redundant power supply (secondary); LED (ALM) red: Alarm or PROFINET error (with active PROFINET mode); pro Port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8
• Jumbo frame size: 10000.Byte
• MAC table (size): 16000 addresses
• Number of 100 Mbps ports: 8
• Power consumption (max.): 12W
• Redundancy function: Redundant DC power supply; STP; RSTP; MSTP; Media redundancy protocol as manager or client
• Supply voltage: 12 … 60 VDC
• Switching mode: Store-and-forward; non-blocking
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5e or higher, 100 m maximum cable length
• Transmission rate: Copper cable: 10/100 Mbit/s
• VLAN: Port-based and tag-based (4k VIDs)
