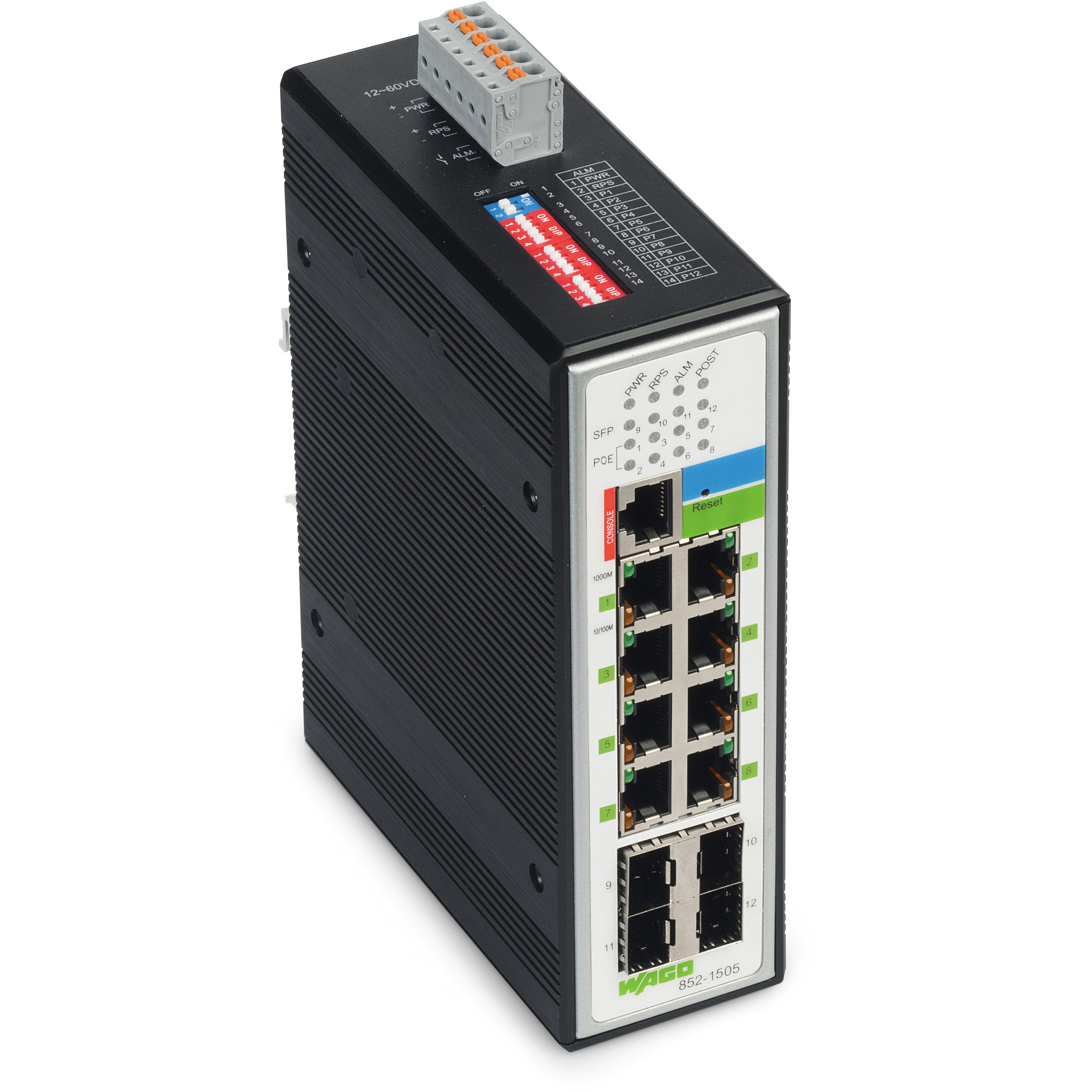

13-ports Industrial Gigabit (GbE/GigE) managed Ethernet network switch with redundant DC pwr. suppl. - WAGO (852 series) - Industrial Managed Switch; 8-Port Gb; 4-Slot 1000BASE-SX/LX; EXT; 8PoE - with Ethernet/IP communication capability - supply voltage 48-57Vdc - with 8 x RJ45 ports (1000BASE-T / PoE) + 4 x SFP ports (single-mode/multi-mode; 1000BASE-SX/LX) + 1 x RS-232 port - DIN-35 rail / wall mounting (50mm width) - IP30 - rated for -40°C...+70°C ambient - equivalent to 8521505

Specifications

• Primary brand: WAGO
• Functions: Industrial Gigabit (GbE/GigE) managed Ethernet network switch|Configuration options|- DIP switch for signal contact|- Command Line Interface|- SNMPv1/v2c/v3|IEEE 802.3 10BASE-T / IEEE 802.3u 100BASE-TX / IEEE 802.3ab 1000BASE-T / IEEE 802.3z 1000BASE-SX/LX / IEEE 802.3ad Port Trunk with LACP / IEEE 802.3x Flow Control / IEEE 802.1d Spanning Tree Protocol (STP) / IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) / IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) / IEEE 802.1q VLAN Tagging / IEEE 802.1p Prioritization / IEEE 802.1X Port Authentication / IEEE 802.1ab Link Layer Discovery Protocol (LLDP) / IEEE 1588v2 Precision Time Protocol (PTP) / IEEE 802.3af Power over Ethernet (PoE) / IEEE 802.3at High Power over Ethernet (PoE+) / ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS) communication standards
• Design: redundant DC pwr. suppl.
• Supply voltage (DC): 48-57Vdc
• Display: LED (PWR; RPS; POST) green -- power supply (primary); redundant power supply (secondary); POST function|LED (ALM) red -- Alarm|LED (SFP) green -- Status fiber optic ports|LED (1000M; 10/100M) green; yellow -- Status 1000Mbps; 10/100Mbps ports 1...8
• Connection capacity: 13-ports|can manage up to 16 000 connections
• Connection type: 8 x RJ45 ports (1000BASE-T / PoE)|4 x SFP ports (single-mode/multi-mode; 1000BASE-SX/LX)|1 x RS-232 port
• Mounting mode: DIN-35 rail|wall
• Dimensions: H162mm x W50mm x D120mm
• Net Width (mm): 50mm
• Material: Aluminium housing
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Current consumption: 5000mA max.
• Power consumption: 18W|(with PoE+) 258W
• ETIM code: EC000734
• Customs Tariff Number: 85176200000
• GTIN code: 4055143728010
• eClass code: 19-17-01-30
• Order code / Manufacturer SKU: 852-1505
• Manufacturer product status: Commercialized
• Equivalent to: 8521505
• EAN code: 4055143728010
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-ISW852|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Switches
• Product title: Industrial Gigabit (GbE/GigE) managed Ethernet network switch - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85176200000
• ECCN: 5A992.C
• eCl@ss 10.0: 19-17-01-30
• eCl@ss 9.0: 19-17-01-06
• ETIM 8.0: EC000734
• ETIM 9.0: EC000734
• GTIN: 4055143728010
• Packaging type: box
• PU (SPU): 1 pcs|1 Stück

Connection data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45; Fiber optic: 4 x SFP slots (e.g., with SFP module and LC fiber-optic connector)|Copper cable: 8 x RJ-45; Fiber optic: 4 x SFP; LC fiber-optic connector
• Connection technology: supply: 1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000|1 x Built-in male connector: 231-436/001-000; included female connector (MCS Connectors): 2231-106/026-000

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C|-40 … 70 °C
• Ambient temperature (storage): -40 … +80 °C|-40 … 80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Fire load: 0.302|0.234MJ
• Mounting type: DIN-35 rail
• Protection type: IP30
• Relative humidity (without condensation): 95%
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Mechanical data

• Color: black metallic|metallic black
• Conformity marking: CE
• Housing material: Aluminum
• Weight: 860g

Physical data

• Depth: 120 mm / 4.724 inches|120 mm / 4.724 inch
• Height: 162 mm / 6.378 inches|162 mm / 6.378 inch
• Width: 50 mm / 1.969 inches|50 mm / 1.969 inch

Technical data

• Communication standards: IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3ab 1000BASE-T|IEEE 802.3z 1000BASE-SX/LX|IEEE 802.3ad Port Trunk with LACP|IEEE 802.3x Flow Control|IEEE 802.1d Spanning Tree Protocol (STP)|IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)|IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)|IEEE 802.1q VLAN Tagging|IEEE 802.1p Prioritization|IEEE 802.1x Port Authentication|IEEE 802.1ab Link Layer Discovery Protocol (LLDP)|IEEE 802.3af Power over Ethernet (PoE)|IEEE 802.3at High Power over Ethernet (PoE+)|ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)|ITU-T G8032v1/v2 Ethernet Ring Protection Switching (ERPS)
• Configuration options: DIP switch for signal contact|Command Line Interface|SNMPv1/v2c/v3
• Control Elements: 14 x DIP switch: Alarm function power supplies and ports 1 … 12
• Current consumption (max.): 5000mA
• Diagnostics: Signal contact, Modbus/TCP, port status, port statistics, port load, traffic monitor, SFP information, syslog, mail alarm, SNMP traps
• ESD (contact/air discharge): 8 KV / 15 KV
• Indicators: Device: LED (PWR, RPS, POST) green: power supply (primary), redundant power supply (secondary), POST function; LED (ALM) red: Alarm; LED (SFP) green, Status fiber optic ports; per port: LED (1000M, 10/100M) green, yellow: Status 1000 Mbps, 10/100 Mbps ports 1 … 8
• Jumbo frame size: 10000.Byte
• MAC table (size): 16000 addresses
• Number of 1 Gb/s ports: 8
• Number of 1 Gb/s ports SFP: 4
• Optical fiber type: Single-Mode and Multi-Mode
• Power consumption (max.): 18W
• Power consumption (note): 258 W with 8 PoE+
• Redundancy function: Redundant DC power supply; STP; RSTP; MSTP; Jet Ring < 300 ms; Xpress Ring < 20 ms; Dual Homing < 20 ms; Dual Ring; ERPSv2 < 50 ms; LCAP|Redundant DC power supply; STP; RSTP; MSTP; Jet Ring < 300 ms; Xpress Ring < 20 ms; Dual Homing < 20 ms; Dual Ring; ERPSv2 < 50 ms; LCAP
• Supply voltage: 48 … 57 VDC
• Switching mode: Store-and-forward; non-blocking|Store‐and‐forward; non-blocking
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5e or higher, 100 m maximum cable length; Fiber optic: SX Multi-Mode, LX Single-Mode
• Transmission rate: Copper cable: 10/1000 Mbit/s; Fiber optic:1000 Mbit/s
• VLAN: Port-based and tag-based (4k VIDs)
