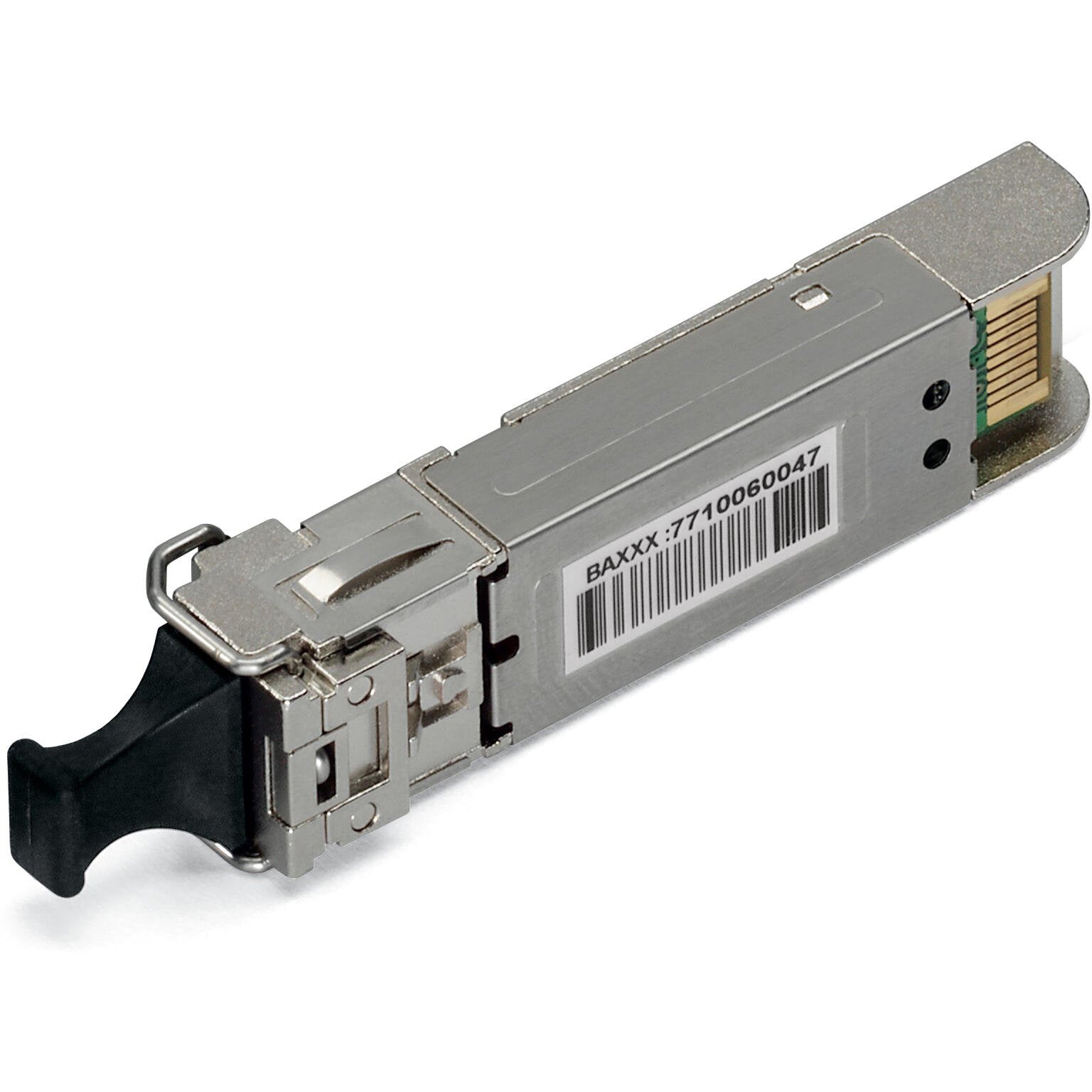

Wago - 852-1280

Small form-factor pluggable (SFP) package transceiver with diagnostic monitoring support + 9/125μm (single-mode fiber) - WAGO (852 series) - SFP Module 1000BASE; ZX Single-Mode 1550 nm LC; 80km; EXT; DDM - rated for -40°C...+85°C ambient - equivalent to 8521280

Specifications

• Primary brand: WAGO
• Functions: Small form-factor pluggable (SFP) package transceiver
• Design: diagnostic monitoring support|9/125μm (single-mode fiber)
• Wavelength: 1550nm
• Dimensions: H13.3mm x W13.4mm x D56.6mm
• Ambient air temperature for operation: -40°C...+85°C
• Ambient air temperature for storage: -40°C...+85°C
• Customs Tariff Number: 85176200000
• GTIN code: 4055143394154
• eClass code: 19-17-01-30
• ETIM code: EC000309
• Order code / Manufacturer SKU: 852-1280
• Manufacturer product status: Commercialized
• Equivalent to: 8521280
• EAN code: 4055143394154
• Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-SFP852|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Fiber optic transceiver modules
• Product title: Small form-factor pluggable (SFP) package transceiver - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85176200000
• ECCN: 5A992.C
• eCl@ss 10.0: 19-17-01-30
• eCl@ss 9.0: 19-17-01-06
• ETIM 8.0: EC000309
• ETIM 9.0: EC000309
• GTIN: 4055143394154
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connection requirement (permissible cable length): 80,000m
• Connection requirement (permissible cable type): Single-mode fiber 9/125 µm; Wavelength: 1550 nm
• Connection technology: communication/fieldbus: 1 x SFP; LC fiber-optic connector

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +85 °C
• Ambient temperature (storage): -40 … +85 °C

Mechanical data

• Color: silver-colored
• Weight: 17g

Physical data

• Depth: 56.6 mm / 2.228 inches
• Height: 13.3 mm / 0.524 inches
• Width: 13.4 mm / 0.528 inches

Technical data

• Optical fiber type: Single-mode
