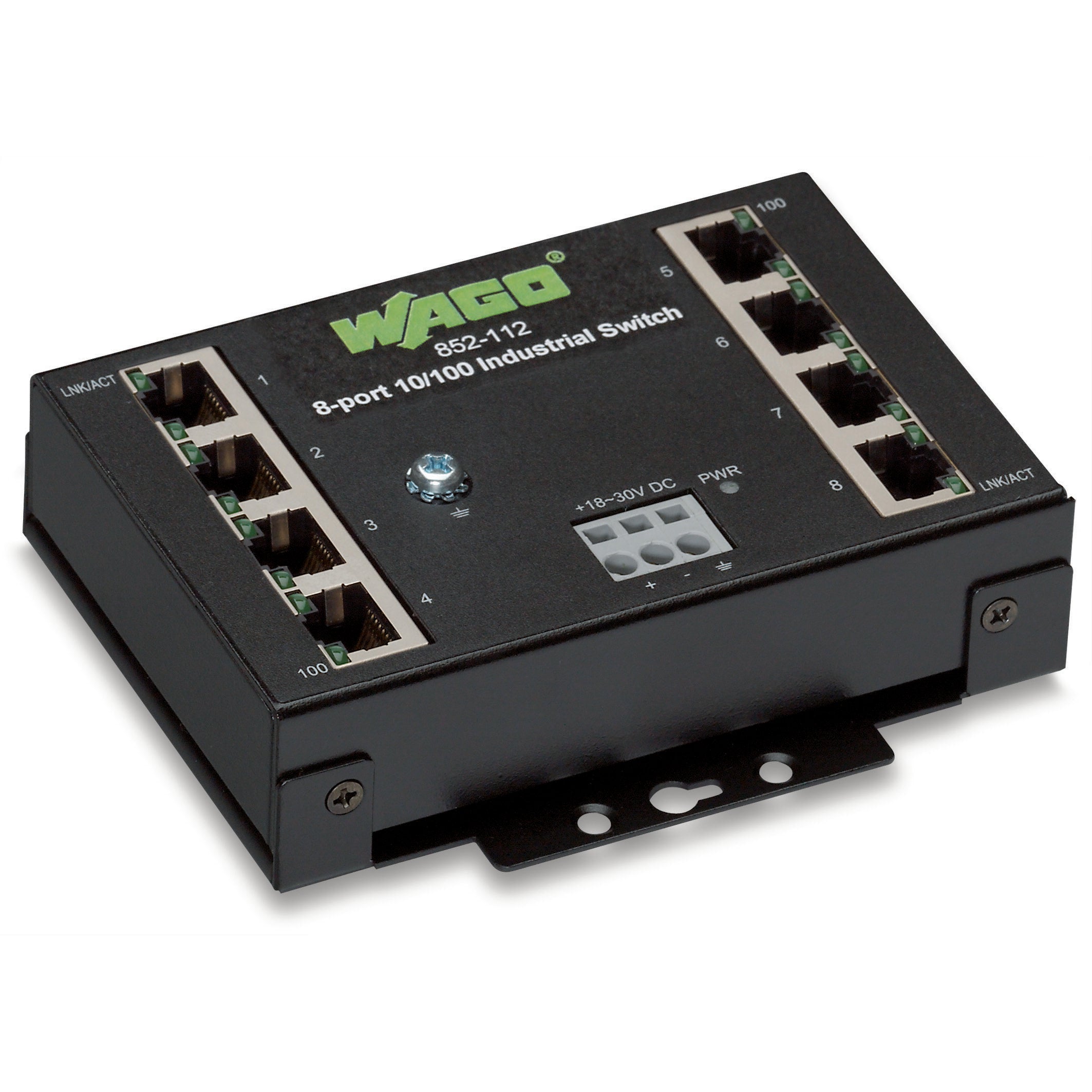

Wago - 852-112

#phasing-out - 8-ports Industrial Eco Ethernet network switch - WAGO (852 series) - Industrial Eco Switch; 8Port - with Ethernet/IP communication capability - supply voltage 18-30Vdc (24Vdc nom.) - with 8 x RJ45 ports (100BASE-TX) - DIN-35 rail / wall mounting (109.2mm width) - IP30 - rated for -40°C...+70°C ambient - equivalent to 852112

Specifications

• Primary brand: WAGO
• Functions: Industrial Eco Ethernet network switch|star topology|IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3x Flow Control
• Supply voltage (DC): 18-30Vdc (24Vdc nom.)
• Display: LED (PWR) green -- Power supply|LED (100; LNK/ACT) green -- Status 100Mbps; LNK/ACT ports 1...8
• Connection capacity: 8-ports|can manage up to 2000 connections
• Connection type: 8 x RJ45 ports (100BASE-TX)
• Mounting mode: DIN-35 rail|wall
• Dimensions: H73.8mm x W109.2mm x D24mm
• Net Width (mm): 109.2mm
• Material: Sheet steel
• Ambient air temperature for operation: -40°C...+70°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Current consumption: 200mA max.
• Power consumption: 3W
• GTIN code: 4045454847586
• ETIM code: EC000734
• eClass code: 19-17-01-30
• Customs Tariff Number: 85176200000
• Order code / Manufacturer SKU: 852-112
• Manufacturer product status: Phasing out
• Equivalent to: 852112
• Product replaced by: 852-112/000-001
• EAN code: 4045454847586
• Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-ISW852|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.7|RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Switches
• Product title: Industrial Eco Ethernet network switch - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85176200000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 19-17-01-30
• eCl@ss 9.0: 19-17-01-06
• ETIM 8.0: EC000734
• ETIM 9.0: EC000734
• GTIN: 4045454847586
• Packaging type: box
• Product Group: 27 (special components I/O)
• PU (SPU): 1 pcs

Connection data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45
• Connection technology: supply: 1 x Built-in PCB terminal block: 739-103

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): -40 … +70 °C (UL max. +60 °C)
• Ambient temperature (storage): -40 … +80 °C
• Mounting type: DIN-35 rail
• Protection type: IP30
• Relative humidity (without condensation): 95%
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Mechanical data

• Color: black
• Housing material: Sheet steel
• Weight: 415g

Physical data

• Depth: 24 mm
• Depth from upper-edge of DIN-rail: 32 mm / 1.26 inches
• Height: 73.8 mm / 2.906 inches
• Width: 109.2 mm / 4.299 inches

Technical data

• Communication standards: IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3x Flow Control
• Current consumption (max.): 200mA
• ESD (contact/air discharge): 4 KV / 8 KV
• Indicators: Device: LED (PWR) green: Power supply; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT ports 1 … 8
• Jumbo frame size: 1536.Byte
• MAC table (size): 2000 addresses
• Number of 100 Mbps ports: 8
• Power consumption (max.): 3W
• Supply voltage: 18 … 30 VDC
• Switching mode: Store-and-forward; non-blocking
• Topology: Star
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5 or higher, 100 m maximum cable length
• Transmission rate: Copper cable: 10/100 Mbit/s
