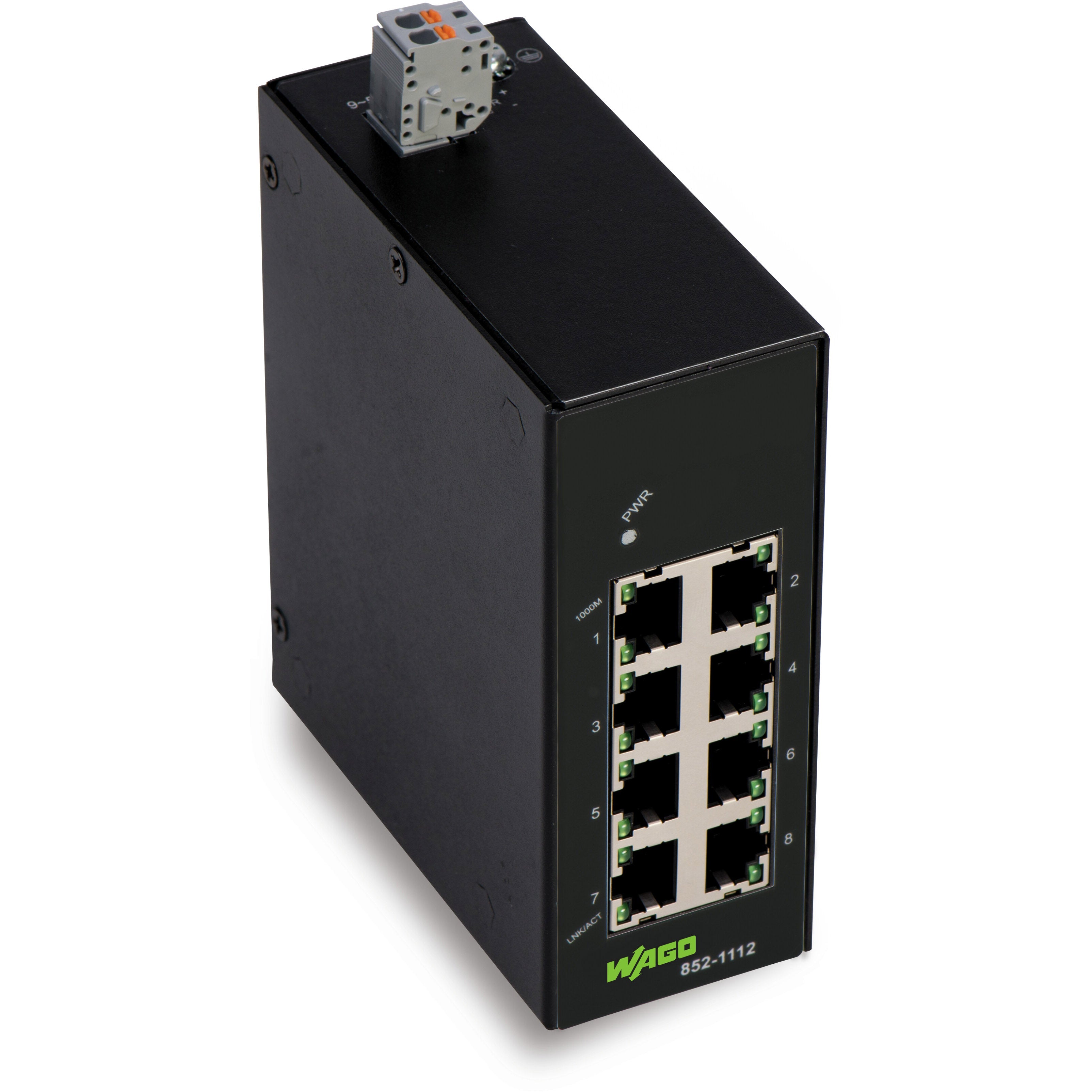

Wago - 852-1112

8-ports Industrial Eco Gigabit (GbE/GigE) Ethernet network switch - WAGO (852 series) - Industrial Eco Switch; 8-Port Gb - with Ethernet/IP communication capability - supply voltage 9-57Vdc - with 8 x RJ45 ports (1000BASE-T) - DIN-35 rail / wall mounting (50mm width) - IP30 - rated for 0°C...+60°C ambient - equivalent to 8521112

Specifications

• Primary brand: WAGO
• Functions: Industrial Eco Gigabit (GbE/GigE) Ethernet network switch|star topology|IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3ab 1000BASE-T|IEEE 802.3x Flow Control|IEEE 802.3az Energy Efficient Ethernet|IEEE 802.1p Prioritization
• Supply voltage (DC): 9-57Vdc
• Display: LED (PWR) green -- Power supply|LED (1000) green -- Status 1000Mbps; 1000Mbps ports 1...8
• Connection capacity: 8-ports|can manage up to 8000 connections
• Connection type: 8 x RJ45 ports (1000BASE-T)
• Mounting mode: DIN-35 rail|wall
• Dimensions: H116mm x W46mm x D110mm
• Net Width (mm): 50mm
• Material: Sheet steel
• Ambient air temperature for operation: 0°C...+60°C
• Ambient air temperature for storage: -40°C...+80°C
• Humidity: 95% relative humidity (RH; non-condensing)
• Current consumption: 1000mA max.
• Power consumption: 6W
• ETIM code: EC000734
• Customs Tariff Number: 85176200000
• GTIN code: 4055143500180
• eClass code: 19-17-01-30
• Order code / Manufacturer SKU: 852-1112
• Manufacturer product status: Commercialized
• Equivalent to: 8521112
• EAN code: 4055143500180
• Compliant with standard(s): CE|EMC immunity to interference|- EN 61000-6-2|EMC emission of interference|- EN 61000-6-4|General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-ISW852|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 61010-2-201 - certificate E175199|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant
• Location of origin: Taiwan
• Level 1 category: Automation components
• Level 2 category: Communication infrastructure
• Level 3 category: Switches
• Product title: Industrial Eco Gigabit (GbE/GigE) Ethernet network switch - WAGO

Commercial data

• Country of origin: TW
• Customs tariff number: 85176200000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 19-17-01-30
• eCl@ss 9.0: 19-17-01-06
• ETIM 8.0: EC000734
• ETIM 9.0: EC000734
• GTIN: 4055143500180
• Packaging type: box
• PU (SPU): 1 pcs

Connection data

• Connection technology: communication/fieldbus: Copper cable: 8 x RJ-45
• Connection technology: supply: 1 x Built-in male connector: 231-432/001-000; included female connector (MCS Connectors): 2231-102/026-000

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Ambient temperature (operation): 0 … +60 °C
• Ambient temperature (storage): -40 … +80 °C
• EMC emission of interference: per EN 61000-6-4
• EMC immunity to interference: per EN 61000-6-2
• Mounting type: DIN-35 rail
• Protection type: IP30
• Relative humidity (without condensation): 95%
• Shock resistance: per IEC 60068-2-27
• Vibration resistance: per IEC 60068-2-6

Mechanical data

• Color: black
• Conformity marking: CE
• Housing material: Sheet steel
• Weight: 487g

Physical data

• Depth: 110 mm
• Depth from upper-edge of DIN-rail: 99.6 mm / 3.921 inches
• Height: 116 mm / 4.567 inches
• Width: 46 mm / 1.811 inches

Technical data

• Communication standards: IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3ab 1000BASE-T|IEEE 802.3x Flow Control|IEEE 802.3az Energy Efficient Ethernet|IEEE 802.1p Prioritization
• Current consumption (max.): 1000mA
• ESD (contact/air discharge): 8 KV / 15 KV
• Indicators: Device: LED (PWR) green: Power supply; per port: LED (1000) green: Status 1000 Mbps, 1000 Mbps ports 1 … 8
• Jumbo frame size: 9000.Byte
• MAC table (size): 8000 addresses
• Number of 1 Gb/s ports: 8
• Power consumption (max.): 6W
• Supply voltage: 9 … 57 VDC
• Switching mode: Store-and-forward; non-blocking
• Topology: Star
• Transmission medium (communication/fieldbus): Copper cable: Cat. 5e or higher, 100 m maximum cable length
• Transmission rate: Copper cable: 10/1000 Mbit/s
