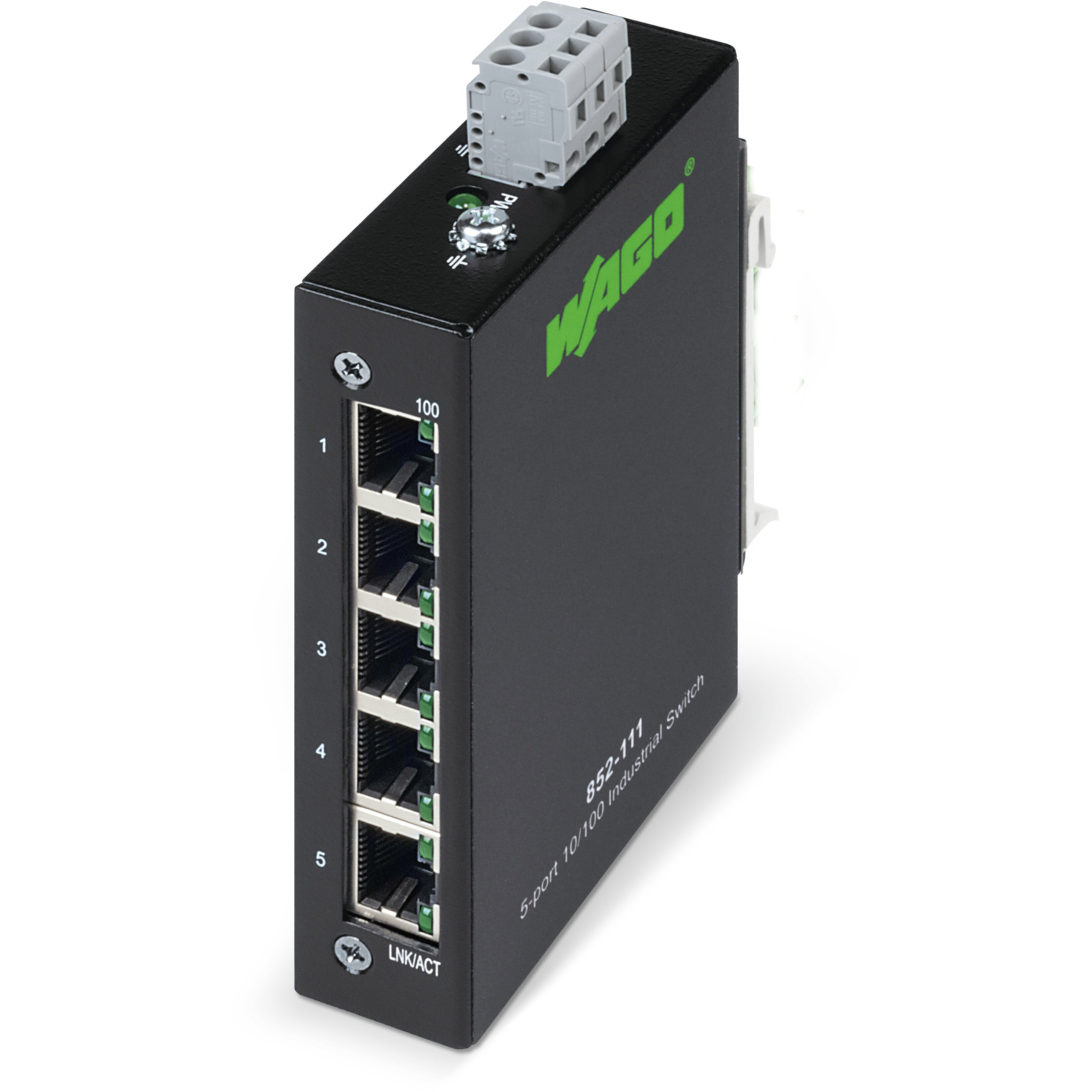

#phasing-out - 5-ports Industrial Eco Ethernet network switch - WAGO (852 series) - Industrial Eco Switch; 5Port - with Ethernet/IP communication capability - supply voltage 18-30Vdc (24Vdc nom.) - with 5 x RJ45 ports (100BASE-TX) - DIN-35 rail / wall mounting (23.4mm width) - IP30 - rated for -40°C...+70°C ambient - equivalent to 852111

Specifications

  • Primary brand: WAGO
  • Functions: Industrial Eco Ethernet network switch|star topology|IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3x Flow Control
  • Supply voltage (DC): 18-30Vdc (24Vdc nom.)
  • Display: LED (PWR) green -- Power supply|LED (100; LNK/ACT) green -- Status 100Mbps; LNK/ACT ports 1...5
  • Connection capacity: 5-ports|can manage up to 2000 connections
  • Connection type: 5 x RJ45 ports (100BASE-TX)
  • Mounting mode: DIN-35 rail|wall
  • Dimensions: H109.2mm x W23.4mm x D73.8mm
  • Net Width (mm): 23.4mm
  • Material: Sheet steel
  • Ambient air temperature for operation: -40°C...+70°C
  • Ambient air temperature for storage: -40°C...+80°C
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Current consumption: 150mA max.
  • Power consumption: 3W
  • ETIM code: EC000734
  • Customs Tariff Number: 85176200000
  • GTIN code: 4045454847593
  • eClass code: 19-17-01-30
  • Order code / Manufacturer SKU: 852-111
  • Manufacturer product status: Phasing out
  • Equivalent to: 852111
  • Product replaced by: 852-111/000-001|852-112/000-001
  • EAN code: 4045454847593
  • Compliant with standard(s): General approvals|- EAC - GZO Almaty Standart - TP TC 020/2011 - certificate EAC CoC 03083|- KC - National Radio Research Agency - Article 58-2 / Clause 3 - certificate MSIP-REM-W43-ISW852|- UL - Underwriters Laboratories Inc. (ORDINARY LOCATIONS) - UL 508 - certificate E175199 Sec.7|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- DNV - DNV GL SE - certificate TAA0000239|RoHS compliant
  • Location of origin: Taiwan
  • Level 1 category: Automation components
  • Level 2 category: Communication infrastructure
  • Level 3 category: Switches
  • Product title: Industrial Eco Ethernet network switch - WAGO

Commercial data

  • Country of origin: TW
  • Customs tariff number: 85176200000
  • ECCN: NO US CLASSIFICATION
  • eCl@ss 10.0: 19-17-01-30
  • eCl@ss 9.0: 19-17-01-06
  • ETIM 8.0: EC000734
  • ETIM 9.0: EC000734
  • GTIN: 4045454847593
  • Packaging type: box
  • Product Group: 27 (special components I/O)
  • PU (SPU): 1 pcs

Connection data

  • Connection technology: communication/fieldbus: Copper cable: 5 x RJ-45
  • Connection technology: supply: 1 x Built-in male connector: 231-433/001-000; included female connector (MCS Connectors): 231-103/026-000

Environmental Product Compliance

  • RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

  • Ambient temperature (operation): -40 … +70 °C (UL max. +60 °C)
  • Ambient temperature (storage): -40 … +80 °C
  • Fire load: 5.28MJ
  • Mounting type: Wall mount (horizontal or vertical)
  • Protection type: IP30
  • Relative humidity (without condensation): 95%
  • Shock resistance: per IEC 60068-2-27
  • Vibration resistance: per IEC 60068-2-6

Mechanical data

  • Color: black
  • Housing material: Sheet steel
  • Weight: 302g

Physical data

  • Depth from upper-edge of DIN-rail: 73.8 mm / 2.906 inches
  • Height: 109.2 mm / 4.299 inches
  • Width: 23.4 mm / 0.921 inches

Technical data

  • Communication standards: IEEE 802.3 10BASE-T|IEEE 802.3u 100BASE-TX|IEEE 802.3x Flow Control
  • Current consumption (max.): 150mA
  • ESD (contact/air discharge): 4 KV / 8 KV
  • Indicators: Device: LED (PWR) green: Power supply; per port: LED (100, LNK/ACT) green: Status 100 Mbps, LNK/ACT port 1 … 5
  • Jumbo frame size: 1536.Byte
  • MAC table (size): 2000 addresses
  • Number of 100 Mbps ports: 5
  • Power consumption (max.): 3W
  • Supply voltage: 18 … 30 VDC
  • Switching mode: Store-and-forward; non-blocking
  • Topology: Star
  • Transmission medium (communication/fieldbus): Copper cable: Cat. 5 or higher, 100 m maximum cable length
  • Transmission rate: Copper cable: 10/100 Mbit/s
