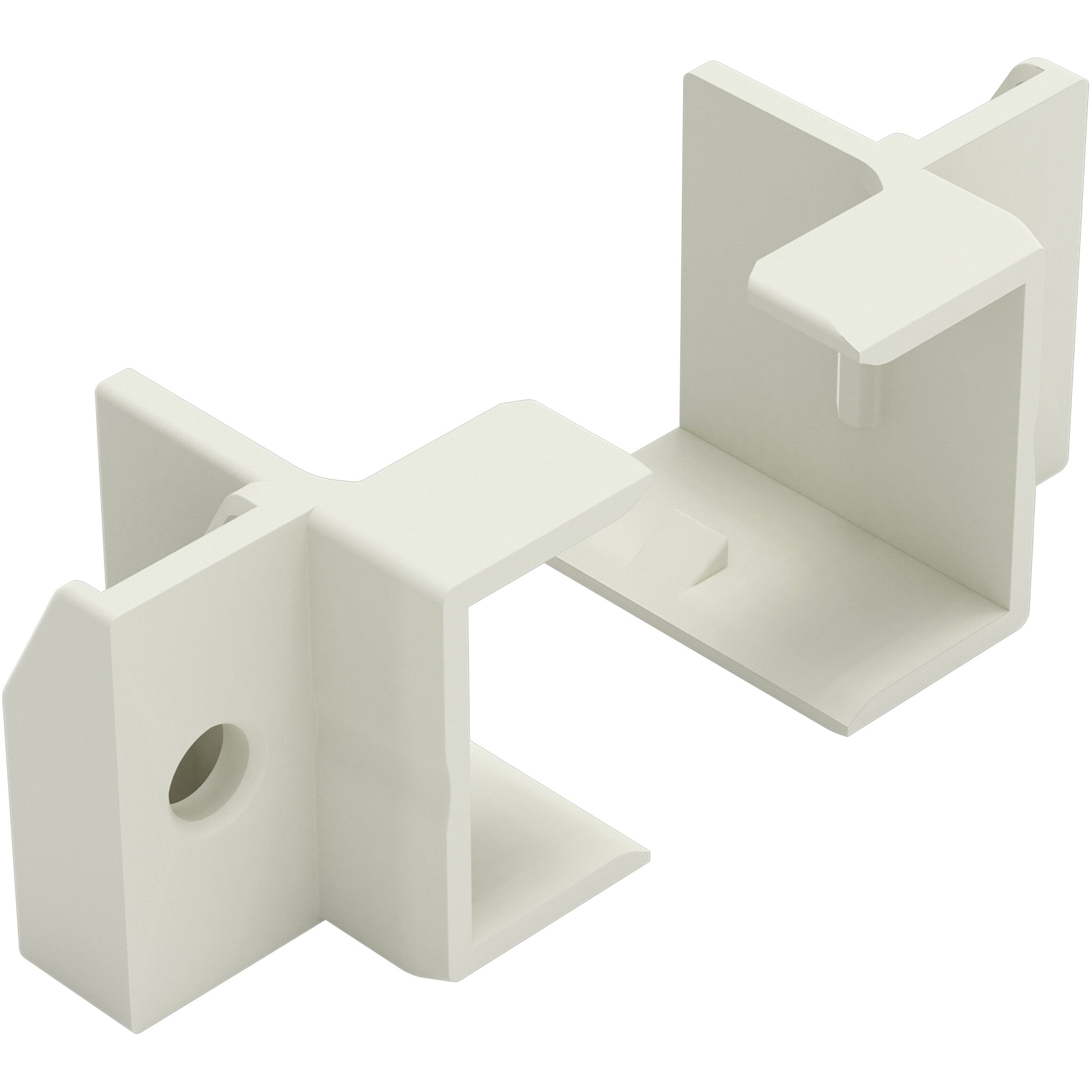

Wago - 832-300
$8.00
Sale price
$8.00
Regular price
WAGO component - equivalent to 832300
Specifications
- Primary brand: WAGO
- GTIN code: 4066966089301
- Order code / Manufacturer SKU: 832-300
- Manufacturer product status: Commercialized
- Equivalent to: 832300
- EAN code: 4066966089301
- Manufacturer description: Locking device; for feed-through mounting; 2 parts; light gray
- Manufacturer product specifications: Physical data - Width -- 21.8mm|Physical data - Height -- 20.2mm|Physical data - Depth -- 19.5mm|Mechanical data - Variable coding -- Yes|Mechanical data - Housing sheet thickness -- 0.5...4mm / 0.02...0.157"|Plug-in connection - Mismating protection -- Yes|Material data - Color -- light gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polybutylene terephthalate (PBT)|Material data - Flammability class per UL94 -- V0|Material data - Fire load -- 0.3MJ|Material data - Weight -- 10g|Commercial data - ETIM 9.0 -- EC002848|Commercial data - ETIM 8.0 -- EC002848|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 20 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- JP|Commercial data - GTIN -- 4066966089301|Commercial data - Customs tariff number -- 85389099990|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
- Location of origin: Japan
- Level 1 category: Electrical components
Commercial data
- Country of origin: JP
- Customs tariff number: 85389099990
- ECCN: NO US CLASSIFICATION
- ETIM 8.0: EC002848
- ETIM 9.0: EC002848
- GTIN: 4066966089301
- Packaging type: Box
- PU (SPU): 20 pcs
Environmental Product Compliance
- RoHS Compliance Status: Compliant,No Exemption
Material data
- Color: light gray
- Fire load: 0.3MJ
- Flammability class per UL94: V0
- Insulation material (main housing): Polybutylene terephthalate (PBT)
- Material group: I
-
Note (material data):
Information on material specifications can be found here
- Weight: 10g
Mechanical data
- Housing sheet thickness: 0.5 … 4 mm / 0.02 … 0.157 inches
- Variable coding: Yes
Physical data
- Depth: 19.5 mm
- Height: 20.2 mm
- Width: 21.8 mm
Plug-in connection
- Mismating protection: Yes
