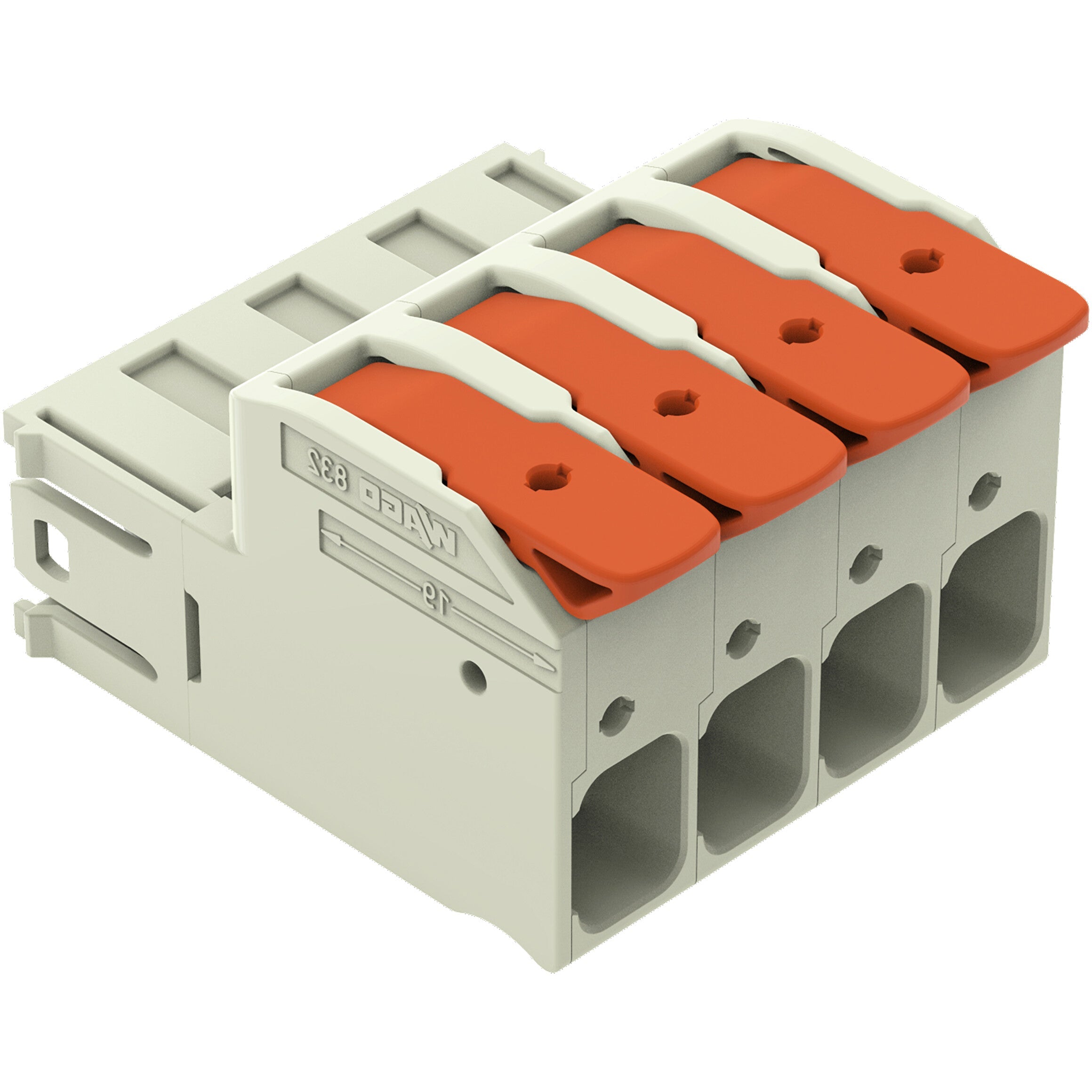

Wago - 832-1204

WAGO component - equivalent to 8321204

Specifications

• Primary brand: WAGO
• GTIN code: 4055143748988
• Order code / Manufacturer SKU: 832-1204
• Manufacturer product status: Commercialized
• Equivalent to: 8321204
• EAN code: 4055143748988
• Manufacturer description: 1-conductor male connector; lever; Push-in CAGE CLAMP; 16mm2; Pin spacing 10.16mm; 4-pole; 100% protected against mismating; Silver-plated contacts; 16mm2; light gray
• Location of origin: Poland
• Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 8kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 76A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group B) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group B) -- 66A|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 66A|Electrical data - Ratings per UL 1977 - Rated voltage (UL 1977) -- 600V|Electrical data - Ratings per UL 1977 - Rated current UL 1977 -- 85A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group B) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group B) -- 66A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 66A|Connection data - Clamping units -- 4|Connection data - Total number of potentials -- 4|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- Push-in CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Lever|Connection data - Connection 1 - Solid conductor -- 0.75...16mm2 / 18...4 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 0.75...25mm2 / 18...4 AWG|Connection data - Connection 1 - Fine-stranded conductor; with insulated ferrule -- 0.75...16mm2|Connection data - Connection 1 - Fine-stranded conductor; with uninsulated ferrule -- 0.75...16mm2|Connection data - Connection 1 - Strip length -- 18...20mm / 0.71...0.79"|Connection data - Connection 1 - Pole number -- 4|Connection data - Connection 1 - Conductor entry direction to mating direction -- 0°|Physical data - Pin spacing -- 10.16mm / 0.4"|Physical data - Width -- 41.94mm / 1.651"|Physical data - Height -- 29.1mm / 1.146"|Physical data - Depth -- 50.6mm / 1.992"|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for conductor|Plug-in connection - Mismating protection -- Yes|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Locking of plug-in connection -- none|Material data - Color -- light gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polybutylene terephthalate (PBT)|Material data - Flammability class per UL94 -- V0|Material data - Clamping spring material -- Chrome-Nickel spring steel (CrNi)|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Silver|Material data - Fire load -- 0.878MJ|Material data - Actuator color -- orange|Material data - Weight -- 49.4g|Environmental requirements - Limit temperature range -- -60...+120°C|Environmental requirements - Processing temperature -- -35...+60°C|Commercial data - eClass 10.0 -- 27-14-11-06|Commercial data - eClass 9.0 -- 27-14-11-06|Commercial data - ETIM 9.0 -- EC001284|Commercial data - ETIM 8.0 -- EC001284|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 20 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- PL|Commercial data - GTIN -- 4055143748988|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Cabling systems
• Level 2 category: Connectors & Inserts

Commercial data

• Country of origin: PL
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4055143748988
• Packaging type: box
• PU (SPU): 20 pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Lever
• Connection 1 - Conductor entry direction to mating direction: 0°
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.75 … 25 mm² / 18 … 4 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.75 … 16 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.75 … 16 mm²
• Connection 1 - Pole number: 4
• Connection 1 - Solid conductor: 0.75 … 16 mm² / 18 … 4 AWG
• Connection 1 - Strip length: 18 … 20 mm / 0.71 … 0.79 inches
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 4

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 66A
• Ratings per CSA - Rated current CSA (Use Group C): 66A
• Ratings per CSA - Rated voltage CSA (Use Group B): 600V
• Ratings per CSA - Rated voltage CSA (Use Group C): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 76A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 8kV
• Ratings per IEC/EN - Rated voltage (III/2): 1000V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 66A
• Ratings per UL - Rated current UL (Use Group C): 66A
• Ratings per UL - Rated voltage UL (Use Group B): 600V
• Ratings per UL - Rated voltage UL (Use Group C): 600V
• Ratings per UL 1977 - Rated current UL 1977: 85A
• Ratings per UL 1977 - Rated voltage (UL 1977): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +120 °C
• Processing temperature: -35 … +60 °C

Material data

• Actuator color: orange
• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: light gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Silver
• Fire load: 0.878MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polybutylene terephthalate (PBT)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 49.4g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical data

• Depth: 50.6 mm / 1.992 inches
• Height: 29.1 mm / 1.146 inches
• Pin spacing: 10.16 mm / 0.4 inches
• Width: 41.94 mm / 1.651 inches

Plug-in connection

• Connector (connection type): for conductor
• Contact type (pluggable connector): Male connector/plug
• Locking of plug-in connection: none
• Mismating protection: Yes
• Plugging without loss of pin spacing: No
