Wago - 831-3643

WAGO component - equivalent to 8313643

Specifications

• Primary brand: WAGO
• GTIN code: 4066966133264
• Order code / Manufacturer SKU: 831-3643
• Manufacturer product status: Commercialized
• Equivalent to: 8313643
• EAN code: 4066966133264

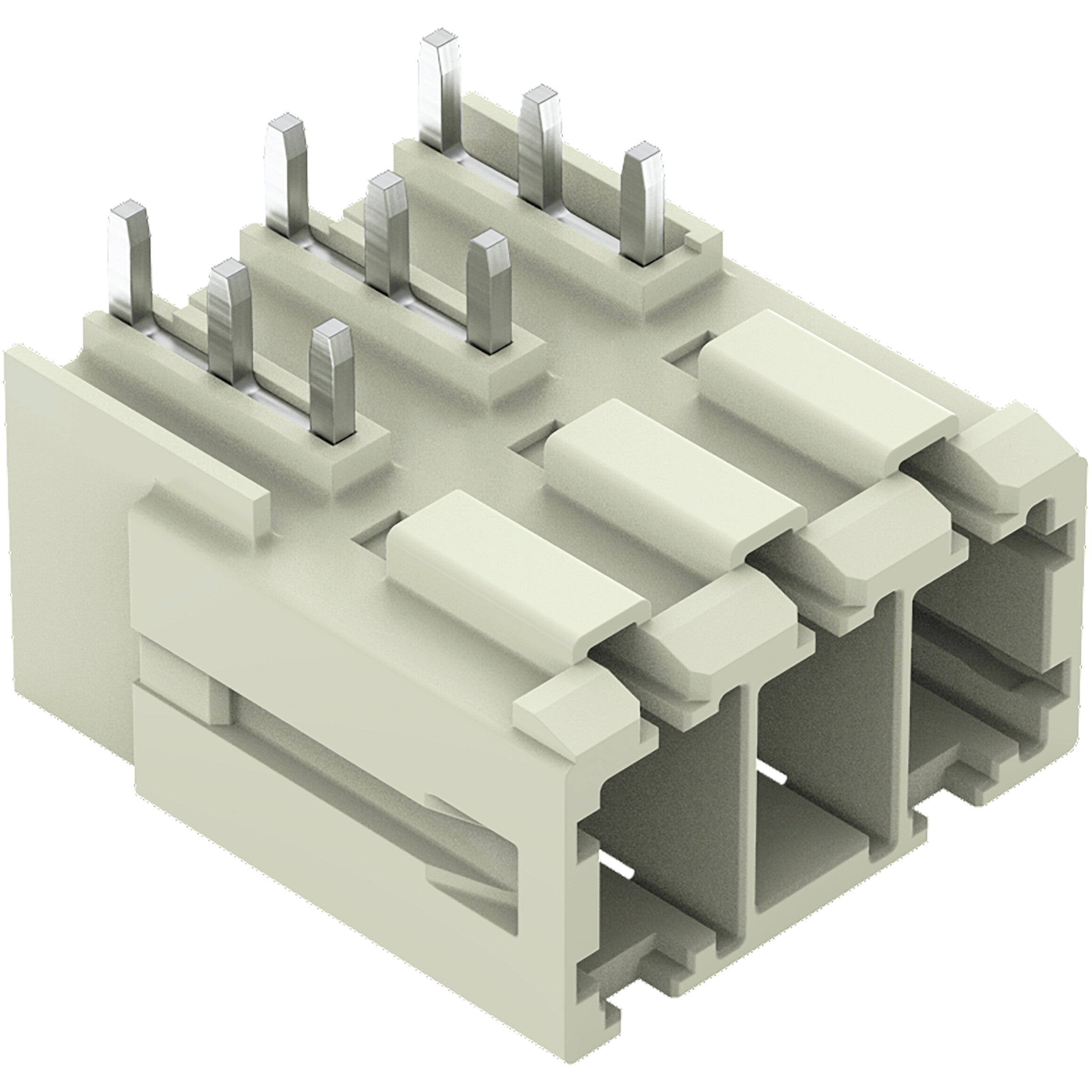

• Manufacturer description: THT male header; 1 x 1.2mm solder pin; angled; 100% protected against mismating; Pin spacing 7.62mm; 3-pole; light gray
• Location of origin: Germany
• Manufacturer product specifications: Notes - Safety Information -- The MCS - MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended; these connectors must not be connected/disconnected when live or under load.When used as intended; these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins; which can be touched; are not live when unmated.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/EN 60664-1|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 500V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 6kV|Electrical data - Ratings per IEC/EN - Rated voltage (III/2) -- 630V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III/2) -- 6kV|Electrical data - Ratings per IEC/EN - Nominal voltage (II/2) -- 1000V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (II/2) -- 6kV|Electrical data - Ratings per IEC/EN - Rated current -- 41A|Electrical data - Ratings per IEC/EN - Legend (ratings) -- (III / 2) Overvoltage category III / Pollution degree 2|Electrical data - Ratings per UL - Approvals per -- UL 1059|Electrical data - Ratings per UL - Rated voltage UL (Use Group C) -- 300V|Electrical data - Ratings per UL - Rated current UL (Use Group C) -- 42A|Electrical data - Ratings per UL - Rated voltage UL (Use Group D) -- 600V|Electrical data - Ratings per UL - Rated current UL (Use Group D) -- 5A|Electrical data - Ratings per CSA - Approvals per -- CSA|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group C) -- 300V|Electrical data - Ratings per CSA - Rated current CSA (Use Group C) -- 41A|Electrical data - Ratings per CSA - Rated voltage CSA (Use Group D) -- 600V|Electrical data - Ratings per CSA - Rated current CSA (Use Group D) -- 5A|Connection data - Total number of potentials -- 3|Connection data - Number of connection types -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Pole number -- 3|Physical data - Pin spacing -- 7.62mm / 0.3"|Physical data - Solder pin length -- 4mm|Physical data - Solder pin dimensions -- 1 x 1.2mm|Physical data - Drilled hole diameter with tolerance -- 1.7 ^(+0.1)mm|Mechanical data - Variable coding -- Yes|Mechanical data - Anti-rotation protection -- Yes|Plug-in connection - Contact type (pluggable connector) -- Male connector/plug|Plug-in connection - Connector (connection type) -- for PCB|Plug-in connection - Mismating protection -- Yes|Plug-in connection - Plugging without loss of pin spacing -- No|Plug-in connection - Mating direction to the PCB -- 180°|Plug-in connection - Locking of plug-in connection -- none|PCB contact - PCB contact -- THT|PCB contact - Solder pin arrangement -- over the entire male connector (in-line)|PCB contact - Number of solder pins per potential -- 3|Material data - Color -- light gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Contact material -- Electrolytic Copper (E_Cu)|Material data - Contact plating -- Tin|Material data - Fire load -- 0.146MJ|Material data - Weight -- 8.8g|Environmental requirements - Limit temperature range -- -60...+105°C|Environmental requirements - Processing temperature -- -35...+60°C|Environmental requirements - Environmental Testing (Environmental Conditions) - Test specification / Railway applications - / Rolling stock - / Electronic equipment -- DIN EN 50155 (VDE 0115-200)2022-06|Environmental requirements - Environmental Testing (Environmental Conditions) - Test procedure / Railway applications - / Rolling stock equipment - / Shock and vibration tests -- DIN EN 61373 (VDE 0115-0106)2011-04|Environmental requirements - Environmental Testing (Environmental Conditions) - Spectrum/Installation location -- Service life test; Category 1; Class A/B|Environmental requirements - Environmental Testing (Environmental Conditions) - Function test with noise-like vibration -- Test passed according to Section 8 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Frequency -- f₁ = 5Hz to f₂ = 150Hz|Environmental requirements - Environmental Testing (Environmental Conditions) - Acceleration -- 0.101g (highest test level used for all axes) / 0.572g (highest test level used for all axes) / 5g (highest test level used for all axes)|Environmental requirements - Environmental Testing (Environmental Conditions) - Test duration per axis -- 10 min. / 5 h|Environmental requirements - Environmental Testing (Environmental Conditions) - Test directions -- X; Y and Z axes|Environmental requirements - Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration -- Test passed according to Section 9 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Monitoring for contact faults/interruptions -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Extended test scope Voltage drop measurement before and after each axis -- Passed|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock test -- Test passed according to Section 10 of the standard|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock form -- Half sine|Environmental requirements - Environmental Testing (Environmental Conditions) - Shock duration -- 30ms|Environmental requirements - Environmental Testing (Environmental Conditions) - Number of shocks per axis -- 3 pos. und 3 neg.|Environmental requirements - Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment -- Passed|Commercial data - ETIM 9.0 -- EC002637|Commercial data - ETIM 8.0 -- EC002637|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 48 pcs|Commercial data - Packaging type -- Box|Commercial data - Country of origin -- DE|Commercial data - GTIN -- 4066966133264|Commercial data - Customs tariff number -- 85366930000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: DE
• Customs tariff number: 85366930000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002637
• ETIM 9.0: EC002637
• GTIN: 4066966133264
• Packaging type: Box
• PU (SPU): 48 pcs

Connection data

• Connection 1 - Pole number: 3
• Number of connection types: 1
• Number of levels: 1
• Total number of potentials: 3

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group C): 41A
• Ratings per CSA - Rated current CSA (Use Group D): 5A
• Ratings per CSA - Rated voltage CSA (Use Group C): 300V
• Ratings per CSA - Rated voltage CSA (Use Group D): 600V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 1000V
• Ratings per IEC/EN - Nominal voltage (III/3): 500V
• Ratings per IEC/EN - Rated current: 41A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 6kV
• Ratings per IEC/EN - Rated voltage (III/2): 630V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group C): 42A
• Ratings per UL - Rated current UL (Use Group D): 5A
• Ratings per UL - Rated voltage UL (Use Group C): 300V
• Ratings per UL - Rated voltage UL (Use Group D): 600V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Environmental Testing (Environmental Conditions) - Acceleration: 0.101g (highest test level used for all axes)|0.572g (highest test level used for all axes)|5g (highest test level used for all axes)
• Environmental Testing (Environmental Conditions) - Extended test scope: Monitoring for contact faults/interruptions: Passed|Passed
• Environmental Testing (Environmental Conditions) - Extended test scope: Voltage drop measurement before and after each axis: Passed|Passed
• Environmental Testing (Environmental Conditions) - Frequency: f₁ = 5 Hz to f₂ = 150 Hz|f₁ = 5 Hz to f₂ = 150 Hz
• Environmental Testing (Environmental Conditions) - Function test with noise-like vibration: Test passed according to Section 8 of the standard
• Environmental Testing (Environmental Conditions) - Monitoring for contact faults/interruptions: Passed
• Environmental Testing (Environmental Conditions) - Number of shocks per axis: 3 pos. und 3 neg.
• Environmental Testing (Environmental Conditions) - Shock duration: 30 ms
• Environmental Testing (Environmental Conditions) - Shock form: Half sine
• Environmental Testing (Environmental Conditions) - Shock test: Test passed according to Section 10 of the standard
• Environmental Testing (Environmental Conditions) - Simulated service life test through increased levels of noise-like vibration: Test passed according to Section 9 of the standard
• Environmental Testing (Environmental Conditions) - Spectrum/Installation location: Service life test, Category 1, Class A/B
• Environmental Testing (Environmental Conditions) - Test directions: X, Y and Z axes|X, Y and Z axes|X, Y and Z axes
• Environmental Testing (Environmental Conditions) - Test duration per axis: 10 min.|5 h
• Environmental Testing (Environmental Conditions) - Test procedure
  Railway applications –
  Rolling stock equipment –
  Shock and vibration tests: DIN EN 61373 (VDE 0115-0106):2011-04
• Environmental Testing (Environmental Conditions) - Test specification
  Railway applications –
  Rolling stock –
  Electronic equipment: DIN EN 50155 (VDE 0115-200):2022-06
• Environmental Testing (Environmental Conditions) - Vibration and shock stress for rolling stock equipment: Passed
• Environmental Testing (Environmental Conditions) - Voltage drop measurement before and after each axis: Passed
• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Color: light gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.146MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 8.8g

Mechanical data

• Anti-rotation protection: Yes
• Variable coding: Yes

Notes

• Safety Information: The MCS – MULTI CONNECTION SYSTEM includes connectors without breaking capacity in accordance with DIN EN 61984. When used as intended, these connectors must not be connected/disconnected when live or under load.When used as intended, these connectors must not be connected/disconnected when live or under load. The circuit design should ensure header pins, which can be touched, are not live when unmated.
• Variants:: Other pole numbers|Protection against PCB mounting errors|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

PCB contact

• Number of solder pins per potential: 3
• PCB contact: THT
• Solder pin arrangement: over the entire male connector (in-line)

Physical data

• Drilled hole diameter with tolerance: 1.7 ^(+0.1) mm
• Pin spacing: 7.62 mm / 0.3 inches
• Solder pin dimensions: 1 x 1.2 mm
• Solder pin length: 4mm

Plug-in connection

• Connector (connection type): for PCB
• Contact type (pluggable connector): Male connector/plug
• Locking of plug-in connection: none
• Mating direction to the PCB: 180°
• Mismating protection: Yes
• Plugging without loss of pin spacing: No
