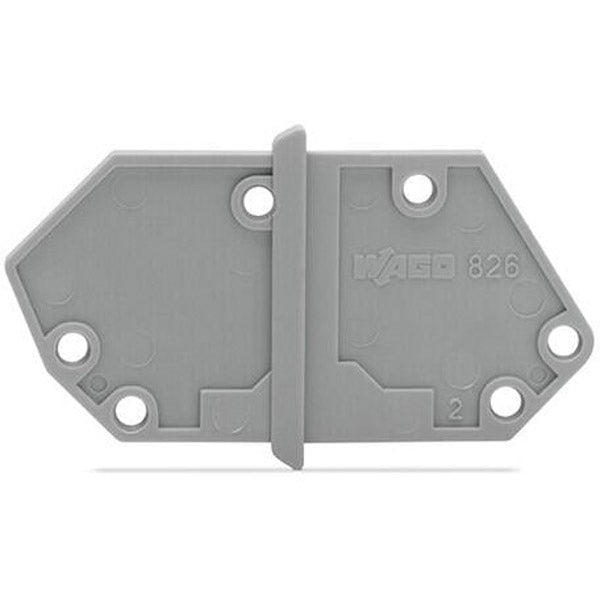

Wago - 826-158

End plate - WAGO (826 series) - Gray color (1.5mm width) - equivalent to 826158

Specifications

• Primary brand: WAGO
• Functions: End plate
• Color: Gray
• Dimensions: H20mm x W1.5mm x D42.5mm
• Net Width (mm): 1.5mm
• Material: Polyamide (PA) 66
• ETIM code: EC000886
• GTIN code: 4017332607193
• Customs Tariff Number: 85389099990
• eClass code: 27-14-11-33
• Order code / Manufacturer SKU: 826-158
• Manufacturer product status: Commercialized
• Equivalent to: 826158
• EAN code: 4017332607193
• Compliant with standard(s): Approvals for marine applications|- LR - Lloyds Register - IEC 61984 - certificate 96/20035 (E5)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Product title: End plate - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85389099990
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-33
• eCl@ss 9.0: 27-14-11-33
• ETIM 8.0: EC000886
• ETIM 9.0: EC000886
• GTIN: 4017332607193
• Packaging type: box
• Product Group: 4 (Printed Circuit Connectors)
• PU (SPU): 100 (25) pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: gray
• Fire load: 0.058MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 0.9g

Mechanical data

• Mounting type: snap-on type

Physical data

• Depth: 42.5 mm / 1.673 inches
• Height: 20 mm / 0.787 inches
• Width: 1.5 mm / 0.059 inches
