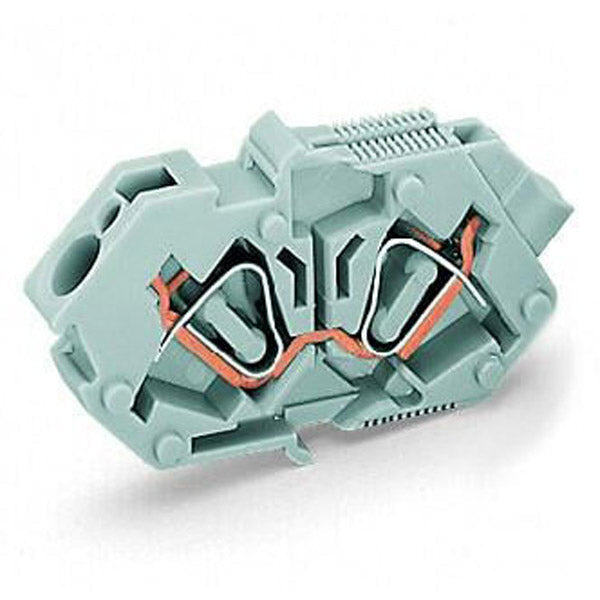

Wago - 826-160

Feed-through/thru center terminal block with 1-deck/level + ground contact - pin spacing 7mm - WAGO (826 series) - Gray - 1 feed-through pole (1P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 0.08mm2...4mm2 / for #28AWG...#12AWG - Rated current 32A - with CAGE CLAMP spring connections - Through-door mounting mounting - equivalent to 826160

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru center terminal block
• Design: 1-deck/level|ground contact|pin spacing 7mm
• Poles: 1 feed-through pole (1P)
• Temperature: Processing temperature -35°C...+60°C
• Rated current: (IEC) 32A|(UL) 20A|(CSA) 20A
• Color: Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 320V|(UL) 300V|(CSA) 300V
• Rated impulse voltage (Uimp): (IEC) 4kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 0.08mm2...4mm2 fine stranded or solid conductors|for 0.25mm2...2.5mm2 fine stranded conductors with insulated ferrule|for #28AWG...#12AWG fine stranded or solid conductors
• Mounting mode: Through-door mounting
• Dimensions: H23.55mm x W7mm x D42.5mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-06
• ETIM code: EC001284
• GTIN code: 4044918532631
• Customs Tariff Number: 85369010000
• Order code / Manufacturer SKU: 826-160
• Manufacturer product status: Commercialized
• Equivalent to: 826160
• EAN code: 4044918532631
• Compliant with standard(s): General approvals|- CCA - DEKRA Certification B.V. - certificate 2160584.32|- CCA - DEKRA Certification B.V. - certificate NTR NL-7136|- UL - UL International Germany GmbH - UL 1059 - certificate E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|Approvals for marine applications|- ABS - American Bureau of Shipping - EN 60947 - certificate 20-HG1941090-PDA|- DNV GL - Det Norske Veritas Germanischer Lloyd - certificate TAE00001V2|- LR - Lloyds Register - IEC 61984 - certificate 96/20035 (E5)|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru center terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-06
• eCl@ss 9.0: 27-14-11-06
• ETIM 8.0: EC001284
• ETIM 9.0: EC001284
• GTIN: 4044918532631
• Packaging type: box
• Product Group: 4 (Printed Circuit Connectors)
• PU (SPU): 50 (25) pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Fine-stranded conductor; with insulated ferrule: 0.25 … 2.5 mm²
• Connection 1 - Fine-stranded conductor; with uninsulated ferrule: 0.25 … 2.5 mm²
• Connection 1 - Pole number: 1
• Connection 1 - Solid conductor: 0.08 … 4 mm² / 28 … 12 AWG
• Connection 1 - Strip length: 9 … 10 mm / 0.35 … 0.39 inches
• Number of connection types: 2
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per CSA - Approvals per: CSA
• Ratings per CSA - Rated current CSA (Use Group B): 20A
• Ratings per CSA - Rated current CSA (Use Group C): 20A
• Ratings per CSA - Rated current CSA (Use Group D): 10A
• Ratings per CSA - Rated voltage CSA (Use Group B): 300V
• Ratings per CSA - Rated voltage CSA (Use Group C): 150V
• Ratings per CSA - Rated voltage CSA (Use Group D): 300V
• Ratings per IEC/EN - Legend (ratings): (III / 2) ≙ Overvoltage category III / Pollution degree 2
• Ratings per IEC/EN - Nominal voltage (II/2): 630V
• Ratings per IEC/EN - Nominal voltage (III/3): 320V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (II/2): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 4kV
• Ratings per IEC/EN - Rated impulse withstand voltage (III/2): 4kV
• Ratings per IEC/EN - Rated voltage (III/2): 320V
• Ratings per IEC/EN - Ratings per: IEC/EN 60664-1
• Ratings per IEC/EN – Notes - Ratings (note): Suitable for neutral-grounded, three-phase, 4-wire systems rated at 400 V (conductor-to-conductor) per IEC/EN 60664-1.
• Ratings per UL - Approvals per: UL 1059
• Ratings per UL - Rated current UL (Use Group B): 20A
• Ratings per UL - Rated current UL (Use Group C): 20A
• Ratings per UL - Rated current UL (Use Group D): 10A
• Ratings per UL - Rated voltage UL (Use Group B): 300V
• Ratings per UL - Rated voltage UL (Use Group C): 150V
• Ratings per UL - Rated voltage UL (Use Group D): 300V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Limit temperature range: -60 … +105 °C
• Processing temperature: -35 … +60 °C

Material data

• Clamping spring material: Chrome-nickel spring steel (CrNi)
• Color: gray
• Contact material: Electrolytic copper (E_Cu)
• Contact plating: Tin
• Fire load: 0.11MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 4.5g

Mechanical data

• Housing sheet thickness: 1 … 4 mm / 0.039 … 0.157 inches
• Mounting type: Locking claw|Feed-through mounting

Notes

• Variants:: Other pole numbers|Other colors|Direct marking|Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Physical data

• Depth: 42.5 mm / 1.673 inches
• Height: 23.55 mm / 0.927 inches
• Pin spacing: 7 mm / 0.276 inches
• Width: 7 mm / 0.276 inches
