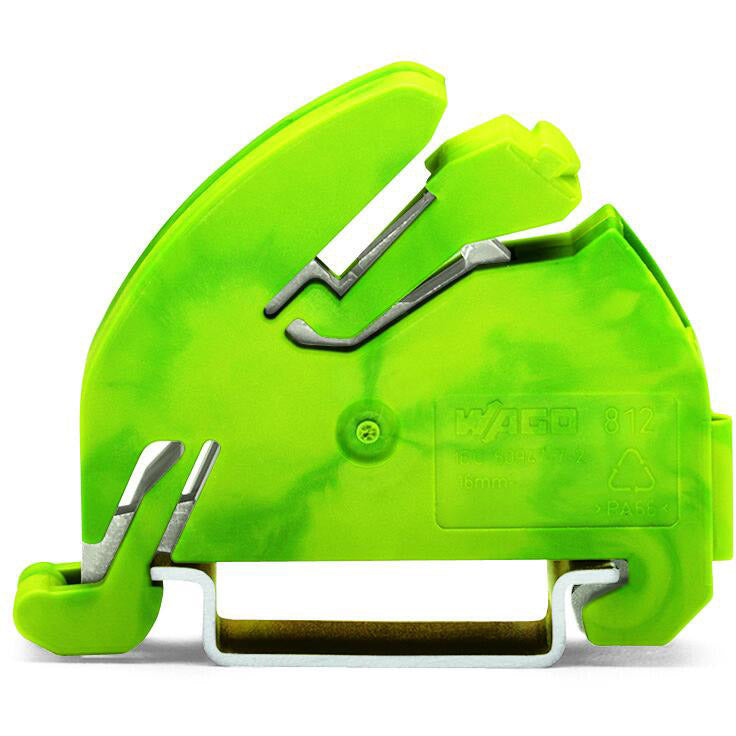

Wago - 812-141

Ground busb. carrier - WAGO (812 series) - Green-Yellow color - Dimensions H54.5mm x W11mm x D36mm - equivalent to 812141

Specifications

• Primary brand: WAGO
• Functions: Ground busb. carrier
• Temperature: Continuous operating temperature -35°C...+85°C
• Color: Green-Yellow
• Dimensions: H54.5mm x W11mm x D36mm
• Material: Polyamide (PA) 66
• eClass code: 27-40-06-07
• ETIM code: EC001166
• GTIN code: 4044918255165
• Customs Tariff Number: 39269097900
• Order code / Manufacturer SKU: 812-141
• Manufacturer product status: Commercialized
• Equivalent to: 812141
• EAN code: 4044918255165
• Compliant with standard(s): General approvals|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate 20160630-E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Germany
• Level 1 category: Automation components
• Product title: Ground busb. carrier - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 39269097900
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-40-06-07
• eCl@ss 9.0: 27-40-06-07
• ETIM 8.0: EC001166
• ETIM 9.0: EC001166
• GTIN: 4044918255165
• Packaging type: box
• Product Group: 12 (Matrix Patch Board)
• PU (SPU): 25 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.223MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 20.7g

Physical data

• Depth from upper-edge of DIN-rail: 36 mm / 1.417 inches
• Height: 54.5 mm / 2.146 inches
• Width: 11 mm / 0.433 inches
