Wago - 812-104

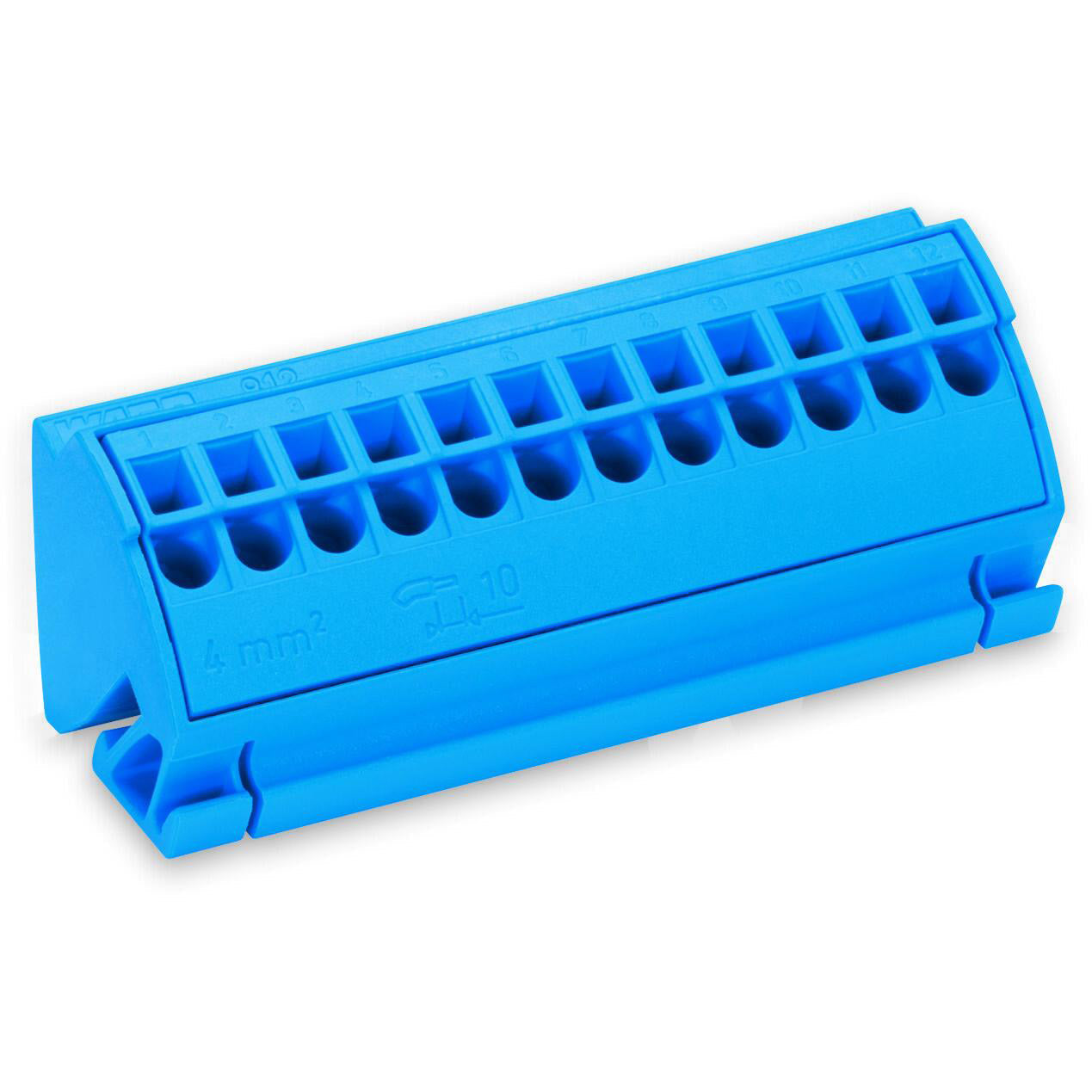

Terminal strip with 1-deck/level - WAGO (812 series) - Blue - Neutral / 12-wires (12 push-in) - for 0.5mm2...4mm2 / for #20AWG...#12AWG - Rated current 96A - with Push-in CAGE CLAMP spring connections - Mounts on a 10x3mm Copper bar mounting - equivalent to 812104

Specifications

• Primary brand: WAGO
• Functions: Terminal strip
• Design: 1-deck/level
• Poles: Neutral
• Temperature: Continuous operating temperature -35°C...+85°C
• Rated current: (IEC) 96A
• Color: Blue
• Connection capacity: 12-wires (12 push-in)
• Rated operating voltage (Ue): (IEC) 1000V
• Rated impulse voltage (Uimp): (IEC) 6kV
• Connection type: Push-in CAGE CLAMP spring connections
• Cross-section: for 0.5mm2...4mm2 fine stranded or solid conductors|for 0.5mm2...4mm2 solid conductors; push-in termination|for #20AWG...#12AWG fine stranded or solid conductors|for #20AWG...#12AWG solid conductors; push-in termination
• Mounting mode: Mounts on a 10x3mm Copper bar
• Dimensions: H30mm x W75mm x D27.5mm
• Material: Polyamide (PA) 66
• GTIN code: 4044918253291
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-46
• ETIM code: EC000001
• Order code / Manufacturer SKU: 812-104
• Manufacturer product status: Commercialized
• Equivalent to: 812104
• EAN code: 4044918253291
• Compliant with standard(s): General approvals|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate 20160630-E45172|Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|- UK-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Terminal strip - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-46
• eCl@ss 9.0: 27-14-11-46
• ETIM 8.0: EC000001
• ETIM 9.0: EC000001
• GTIN: 4044918253291
• Packaging type: box
• Product Group: 12 (Matrix Patch Board)
• PU (SPU): 10 pcs

Connection data

• Clamping units: 12
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: Push-in CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Solid conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Solid conductor; push-in termination: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Stranded conductor: 0.5 … 4 mm² / 20 … 12 AWG
• Connection 1 - Strip length: 11 mm / 0.43 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• Ratings per IEC/EN - Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3
• Ratings per IEC/EN - Nominal voltage (III/3): 1000V
• Ratings per IEC/EN - Rated current: 96A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 6kV
• Ratings per IEC/EN – Notes - Rated current (note): Current carrying capacity: With a maximum total current of 96 A, the clamping units of the busbar terminal block can be loaded with the rated current of the conductor cross-sections approved. This only applies when (10 x 3) mm busbars are used.

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C

Material data

• Color: blue
• Fire load: 0.89MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 35.7g

Physical data

• Depth: 27.5 mm / 1.083 inches
• Height: 30 mm / 1.181 inches
• Width: 75 mm / 2.953 inches
