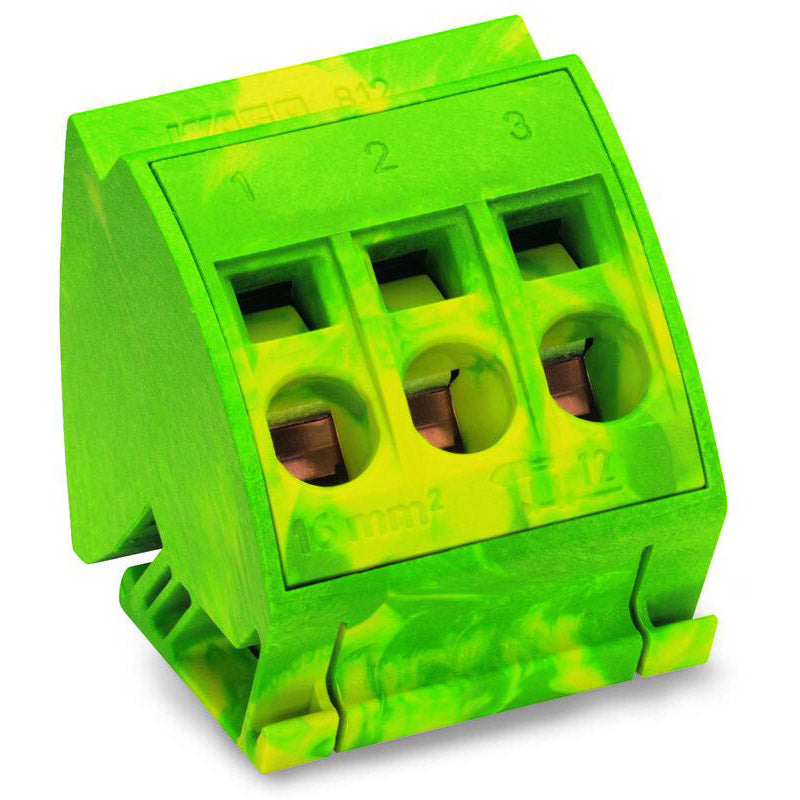

Wago - 812-110

Ground/earthing terminal strip with 1-deck/level - WAGO (812 series) - Green-Yellow - Protective-earth (PE) / 3-wires (3 clamps) - for 1.5mm2...16mm2 / for #14AWG...#6AWG - with CAGE CLAMP spring connections - Mounts on a 10x3mm Copper bar mounting - equivalent to 812110

Specifications

• Primary brand: WAGO
• Functions: Ground/earthing terminal strip
• Design: 1-deck/level
• Poles: Protective-earth (PE)
• Temperature: Continuous operating temperature -35°C...+85°C
• Color: Green-Yellow
• Connection capacity: 3-wires (3 clamps)
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 1.5mm2...16mm2 fine stranded or solid conductors|for #14AWG...#6AWG fine stranded or solid conductors
• Mounting mode: Mounts on a 10x3mm Copper bar
• Dimensions: H42.5mm x W38mm x D43.5mm
• Material: Polyamide (PA) 66
• Customs Tariff Number: 85369010000
• eClass code: 27-14-11-46
• ETIM code: EC000001
• GTIN code: 4045454014889
• Order code / Manufacturer SKU: 812-110
• Manufacturer product status: Commercialized
• Equivalent to: 812110
• EAN code: 4045454014889
• Compliant with standard(s): General approvals|- UL - Underwriters Laboratories Inc. - UL 1059 - certificate 20160630-E45172|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: Poland
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Ground/earthing terminal strip - 1-deck/level - WAGO

Commercial data

• Country of origin: PL
• Customs tariff number: 85369010000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-46
• eCl@ss 9.0: 27-14-11-46
• ETIM 8.0: EC000001
• ETIM 9.0: EC000001
• GTIN: 4045454014889
• Packaging type: box
• Product Group: 12 (Matrix Patch Board)
• PU (SPU): 12 pcs

Connection data

• Clamping units: 3
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 1.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Solid conductor: 1.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Strip length: 12 mm / 0.47 inches
• Connection 1 - Wiring direction: Front-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C

Material data

• Color: green-yellow
• Fire load: 0.869MJ
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 42.7g

Physical data

• Depth: 43.5 mm / 1.713 inches
• Height: 42.5 mm / 1.673 inches
• Width: 38 mm / 1.496 inches
