Wago - 811-320

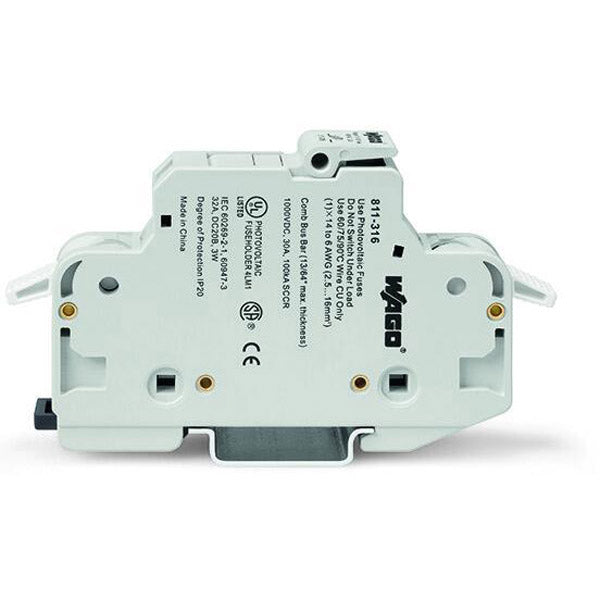

Feed-through/thru terminal block with 1-deck/level + fused-disconnect (10x38mm) - WAGO (811 series) - Light Gray - 2 feed-through poles (2P) / 2-wires (1 clamp + 1 clamp) (1+1) - for 2.5mm2...16mm2 / for #16AWG...#6AWG - Rated current 32A - with CAGE CLAMP spring connections - DIN-35 rail (35 x 15 / 35 x 7.5) mounting (35mm width) - equivalent to 811320

Specifications

• Primary brand: WAGO
• Functions: Feed-through/thru terminal block
• Design: 1-deck/level|fused-disconnect (10x38mm)|side/lateral wire entry
• Poles: 2 feed-through poles (2P)
• Temperature: Processing temperature -35°C...+85°C|Continuous operating temperature -35°C...+85°C
• Rated current: (IEC) 32A|(UL) 30A|(CSA) 30A
• Color: Light Gray
• Connection capacity: 2-wires (1 clamp + 1 clamp) (1+1)
• Rated operating voltage (Ue): (IEC) 690V|(IEC) 1000V|(UL) 750/1000V|(CSA) 600/1000V
• Rated impulse voltage (Uimp): (IEC) 8kV
• Connection type: CAGE CLAMP spring connections
• Cross-section: for 2.5mm2...16mm2 fine stranded or solid conductors|for #16AWG...#6AWG fine stranded conductors|for #14AWG...#6AWG solid conductors
• Mounting mode: DIN-35 rail (35 x 15 / 35 x 7.5)
• Dimensions: H105mm x W35mm x D55mm
• Net Width (mm): 35mm
• Material: Polyamide (PA) 66
• eClass code: 27-14-11-16
• Customs Tariff Number: 85369095000
• GTIN code: 4055143101981
• ETIM code: EC002705
• Order code / Manufacturer SKU: 811-320
• Manufacturer product status: Commercialized
• Equivalent to: 811320
• EAN code: 4050821508076
• Compliant with standard(s): Declarations of conformity and manufacturer's declarations|- EU-Declaration of Conformity - WAGO GmbH & Co. KG|RoHS compliant|material group I|V-0 flammability rating
• Location of origin: China
• Level 1 category: Electrical components
• Level 2 category: Terminal blocks
• Product title: Feed-through/thru terminal block - 1-deck/level - WAGO

Commercial data

• Country of origin: CN
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-16
• eCl@ss 9.0: 27-14-11-16
• ETIM 8.0: EC002705
• ETIM 9.0: EC002705
• GTIN: 4055143101981
• Packaging type: box
• PU (SPU): 6 (1) pcs

Connection data

• Clamping units: 4
• Connection 1 - Actuation type: Operating tool
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 2.5 … 16 mm² / 16 … 6 AWG
• Connection 1 - Pole number: 2
• Connection 1 - Solid conductor: 2.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 2

Electrical data

• General information - Fuse receptacle: pluggable
• General information - Fuse type: Cylindrical fuse; 10 x 38 mm
• General information - Voltage type 1: AC
• General information - Voltage type 2: DC
• Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement): 3W
• Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement): 3W
• Power Loss - Power loss P_l max. short-circuit protection (group arrangement): 3W
• Power Loss - Power loss P_l max. short-circuit protection (individual arrangement): 3W
• Ratings per CSA - Approvals per: CSA 22.2
• Ratings per CSA - Rated current (CSA): 30A
• Ratings per CSA - Rated voltage (CSA): 600V
• Ratings per CSA - Rated voltage CSA 2: 1,000V
• Ratings per IEC/EN - Blown fuse indication: without blown fuse indication
• Ratings per IEC/EN - Nominal voltage (III/3): 690V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/HD 60269-2
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are specified in the technical data of both fuse terminal block and fuse. When selecting glass cartridge fuses, make sure that the listed power loss is not exceeded.
• Ratings per IEC/EN 2 - Rated voltage (III/3): 1000V
• Ratings per UL - Approvals per: UL 4248-1
• Ratings per UL - Rated current UL: 30A
• Ratings per UL - Rated voltage (UL 2): 1,000V
• Ratings per UL - Rated voltage (UL): 750V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -35 … +85 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: light gray
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 1.1g

Mechanical data

• Mounting (note): The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out.
• Mounting type: DIN-35 rail

Notes

• Safety Information: The fuse holder must not be opened under load.

Physical data

• Depth from upper-edge of DIN-rail: 55 mm / 2.165 inches
• Height: 105 mm / 4.134 inches
• Width: 35 mm / 1.378 inches
