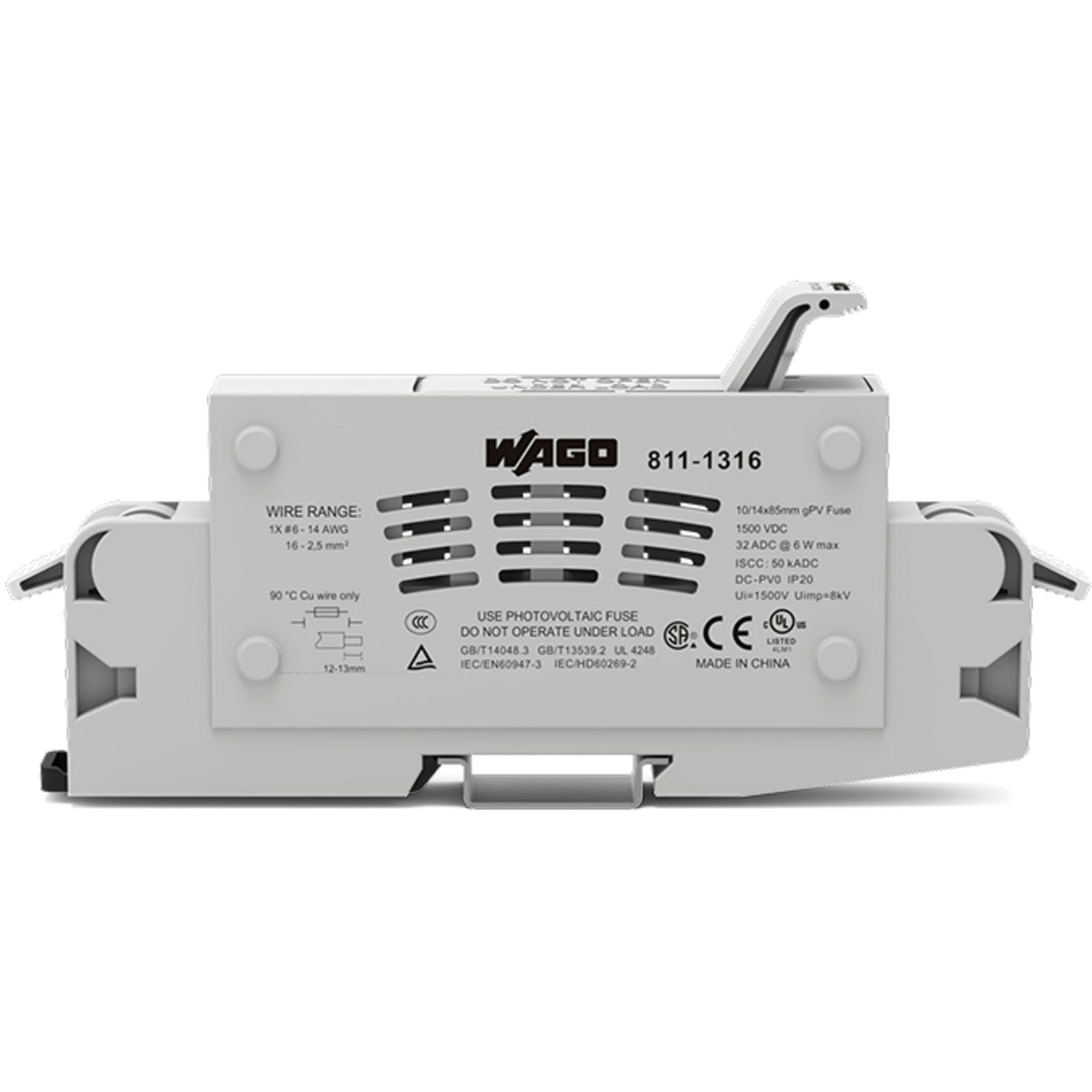

Wago - 811-1316

WAGO component - equivalent to 8111316

Specifications

• Primary brand: WAGO
• GTIN code: 4055144071092
• Order code / Manufacturer SKU: 811-1316
• Manufacturer product status: Commercialized
• Equivalent to: 8111316
• EAN code: 4055144071092
• Manufacturer description: 2-conductor fuse holder ; with pivoting fuse holder; with test option; for cylindrical fuses 10/14 x 85mm; for photovoltaic applications; 1-pole; 1500Vdc; for DIN-rail 35 x 15 and 35 x 7.5; 16mm2; CAGE CLAMP; 16mm2; light gray
• Location of origin: China
• Manufacturer product specifications: Notes - Safety Information -- The fuse holder must not be opened under load.|Notes - Safety information 2 -- Do not cover the ventilation openings.|Electrical data - Ratings per IEC/EN - Ratings per -- IEC/HD 60269-2|Electrical data - Ratings per IEC/EN - Nominal voltage (III/3) -- 1500V|Electrical data - Ratings per IEC/EN - Rated impulse withstand voltage (III / 3) -- 8kV|Electrical data - Ratings per IEC/EN - Rated current -- 32A|Electrical data - Ratings per IEC/EN - Notes - Ratings (note) -- Electrical ratings are specified in the technical data of both fuse terminal block and fuse. When selecting glass cartridge fuses; make sure that the listed power loss is not exceeded.|Electrical data - Ratings per UL - Approvals per -- UL 4248-19|Electrical data - Ratings per UL - Rated voltage (UL) -- 1500V|Electrical data - Ratings per UL - Rated current UL -- 32A|Electrical data - Ratings per CSA - Approvals per -- CSA 22.2|Electrical data - Ratings per CSA - Rated current (CSA) -- 32A|Electrical data - Ratings per CSA - Rated voltage (CSA) -- 1500V|Electrical data - Power Loss - Power loss P_l (max.) -- 6W|Electrical data - Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement) -- 3W|Electrical data - Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement) -- 3W|Electrical data - Power Loss - Power loss P_l max. short-circuit protection (individual arrangement) -- 3W|Electrical data - Power Loss - Power loss P_l max. short-circuit protection (group arrangement) -- 3W|Electrical data - General information - Voltage type 1 -- DC|Electrical data - General information - Fuse receptacle -- pivoting|Electrical data - General information - Fuse type -- Cylindrical fuse; 10/14 x 85mm; for photovoltaic applications|Connection data - Clamping units -- 2|Connection data - Total number of potentials -- 1|Connection data - Number of levels -- 1|Connection data - Connection 1 - Connection technology -- CAGE CLAMP|Connection data - Connection 1 - Actuation type -- Lever|Connection data - Connection 1 - Connectable conductor materials -- Copper|Connection data - Connection 1 - Solid conductor -- 2.5...16mm2 / 14...6 AWG|Connection data - Connection 1 - Stranded conductor -- 2.5...16mm2 / 14...6 AWG|Connection data - Connection 1 - Fine-stranded conductor -- 2.5...16mm2 / 14...6 AWG|Connection data - Connection 1 - Strip length -- 12...13mm / 0.47...0.51"|Connection data - Connection 1 - Pole number -- 1|Connection data - Connection 1 - Wiring direction -- Side-entry wiring|Physical data - Width -- 22.3mm / 0.878"|Physical data - Height -- 154.9mm / 6.098"|Physical data - Depth from upper-edge of DIN-rail -- 66mm / 2.598"|Mechanical data - Design -- horizontal type|Mechanical data - Mounting type -- DIN-35 rail|Mechanical data - Mounting (note) -- The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out.|Mechanical data - Protection type -- IP20|Material data - Color -- light gray|Material data - Material group -- I|Material data - Insulation material (main housing) -- Polyamide (PA66)|Material data - Flammability class per UL94 -- V0|Material data - Weight -- 78.4g|Environmental requirements - Processing temperature -- -35...+85°C|Environmental requirements - Continuous operating temperature -- -40...+125°C|Commercial data - ETIM 9.0 -- EC002705|Commercial data - ETIM 8.0 -- EC002705|Commercial data - ECCN -- NO US CLASSIFICATION|Commercial data - PU (SPU) -- 12 pcs|Commercial data - Packaging type -- box|Commercial data - Country of origin -- CN|Commercial data - GTIN -- 4055144071092|Commercial data - Customs tariff number -- 85369095000|Environmental Product Compliance - RoHS Compliance Status -- Compliant;No Exemption
• Level 1 category: Electrical components

Commercial data

• Country of origin: CN
• Customs tariff number: 85369095000
• ECCN: NO US CLASSIFICATION
• ETIM 8.0: EC002705
• ETIM 9.0: EC002705
• GTIN: 4055144071092
• Packaging type: box
• PU (SPU): 12 pcs

Connection data

• Clamping units: 2
• Connection 1 - Actuation type: Lever
• Connection 1 - Connectable conductor materials: Copper
• Connection 1 - Connection technology: CAGE CLAMP^®
• Connection 1 - Fine-stranded conductor: 2.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Pole number: 1
• Connection 1 - Solid conductor: 2.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Stranded conductor: 2.5 … 16 mm² / 14 … 6 AWG
• Connection 1 - Strip length: 12 … 13 mm / 0.47 … 0.51 inches
• Connection 1 - Wiring direction: Side-entry wiring
• Number of levels: 1
• Total number of potentials: 1

Electrical data

• General information - Fuse receptacle: pivoting
• General information - Fuse type: Cylindrical fuse; 10/14 x 85 mm; for photovoltaic applications
• General information - Voltage type 1: DC
• Power Loss - Power loss P_l (max.): 6W
• Power Loss - Power loss P_l max. overload and short-circuit protection (group arrangement): 3W
• Power Loss - Power loss P_l max. overload and short-circuit protection (individual arrangement): 3W
• Power Loss - Power loss P_l max. short-circuit protection (group arrangement): 3W
• Power Loss - Power loss P_l max. short-circuit protection (individual arrangement): 3W
• Ratings per CSA - Approvals per: CSA 22.2
• Ratings per CSA - Rated current (CSA): 32A
• Ratings per CSA - Rated voltage (CSA): 1,500V
• Ratings per IEC/EN - Nominal voltage (III/3): 1500V
• Ratings per IEC/EN - Rated current: 32A
• Ratings per IEC/EN - Rated impulse withstand voltage (III / 3): 8kV
• Ratings per IEC/EN - Ratings per: IEC/HD 60269-2
• Ratings per IEC/EN – Notes - Ratings (note): Electrical ratings are specified in the technical data of both fuse terminal block and fuse. When selecting glass cartridge fuses, make sure that the listed power loss is not exceeded.
• Ratings per UL - Approvals per: UL 4248-19
• Ratings per UL - Rated current UL: 32A
• Ratings per UL - Rated voltage (UL): 1,500V

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Environmental requirements

• Continuous operating temperature: -40 … +125 °C
• Processing temperature: -35 … +85 °C

Material data

• Color: light gray
• Flammability class per UL94: V0
• Insulation material (main housing): Polyamide (PA66)
• Material group: I
• Note (material data):
  Information on material specifications can be found here

• Weight: 78.4g

Mechanical data

• Design: horizontal type
• Mounting (note): The fixed foot of the fuse terminal block must face upwards so that the fuse cannot fall out.
• Mounting type: DIN-35 rail
• Protection type: IP20

Notes

• Safety Information: The fuse holder must not be opened under load.
• Safety information 2: Do not cover the ventilation openings.

Physical data

• Depth from upper-edge of DIN-rail: 66 mm / 2.598 inches
• Height: 154.9 mm / 6.098 inches
• Width: 22.3 mm / 0.878 inches
