Wago - 793-5566

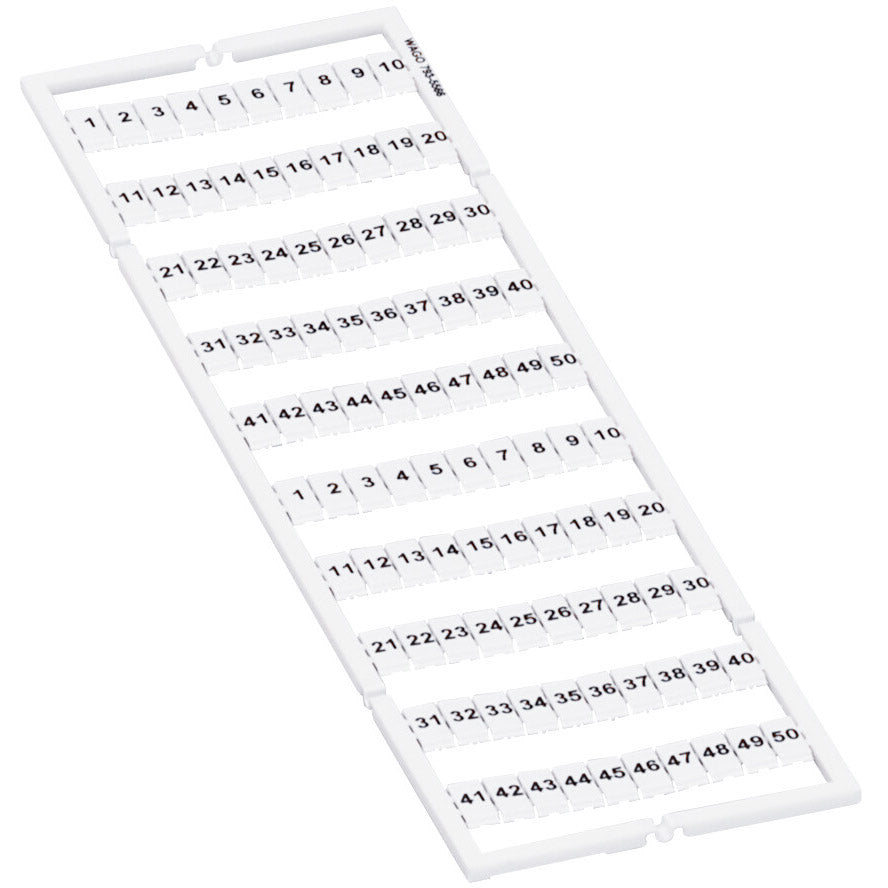

Labeled WMB marking card - horizontal marking - stretchable - with numbers "1-50" marking - WAGO (793 series) - White color - Snap-on mounting - contains 100 labels per card (10 strips x 10 labels per strip) - compatible with 5mm / 5.2mm-wide term. blck. - equivalent to 7935566

Specifications

• Primary brand: WAGO
• Functions: Labeled WMB marking card
• Design: horizontal marking|stretchable
• Color: White
• Mounting mode: Snap-on
• Material: Halogen-free materials
• Contents: 100 labels per card (10 strips x 10 labels per strip)
• Technical compatibility with: 5mm / 5.2mm-wide term. blck.
• Customs Tariff Number: 49119900000
• GTIN code: 4044918805841
• ETIM code: EC000761
• eClass code: 27-14-11-37
• Order code / Manufacturer SKU: 793-5566
• Manufacturer product status: Commercialized
• Equivalent to: 7935566
• EAN code: 4044918805841
• Compliant with standard(s): RoHS compliant|V-2 flammability rating
• Location of origin: Germany
• Marking: numbers "1-50"
• Level 1 category: Cabling systems
• Level 2 category: Labelling
• Level 3 category: Terminal blocks labelling
• Product title: Labeled WMB marking card - WAGO

Commercial data

• Country of origin: DE
• Customs tariff number: 49119900000
• ECCN: NO US CLASSIFICATION
• eCl@ss 10.0: 27-14-11-37
• eCl@ss 9.0: 27-14-11-37
• ETIM 8.0: EC000761
• ETIM 9.0: EC000761
• GTIN: 4044918805841
• Packaging type: bag
• Product Group: 2 (Terminal Block Accessories)
• PU (SPU): 5 pcs

Environmental Product Compliance

• RoHS Compliance Status: Compliant,No Exemption

Material data

• Color: white
• Fire load: 0.256MJ
• Halogen-free: Yes
• UV resistance: EN 60068-2-5:2010 Procedure B
• Weight: 8.5g

Mechanical data

• Smear resistance: EN 60998-1:2004

Physical data

• Marker width: 5mm
• Marker/strip width: 5 … 5.2 mm

Technical data

• Delivery form: Marker card
• Delivery form configuration: 10 strips with 10 markers per card
• Flammability class per UL94: V2
• Marking: 1 … 50
• Marking (number): 2
• Marking color: black
• Marking differentiation: Consecutive numbers per strip
• Marking direction: Horizontal marking
• Marking method: Thermal transfer
• Marking type: Numbers
